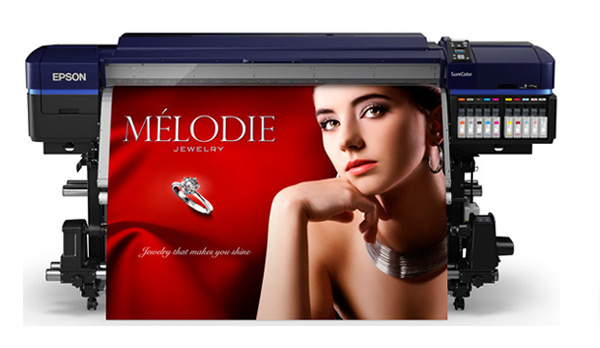

Back catalogue – SureColor S80600 - 64"

  • Superior Performance – produce output quickly with dual printheads, an extended 9 colour ink set, optional white or metal ink.
  • Superior Media Support – supports paper, canvas, vinyl and film stocks, in widths up to 1626 mm and thicknesses up to 1 mm, in rolls up to 45 kg & 250 mm in diameter.
  • Superior Colour – 9 cartridge Epson UltraChrome GS3 ink enables prints with high gloss and a colour gamut PANTONE certified at up to 98%1. Can also be configured with additional white or metallic ink.
  • Superior Print Quality – latest PrecisionCore printhead, new UltraChrome GS3 ink, improved MicroWeave & LUT, self-agitating ink lines, improved paper path with upgraded feed management and a new Advanced Auto Tension Control System.
  • Superior Integration – compact design with flexible networking, suits installation in a wide variety of operational environments, runs off a standard 240 V power supply, and can be driven by a variety of 3rd party RIP applications.
  • Simpler and easier to use – can be loaded by a single operator with Auto Media Set-Up and skew correction, new see-through platen cover with integrated lighting, upgraded control panel and new Epson Control Dashboard management software.
  • Reduced maintenance – new self cleaning printhead and air circulation system with mist extraction.
  • Reduced production costs – uses low cost 700 ml ink cartridges with reduced ink & power consumption, ships with an integrated Auto Take-Up, has an optional print drying system, supports remote management, remote auto status & error reporting.
  • Increased durability – features a strengthened chassis and a new printhead guard, backed by a comprehensive 1 year warranty with optional cover that can be extended up to a total of seven years.

  1. Rated 98.2% Pantone® on ILFORD Nano Solvent Premium Photo Paper Gloss at 1440 x 1440 dpi 36 pass and 96.5% on Avery MPI1105 at 1440 x 1440 dpi 36pass. Results in different print modes and on different media may vary.
SIZE
Max Media Width 64 inch
PRINT TECHNOLOGY
Print Head DUAL PrecisionCore TFP with VSDT & Integrated Headguard
Print Operation Auto Head Alignment, Nozzle Check, Head-Cleaning, Media Setting & Skew Control
Print Modes Uni & Bi-directional
Nozzle Configuration 360 x 2 per colour per head
Maximum resolution 1440 dpi x 1440 dpi
Minimum Ink Droplet Size 4.2 pl
INK TECHNOLOGY
Ink Type Pigment based Solvent
Ink Family Epson Ultrachrome® GS3 & GS3+RED
Colours Either C, M, Y, K, Lc, Lm, Lk, Or, Rd + (optional) Wht or Mtl Standard Cartridges
Or C, M, Y, K, Lc, Lm, Lk 3M MCS Cartridges
Cartridge Capacity 9 x 700 ml + optional 1 x (600 ml Wht or 350 ml Mtl)
PERFORMANCE
Max Speed (9c) 95.1 m²/hr (360 x 360 dpi 1 pass)
Billboard High Speed (9c) 52.3 m²/hr (360 x 720 dpi 2 pass)
Billboard Production (9c) 31.6 m²/hr (720 x 720 dpi 4 pass HS)
Banner Production (9c) 18.2 m²/hr (720 x 720 dpi 6 pass)
Vinyl, Canvas & Paper Production (9c) 13.2 m²/hr (720 x 720 dpi 8 pass)
        + White (1 Layer) 12.5 m²/hr (720 x 720 dpi 8 pass)
        + White (2 Layer) 3.5 m²/hr (720 x 1440 dpi 32 pass)
        + Metal (1 Layer) 4.2 m²/hr (720 x 1440 dpi 20 pass)
        + Metal (2 Layer) 1.9 m²/hr (720 x 1440 dpi 40 pass)
Film Production (9c) 6.8 m²/hr (720 x 1440 dpi 16 pass)
        + White (1 Layer) 6.8 m²/hr (720 x 1440 dpi 16 pass)
        + White (2 Layer) 3.5 m²/hr (720 x 1440 dpi 32 pass)
        + Metal (1 Layer) 4.2 m²/hr (720 x 1440 dpi 20 pass)
        + Metal (2 Layer) 1.9 m²/hr (720 x 1440 dpi 40 pass)
Figures are based on print speed only and do not include provision for image processing time or transmission. Not all print modes are supported by all media and /or RIP software with individual results subject to variation due to a variety of operational, environmental and image specific factors.
MEDIA SUPPORT
Input Format Single Roll with 2" or 3" core, 250 mm max outer diameter & 45 kg max weight
Sizing 300 to 1626 mm wide, 500 mm min length, 1 mm max thickness
Minimum Print Margins 5 mm left & right (10 mm with guides)
Platen Gap 1.6/2.0/2.5 mm
Heater Settings 30° to 50° C Pre & Platen, 30° to 55° C After (all three heaters individually adjustable)
Dryer Settings On/Off/Auto
Output Format Single sheet (manual cut)
Roll (integrated ATU supports 2" or 3" core with 200 mm max outer diameter)
OPERATION
Control Software Epson Edge Dashboard, Epson Communication Driver, Epson LFP Remote Panel 2, Epson NetConfig, Epson NetSetup, Epson NetPrint, Epson Software Updater
Control Panel 2.7” Colour LCD
RIP Compatibility Supplied with Epson Edge Print and supports a wide range of 3rd party applications
Interface High Speed USB 2.0 & Ethernet 100Base-T/1000Base-T
Memory Main: 2 GB, Network: 128 MB
Operational Temp 15° to 35° C (20-32° C recommended)
Operational Humidity 20 to 80% (40 to 60% recommended)
Typical Energy Use 650 W Operating / 380 W Ready/ 14 W Sleep
Power Supply 2 x 100-240 V 5A 50-60 Hz AC, 2640 W Max Peak
Operating Noise 59dB
PHYSICAL
Printer Dimensions & Weight 2,620 x 1,338 x 880 mm (WxHxD), 284 kg
Recommended Operational Space 3,620 x 1,771 x 2,740 mm
Packaging Details (WxHxD) 1 x Head Unit 3,170 x 1021 x 1100 mm, 406 kg
  1 x Media Supply System 3,100 x 607 x 1064 mm, 82 kg
  1 x Starter Ink & Media Pack 1,550 x 350 x 350 mm, 35 kg (approx.)
  (Optional) Print Drying System 1,987 x 232 x 363 mm, 15 kg
WHAT'S IN THE BOX
Printer, Media Supply System (with Stand, Feed and Auto Take-Up), 1 x user maintenance kit, 1 x waste tank, 10 x cleaning carts, 1 x ink set (9 x 700 ml), 1 x roll of Epson Poster Paper, power cables, and set-up guide. Utility software and user manuals provided on CD. RIP software provided on DVD.*

* An internet connection will be required during installation to enable registration, update of disk based software and download of additional utility software. A significant proportion of the included ink and cleaning liquid will be used during the set-up process to clean and prime ink lines while a small amount of media will be required to undertake print testing and confirm correct operation.
CONFIGURATION OPTIONS
SCS806001YR 1Yr On-Site Warranty
SCS806003YR 1 Yr On-Site Wty + 2Yr On-Site CoverPlus (3Yrs Total Cover)**
SCS806005YR 1 Yr On-Site Wty + 2 x 2Yr On-Site CoverPlus (5Yrs Total Cover)**
  warranty details
OPTIONAL ACCESSORIES
1YWSCS80600 1 Year On-Site CoverPlus Service Pack**
2YWSCS80600 2 Year On-Site CoverPlus Service Pack**

** Epson CoverPlus Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia and New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
