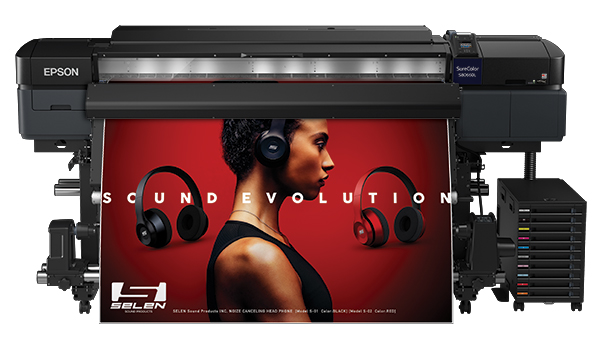

Back catalogue – SureColor S80660L - 64" CISS
- Superior Performance – dual printheads, 15 L Continuous Ink Supply System (CISS), high capacity waste system, high capacity roll loading, high precision Auto Take Up (ATU), and blower style print drying system for efficient roll to roll production with remote status monitoring and job reporting.
- Superior Media Support – compatible with paper, canvas, vinyl and film stocks, in widths up to 1626 mm (64-inch) and thicknesses up to 1 mm, in rolls up to 45 kg & 250 mm in diameter.
- Superior Colour – Epson UltraChrome GS3 ink enables prints with high gloss, high dMax, and an enhanced gamut. The base 9c ink set expands the colour range to 98% PANTONE while there is an additional channel for optional operation with white or metallic ink1.
- Superior Print Quality – Epson Precision Dot Technology with PrecisionCore printheads and eco-solvent ink, advanced MicroWeave and LUT, for accurate and predictable colour. Intelligent feed management with Advanced Auto Tension Control (Ad-ATC) for accurate placement, sizing and linearity.
- Superior Integration – compact design with flexible networking, runs off a standard 5A 240 V power supply, suits operation in a wide variety of office and production environments.2
- Efficient operation – one or more printers can be managed by a single operator with easy consumable loading. Incorporates auto skew correction and has a see-through platen cover with integrated lighting. Epson Edge Dashboard enables remote management and provides access to downloadable print and media profiles. Epson Edge Print enables quality production with a powerful yet easy to use interface2. The printer can also be used with a range of 3rd party RIP and workflow applications.
- Low production costs – consumes very little power, produces quality output with minimal ink, does not require additional optimiser or finishing liquid, high durability printheads do not require regular replacement, bulk ink CISS system uses cost-effective bags.
- Low maintenance – advanced self-cleaning printheads with integrated crash guard, self-agitating ink lines and ink recirculation system, integrated air circulation and filtration system.
- Superior reliability and durability – comprehensive 1 year on-site warranty with optional cover that can be extended up to a total of seven years (including printheads).
- PANTONE is a registered trademark of Pantone LLC with all rights reserved by the holder. Epson UltraChrome GS3 + Red ink was rated at 98.2% Pantone based on samples produced on ILFORD Nano Solvent Premium Photo Paper Gloss at 1440x1440dpi 36pass using Epson Edge Print and 96.5% on Avery MPI1105 at 1440x1440dpi 36pass. Actual results will differ depending on media, print modes, image type and RIP software.
- Operation within an office or studio environment requires air-conditioning with a high air flow. To ensure optimum equipment reliability, colour accuracy and print stability it is recommended that printers be operated within a temperature and humidity controlled environment. Please refer to the specification page of this web site for details.
| SIZE | |||
|---|---|---|---|
| Max Media Width | 64 inch | ||
| PRINT TECHNOLOGY | |||
| Print Head | DUAL PrecisionCore TFP with advanced VSDT, auto nozzle status analysis & integrated guard | ||
| Print Operation | Print Operation Epson Precision Dot Technology, Intelligent Media Feed System with Advanced Auto Tension Control (ad-ATC), auto head alignment, auto head cleaning, auto media setting, auto skew control, EMX media and print profile management system, self-agitating ink lines, white/metal channel recirculation system. | ||
| Print Modes | Uni & Bi-directional | ||
| Nozzle Configuration | 360 x 2 per colour per head | ||
| Maximum resolution | 1440 dpi x 1440 dpi | ||
| Minimum Ink Droplet Size | 4.2 pl | ||
| INK TECHNOLOGY | |||
| Ink Type | Pigment-based Solvent | ||
| Ink Family | Epson Ultrachrome® GS3 & GS3+RED | ||
| Colours | C, M, Y, K, Lc, Lm, Lk, Or, Rd + (optional/user adjustable) White or Metal | ||
| Storage | 10 x 1.5 L CISS | ||
| Waste System | 4 L reusable tank | ||
| PERFORMANCE | |||
| Max Speed (9c) | 95.1 m²/hr | (360 x 360 dpi 1 pass) | |
| Billboard High Speed (9c) | 52.3 m²/hr | (360 x 720 dpi 2 pass) | |
| Billboard Production (9c) | 31.6 m²/hr | (720 x 720 dpi 4 pass HS) | |
| Banner Production (9c) | 18.2 m²/hr | (720 x 720 dpi 6 pass) | |
| Vinyl, Canvas & Paper Production (9c) | 13.2 m²/hr | (720 x 720 dpi 8 pass) | |
| + White (1 Layer) | 12.5 m²/hr | (720 x 720 dpi 8 pass) | |
| + White (2 Layer) | 3.5 m²/hr | (720 x 1440 dpi 32 pass) | |
| + Metal (1 Layer) | 4.2 m²/hr | (720 x 1440 dpi 20 pass) | |
| + Metal (2 Layer) | 1.9 m²/hr | (720 x 1440 dpi 40 pass) | |
| Film Production (9c) | 6.8 m²/hr | (720 x 1440 dpi 16 pass) | |
| + White (1 Layer) | 6.8 m²/hr | (720 x 1440 dpi 16 pass) | |
| + White (2 Layer) | 3.5 m²/hr | (720 x 1440 dpi 32 pass) | |
| + Metal (1 Layer) | 4.2 m²/hr | (720 x 1440 dpi 20 pass) | |
| + Metal (2 Layer) | 1.9 m²/hr | (720 x 1440 dpi 40 pass) | |
| Figures are based on print speed only and do not include provision for image processing time or transmission. Not all print modes are supported by all media and /or RIP software. Individual results are subject to variation due to a variety of configuration, operational, and image specific factors. | |||
| MEDIA SUPPORT | |||
| Loading | Single Roll with 2" or 3" core, 250 mm max outer diameter, 45 kg max weight | ||
| Size | 300 to 1626 mm wide, 500 mm min length, 1 mm max thickness | ||
| Minimum Print Margins | 5 mm left & right (10 mm with guides) | ||
| Platen Gap | 1.6/2.0/2.5 mm | ||
| Heater Settings | 30° to 50° C Pre & Platen, 30° to 55° C after (all three heaters individually adjustable) | ||
| Dryer Settings | On/Off/Auto | ||
| Output Format | Single sheet (manual cut) Roll (integrated ATU supports 2" or 3" core with 200 mm max outer diameter) |
||
| OPERATION | |||
| Control Panel | 2.7” Colour LCD | ||
| Interface | High Speed USB 2.0 & Ethernet 100Base-TX/1000Base-T | ||
| Memory | Main: 2 GB, Network: 128 MB | ||
| Power Supply | 3 x 220-240 V 5A, 50-60 Hz AC | ||
| Printer Physical | 2,766 x 1,338 x 972 mm (WxHxD), 337 kg (no ink or media) | ||
| Control & Utility Software | Epson Edge Dashboard, Epson Accounting Tool, Epson Communication Driver, Epson Manuals Launcher, Epson LFP Remote Panel 2, Epson NetConfig, Epson NetSetup, Epson NetPrint, Epson Software Updater | ||
| RIP Software | Supplied with Epson Edge Print Also supports a wide range of 3rd party applications |
||
| Operational Temp | 15° to 35° C (20-32° C recommended) | ||
| Operational Humidity | 20 to 80% (40 to 60% recommended) | ||
| Typical Energy Use | 685 W Operating / 445 W Ready / 25 W Sleep | ||
| Operating Noise | 60.5 dB | ||
| Operational Space | 3.6 x 1.8 x 2.7 m (WxHxD) | ||
| WHAT'S IN THE BOX | |||
| Printer, Media Supply System (with Stand, Feed and Auto Take-Up), Print Drying System, CISS unit, 1 x user maintenance kit, 1 x waste tank, 10 x cleaning liquid bags, 1 x 9c ink set (1.5 L bags), 1 x roll of Epson Poster Paper, power cables, set-up guide, utility software and user manuals (on CD), RIP software (on DVD). An internet connection will be required during installation to enable registration and download of additional utility software. A significant proportion of the included ink and cleaning liquid will be used during the setup process to clean and prime ink lines while a small amount of media will also be used for initial print testing. If 10c operation is required an additional White OR Metal ink bag should be ordered. |
|||
| Packaging (WxHxD) | 1 x Head Unit | 2,870 x 1021 x 1100 mm, 380 kg | |
| 1 x Media Supply System | 3,100 x 607 x 1064 mm, 80 kg | ||
| 1 x Continuous Ink Supply System | 606 x 912 x 894 mm, 74 kg | ||
| 1 x Print Drying System | 1,990 x 230 x 365 mm, 15 kg | ||
| 1 x Starter Ink & Media Pack | 1,400 x 300 x 300 mm, 40 kg | ||
| CONFIGURATION OPTIONS | |||
| SCS80660L1YR | Printer with 1Yr Warranty | ||
| SCS80660L3YR | Printer with 1 Yr Wty + 2Yr CoverPlus (3Yrs Total Cover) | ||
| SCS80660L5YR | Printer with 1 Yr Wty + 2 x 2Yr CoverPlus (5Yrs Total Cover) | ||
| Printers supplied through Epson Australia and New Zealand include a comprehensive 1 year on-site warranty that covers parts and labour on all non-consumable components (including the print heads) for product. CoverPlus enables on-site parts and labour service to be extended. One or more CoverPlus packs can be ordered with the printer or separately up to 365 days from the initial date of purchase to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification and/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site. If you have questions please contact Epson or one of our Authorised Large Format Resellers. |
|||
| RELATED PRODUCTS | |||
| SC-S40600 | Low to Medium Volume Production | ||
| SC-S60600 | Medium to High Volume Production | ||
| SC-S60660L | Medium Volume High Colour Production | ||
| SC-S80600 | High Volume High Colour Production | ||
