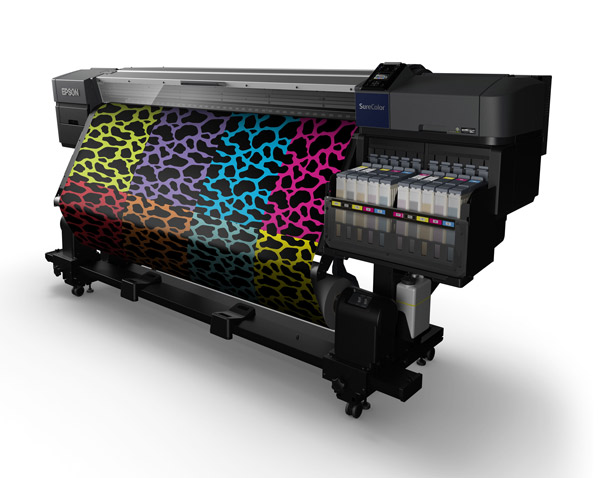

Back catalogue – SureColor F9460 - 64"
- Superior Quality – Dual Epson PrecisionCore™ (TFP) Print Heads driven by Epson Precision Dot Technology for superior imaging at up to 720 x 1440 dpi accurate colour, and super-fine gradation. UltraChrome™ DS HDk ink for an expanded gamut and Dmax. Optional 6c High colour configuration provides additional fluorescent support.
- Excellent Flexibility – compatible with roll media up to 64" (1626 mm) wide and as thin as 0.04 mm. Variable print modes to suit different image quality, speed, and substrate media. Supplied with software and can be used with 3rd party applications. Sublimated fabric suits use by all age groups.1
- Outstanding Productivity – supports production speeds of up to 60 m2/hr, has a large 12/15L Continuous Ink Supply System (CISS), advanced intelligent media management with support for rolls up to 45 kg and high-precision auto take-up for high-quality roll-to-roll production.
- High Reliability – proven platform enables smooth and stable production at high speed, integrated crash guard and dust collectors ensure worry-free operation, comprehensive heads-and all warranty can be augmented with up to five years on-site CoverPlus protection.2
- Reduced Cost – quick and easy to install, runs off a standard power supply, and comes complete with software. Operates with reduced power consumption and cost-effective 1/1.1L ink refills. Features self-monitoring print heads and an auto cleaning system. Media can be loaded by a single operator and printer requires minimal monitoring and maintenance2.
- ECO PASSPORT by OEKO]TEX® is an international standard for the textile industry system. It enables suppliers to demonstrate that products can be used in sustainable textile production. For further information please see the OEKO-TEX web site.
- Installation by a qualified engineer is generally recommended and can be arranged with Epson directly or through our Authorised Reseller Network. The independent sourcing of appropriate sublimation equipment will be required and the use of an external heater/ blower system is generally recommended. After-sales service is co-ordinated by Epson in conjunction with our Authorised Reseller Network. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please refer to our Warranty Statement.
| SIZE | |||
|---|---|---|---|
| Max Media Width | 64 inch (1625.6mm) | ||
| PRINT TECHNOLOGY | |||
| Print Head | DUAL Epson PrecisionCore™ TFP | ||
| Print Modes | Uni & Bi-directional | ||
| Features | Variable Sized Droplet Technology (VSDT) Integrated Crash Guard and Dust Catcher Auto Nozzle Status Monitoring Auto Head Cleaning |
||
| Nozzle Configuration | 360 x 2 per colour | ||
| Active Channels | 2 x 5 | ||
| Maximum Resolution | 720 x 1440dpi | ||
| Min Droplet Size | 4pl | ||
| INK SYSTEM | |||
| Family | Epson Ultrachrome® DS / Epson Ultrachrome® DS6 | ||
| Type | Dye Sublimation | ||
| Colours | Dual CYMHDk (F9460) / Dual CYMHDk + Single Fp & Fy (F9460H) | ||
| Supply | 8 / 10 x 1.5L Continuous Ink Supply System (CISS) | ||
| Refills | 1.1L CYMHDk (shipped in individual colour cartons of 6pcs) 1L FpFy (F9460H only, shipped in individual colour cartons of 2pcs) |
||
| PERFORMANCE | |||
| 4c Draft | 360 x 720dpi (1 Pass) 108.6m2/hr | ||
| 4c Fast Fabric Production | 360 x 720dpi (2 Pass) 60.1m2/hr | ||
| 4c Standard Fabric Production | 720 x 720dpi (3 Pass) 44.1m2/hr | ||
| 4c Premium Fabric Production | 720 x 720dpi (4 Pass) 29.9m2/hr | ||
| 4c HQ Standard Rigid Production | 720 x 720dpi (6 Pass) 20.7m2/hr | ||
| 4c HQ Quality Rigid Production | 720 x 720dpi (8 Pass) 13.3m2/hr | ||
| 6c Fast Fabric Production (F9460H only) | 720 x 1440dpi (4 Pass) 32.1m2/hr | ||
| 6c Standard Fabric Production (F9460H only) | 720 x 1440dpi (6 Pass) 21.9m2/hr | ||
| 6c Premium Fabric Production (F9460H only) | 720 x 1440dpi (8 Pass) 15.8m2/hr | ||
| 6c HQ Standard Rigid Production (F9460H only) | 720 x 1440dpi (12 Pass) 10.6m2/hr | ||
| 6c HQ Quality Rigid Production (F9460H only) | 720 x 1440dpi (12 Pass) 9m2/hr | ||
| Figures represent print times only based on the test sample image as shown, produced on Epson Multi-Purpose DS Paper using Epson Edge Print. The total throughput time for a particular job will depend on a number of factors including the PC specification, RIP application, workflow configuration, networking, file format / size, image content, paper type, print mode, Auto-Take-Up activation and Heater activation. |  |
||
| MEDIA SUPPORT | |||
| Format | Single roll | ||
| Size | 300-1626mm wide x 250mm diameter, 2”/ 3" core | ||
| Thickness | 0.04 - 1.0mm | ||
| Min Margins | 3mm left & right (5mm when using Media Holding Plates) 5mm leading & trailing edges |
||
| Max Print Length | 600m (Subject to roll length & RIP s/w limitations) | ||
| Loading | Rear with integrated lifter & auto skew adjustment | ||
| Media Handling | Media pre-set support Epson EMX profile support Advanced Auto Tension Control (Ad-ATC) |
||
| Output | Sheets (manual cutting) Roll to roll with integrated Auto Take-Up (ATU) - 914mm min roll width |
||
| OPERATION | |||
| Control Panel | 2.7” Colour LCD | ||
| Interface | High Speed USB 2.0 Ethernet 100Base-T/1000Base-T |
||
| Included Software (Windows) | Epson Edge Print, Epson Communications Driver, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, Epson Manual Launcher, Operators Guide & General Guide | ||
| Web Downloads (Windows) | LFP Accounting Tool | ||
| Web Downloads (Mac) | Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, Software Updater, Software Updater, Epson Manual Launcher, Operators Guide & General Guide | ||
| OS Compatibility |
Windows 10, 8/8.1, 7 SP1 64bit or later |
||
| 3rd Party S/W Compatibility |
Compatible with a wide range of design, production, workflow management, and RIP software |
||
| Memory | 512 MB Main + 128MB Network | ||
| Language | ESC/P Raster | ||
| ENVIRONMENTAL | |||
| Operational Temp | 15°-25° | ||
| Operational Humidity | 40 to 60% with no condensation | ||
| Power Supply | 5A, 240V, 50/60 Hz AC | ||
| Power Consumption | 570W Operating / Standby 340W / 14W Sleep (1000BASE-T) | ||
| Operating Noise | 54dB | ||
| Operational Space (W x D x H) | 3620 x 2934 x 1770mm recommended | ||
| PHYSICAL | |||
| Dimensions (W x D x H) |
2620 x 934 x 1332mm |
||
| Weight | 290Kg (without ink) | ||
| WHAT'S IN THE BOX | |||
|
Printer, Media Supply System (MSS), Continuous Ink Supply System (CISS), Starter Ink, 1 x Roll of Epson Multi- Purpose Transfer Media, 1 x Maintenance Kit, 1 x Carriage Rod Grease Kit, Set-up guide, Epson Edge Print Software (CD), Operator Guide & Utility software (CD). |
|||
|
Packaging |
Printer: 3170 x 1100 x 1111mm, 400Kg |
||
| SYSTEM REQUIREMENTS | |||
| A Personal Computer will be required for installation and operation of this printing system. The PC should have a minimum Intel Core i3 /AMD Phenom 2 or equivalent processor (2.5Ghz i5 or greater with separate GPU recommended), 8GB or more memory, a 250GB or larger HDD (1TB recommended), running Windows Vista 32bit or greater (Win 7 64bit/Win 8 recommended). A DVD drive with +/-RW read support and a network with external Web access will be required for installation. For optimum performance it is recommended that 1000Base-T Ethernet networking be employed. High speed web access and an off-line storage facility will be required to complete the installation process and is recommended for operation. The use of a 3rd party ancillary heater/ blower unit is highly recommended with this machine. The typical operational environment will also involve a calendar style heat press which will need to be sourced separately. Please speak with your dealer for recommendations. |
|||
| CONFIGURATION OPTIONS** | |||
| SCF94601YR | 4c Printer with 1Yr Warranty | ||
| SCF94603YR | 4c Printer with 3Yr CoverPlus | ||
| SCF94605YR | 4c Printer with 5Yr CoverPlus | ||
| SCF9460H1YR | 6c Printer with 1Yr Warranty | ||
| SCF9460H3YR | 6c Printer with 3Yr CoverPlus | ||
| SCF9460H5YR | 6c Printer with 5Yr CoverPlus | ||
| ACCESSORIES & OPTIONS** | |||
| 1YWF9460 | 1Yr CoverPlus On-Site Service Pack | ||
| 2YWF9460 | 2Yr CoverPlus On-Site Service Pack | ||
| 1YWF9460H | 1Yr CoverPlus On-Site Service Pack | ||
| 2YWF9460H | 2Yr CoverPlus On-Site Service Pack | ||
| SERVICE & SUPPORT | |||
|
** The printer comes with a comprehensive 1 year warranty that includes cover for the Print Heads but excludes the CISS (3 month replacement warranty). CoverPlus increases the service response level, adds full cover for the CISS, and extends total cover by an additional 1, 2, 3, or 4 years (multiple packs can be combined). CoverPlus can be purchased concurrently with the printer or ordered separately up to 365 days after the original invoice date. Limitations apply to the provision of Warranty and CoverPlus. Support is only provided for product supplied through Epson Australia or Epson New Zealand. The facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Regional locations and installations with difficult access may attract additional charges. Service may be restricted or limited when equipment is modified, used outside of specification, &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns. |
|||
