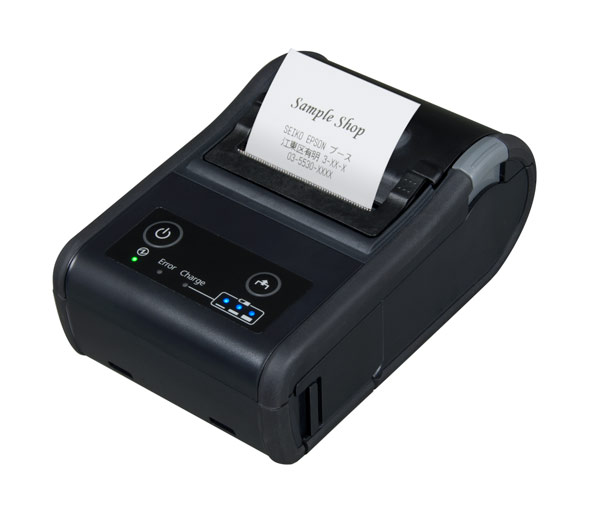

Epson TM-P60II Label

Epson TM-P60II Label

Mobile Printers

Rugged, Reliable and Ready to Go Mobile Printers

Model Name TM-P60II
Print Method Thermal line printing
Print Font Font A 12 x 24, new Font B 10 x 24, new Font C 8 x 16
Column Capacity (columns) 58mm paper, Font A/B/C, 35/42/52 columns;
60mm paper, Font A/B/C, 36/43/54 columns
Character Size (mm) 1.5 × 3.0 / 1.25 × 3.0 / 1.0 × 2.0 mm (W x H)
Character Set 95 Alphanumeric, 48 International, 128 × 10 Graphic
Bar Code: : 1D: EAN-8, EAN-13, UPC-A, UPC-E, JAN13, JAN8, Code 39, Code 93, Code 128, ITF, CODEBAR, GS-1-128, GS1 DataBar, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded.

2D: QR Code, Maxi Code, PDF417, Composite, Data Matrix, RSS/GS1 and Aztec
Character Per Inch 17/20/25 cpi
Print Speed Receipt mode 100mm/sec, label mode 80mm/sec; peeler mode 40mm/sec
Resolution 203 DPI × 203 DPI
Paper width Paper or labels, 58mm or 60mm width (receipt version)
Paper or labels, 30–60mm (label version)
Paper Diameter (max.) 51mm
Reliability 10 million printing lines; 500,000 autocutter
Paper Thickness (mm) possible for the manual cutter 80μm or less
Interfaces 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 2.1 + EDR
Supported mobile operating systems WiFi (802.11): iOS, Android and Windows (Security Level WEP, WPA, WPA2-Enterprise)
Bluetooth: iOS, Android and Windows
Data Buffer 4096 bytes
Autocutter Partial cut, left uncut (receipt version)
Peeler Automatic label removal from backing (label version)
Audible alert Programmable buzzer
Sensors Paper out (receipt and label versions)
Gap, black mark, label taken (label version)
LED Indicators Green LED : Power (ON=Power on, OFF=Power off)
Orange LED : Only shown when power is ON
        Error, Paper end, Cover open, Battery level low (printer does not operate)
Blue LED : Four battery level indicators:
        3 LED ON = approx. 100%–60%
        2 LED ON = approx. 60%–20%
        1 LED ON = approx. 20%–10%
        1 LED Flashing = approx. 10%–1%
Software TM-P60II Utility, EpsonNet Config, EpsonNet Simple Viewer, TM-P60II Remote Configuration Tool, TM Bluetooth Connector, Built-In Configuration Page
Power Custom Lithium-Ion battery pack, AC adapter (option)
Battery Life Up to 27 hours with 802.11n, up to 46 hours with Bluetooth 2.1 + EDR*
Operating Temperature 0° C to 45° C
Drop rating 4 feet (1.2m), IP54 environmental certified
Overall Dimensions (mm) 103 x 159 x 65 mm
Weight (Approx) Receipt version 630g with battery, belt clip
Label version 600g with battery, belt clip
Colour Epson Black (EBCK)
Power Supply (option) PS-11
Warranty Standard two year RTB warranty
Option Battery (Model: OT-BY60II), Power Supply (PS-11)
* The TM-P60II battery life can last up to 27 hours for WiFi and up to 46 hours for Bluetooth. Battery life can vary significantly depending on usage.
Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
