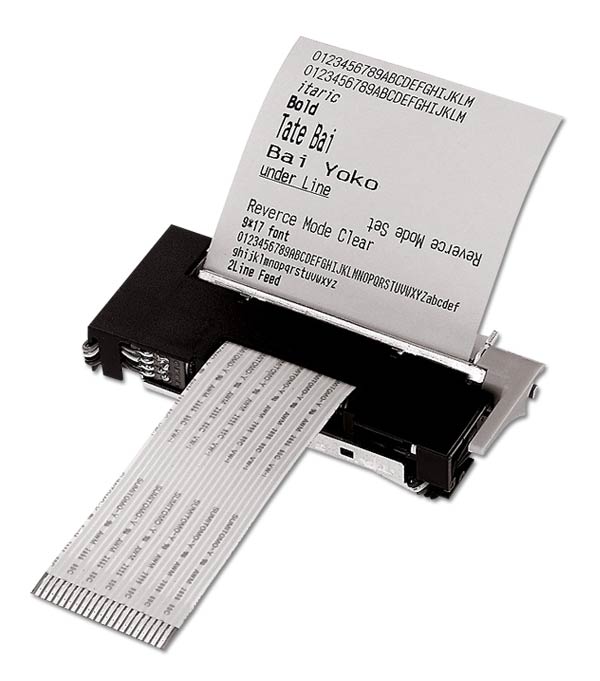

Epson M-T153

Epson M-T153

Thermal Mini Printers

The silent operation of thermal printing in a small package.

Impact Mini Printers

PAPER WIDTH 57.5±0.5 mm
NUMBER OF TOTAL DOTS 384 dots / line
RESOLUTION 8 dots / mm
PRINTING SPEED 62.5 mm / sec max. (at 7.4V), 15 mm / sec (at 3.8V)
VOLTAGE 2.7 to 7.4 VDC
RELIABILITY (MCBF) 5 x 106 lines (Feeds)
CONTROL BOARD Evaluation board for customer's evaluation only.
OPTIONS Manual feed knob
OVERALL DIMENSIONS 77mm (W) x 38mm (D) x 13mm (H)
WEIGHT Approx. 40 g

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
