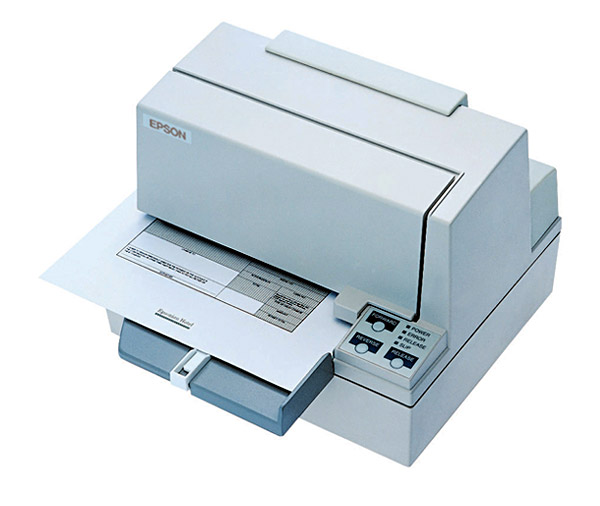

Epson TM-U590
Impact Dot Matrix Printers
High Speed, multi-function, multi-part slip printing.
Impact Dot Matrix Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | 9-pin, serial impact dot matrix | |||||
| PRINT FONT | 7 x 9 / 9 x 9 | |||||
| COLUMN CAPACITY | 88 / 86 columns | |||||
| CHARACTER SIZE | 1.3 (W) x 3.1 (H) mm / 1.6 (W) x 3.1(H) mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 32 International characters | |||||
| CHARACTERS PER INCH | 128 x 10 Graphic characters 16.7 CPI/12.5 CPI |
|||||
| PRINT SPEED | 311 / 233 CPS | |||||
| DATA BUFFER | 4K bytes / 69 bytes | |||||
| INTERFACE | RS-232C / Bi-directional parallel / RS-485 (option) | |||||
| PAPER DIMENSIONS | 70 (W) x 70 (L) to 210 (W) x 297 (L) mm | |||||
| PAPER THICKNESS | 0.09 to 0.36 mm | |||||
| COPY CAPABILITY | One original and four copies | |||||
| INKED RIBBON | ERC-31 (black) | |||||
| RIBBON LIFE | 4.5 x 106 characters (black) | |||||
| POWER SUPPLY | 24 VDC ± 10% | |||||
| CURRENT CONSUMPTION | Approx. 1.9 A (at 24 VDC) | |||||
| D.K.D. FUNCTION | 2 drivers | |||||
| RELIABILITY | ||||||
| MTBF | 18 x 104 hours | |||||
| MCBF | 29 x 106 lines | |||||
| EMI STANDARDS | VCCI #1, FCC class A, CE marking | |||||
| SAFETY STANDARDS | UL, C-UL, TÜV, CCIB | |||||
| OVERALL DIMENSIONS | 252mm (W) x 266mm (D) x 185mm (H) | |||||
| WEIGHT | Approx. 5Kg | |||||
| PRODUCT OPTIONS | ||||||
| DC21 | DC Cable Set (2m) | |||||
| PS170 | Power Supply | |||||
Usage Conditions
Epson products are designed and made to give highly reliable use
and long life when used according to its specifications. With any system, product
or device used in situations where human life may be involved or at risk,
Epson advises that you should take all necessary steps to ensure the suitability
of your Epson product for inclusion in your system, and recommends that you
include fail-safe procedures and redundancy support or backup equipment in your system,
to maintain the maximum safety margin and optimum system reliability.
