Epson SurePress L-4033A

SIZE
	13 inches
PRINT TECHNOLOGY
Print Mechanism	15 x Head Array with lateral scanning, anti-crash detection, auto nozzle check & clean
Head Mechanism	Epson MicroPiezo with 180 nozzles x 8 rows & VSDT
Max Resolution	1440 x 2880 dpi max (720 x 1440 dpi Production)
Minimum Drop Size	3.0 picolitres
INK SYSTEM
Family	SurePress AQ
Type	Water-based, resin-coated pigment
Colours & Cart Loading	2 x (Black, Uncoated Black, Cyan, Magenta, Yellow, Orange & Green)
	2 x Over Print 4 x Moisture Liquid
Cartridge Size	700ml ea.
PRINT PERFORMANCE
Paper	5.0 m/min 4pass @ 720 x 720 dpi (Fast Production) 3.6 m/min 6pass @ 720 x 1080 dpi (Normal Production) 2.8 m/min 8pass @ 720 x 1440 dpi (Quality Production)
Film	2.8 m/min 8pass @ 720 x 1440 dpi (Normal Production) 1.4 m/min 16pass @ 720 x 1440 dpi (Quality Production)
Note: Print speeds are provided for comparison purposes only. They do not include image processing/ transfer times, are RIP dependant and not all print modes are compatible / recommended for all media types.
SUBSTRATE SUPPORT
Formats	Roll based with 3" core, 600mm max diameter (including core) 80-330.2mm wide, 1000m max length, 100kg max weight
Thickness	0.10 - 0.32 mm or 100 - 320 microns (4 - 12.6 mil)
Media Types	Standard self-adhesive label stock and film (no pre-coating required) Semi-gloss, gloss, and matte paper stock Coated paper, cast coated paper, uncoated paper, PP, BOPP, PET & Yupo
Max Print Area	315.2mm x 914.4mm per frame
Drying System	Platen Heater: 35° to 45°C adjustable (45°C recommended) Air Dryer: 50° to 75°C adjustable (75°C recommended)
Output	Re-winder (optional)
OPERATION
Control Panel	Touchscreen LCD
Networking	Ethernet 1000 Base-T

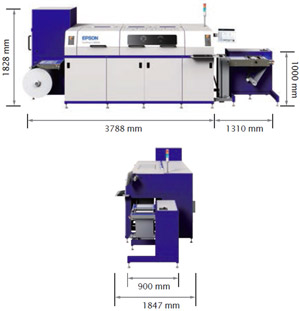

Dimensions (WxHxD)	Printer: 3788 x 1828 x 1847mm Rewinder: 1310 x 1000 x 900mm
Weight	Printer: 1,750kg Rewinder: 180kg
ENVIRONMENT
Operating Temperature	18° to 28°C (20-26°C recommended)
Operating Humidity	35 to 55% (no condensation)
Power Supply	200V AC (Three phase), 50-60Hz, 30A
Power Consumption	6kW operating 4.8kW standby (1kW with heater off)
Max Operating Noise	75dB (excluding the alarm sound)

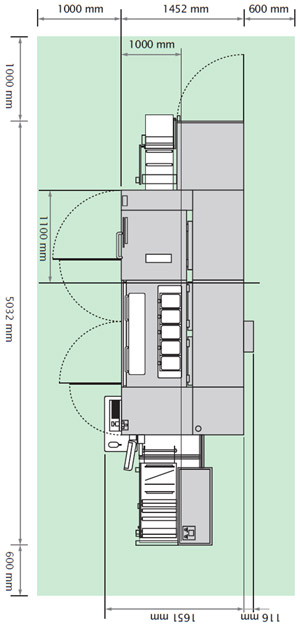

Operational Space (WxHxD)	6.7 x 2.2 x 3.1m
Minimum Floor Stiffness	400kg/m2

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges.
