||PrecisionCore linehead inkjet technology
||600 x 1200 dpi (maximum)
||LED UV Curable Inks
||Black, Cyan, Magenta, Yellow, Digital Varnish or Orange, White
||80mm to 340mm
||330mm x 1000mm
||50m/min ; 30m/min ; 15m/min ; 7.6m/min
||PP, PE, PET, YupoTM, Coated paper, Uncoated paper, and foil.
||80 to 320 microns
||100kg / 600mm diameter / 1000m length (thickness <-150um)

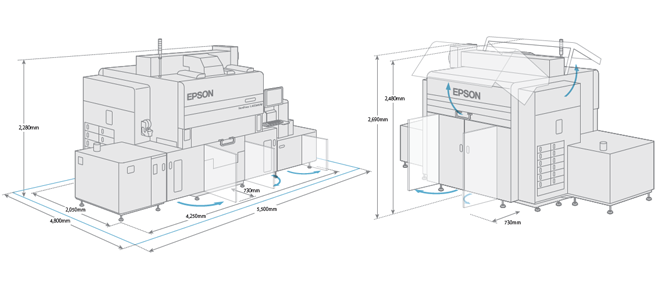

|Dimension (W x D x H)
||4250mm x 2285mm x 2485mm (includes Corona Treater and Additional UV Lamp Curing Unit)
||2,710kg (includes Corona Treater and Additional UV Lamp Curing Unit)
||20 – 28 °C, RH 35 – 55%, No condensation required
Epson products are designed and made to give highly reliable use
and long life when used according to its specifications. With any system, product
or device used in situations where human life may be involved or at risk,
Epson advises that you should take all necessary steps to ensure the suitability
of your Epson product for inclusion in your system, and recommends that you
include fail-safe procedures and redundancy support or backup equipment in your system,
to maintain the maximum safety margin and optimum system reliability.
Examples include but are not limited to do not interfere with any electrical
components within the device, do not use items supplied with the product for
purposes other than as intended by Epson (ie mains cords, inks, CDs,
plastic wrapping) and do not make modifications to the product.
This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges.
