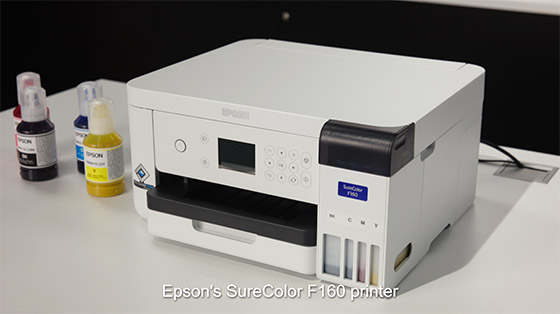

SureColor F160 - A4
A4 Dye Sub Fabric and Merchandise Printer
| FABRIC & MERCHANDISE - PRINTER | |
|---|---|
| PRODUCT NAME | SureColor F160 - A4 |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | PrecisionCore TFP with VSDT |
| Nozzle Configuration | 400 Black + 128 x CYM |
| Max Resolution | 600 x 1200dpi |
| Min Drop Size | 3.8pl |
| INK SYSTEM | |
|---|---|
| Family | Epson UltraChrome® Dye Sublimation |
| Type | Dye Sublimation |
| Colours | CYMK |
| Supply | 120ml Black + 60ml x CYM CISS Tank System |
| Refills | 140ml Bottles |
| PERFORMANCE | |
|---|---|
| Production | 65s |
| Quality | 152s |
 Figures represent print times for the indicated test image produced in A4 on Epson General Purpose DS Paper. The total throughput time for a particular job will depend on a number of factors including the PC specification, software selection, workflow, networking, file format / size, image size and print mode. Additional time will be required for sublimation. |
|
| MEDIA SUPPORT | |
|---|---|
| Media Type | A4 Epson General Purpose Dye Sub Paper |
| Minimum Margins | 3mm top, bottom, left & right |
| Loading | 150 page tray |
| OPERATION | |
|---|---|
| Control Panel | Tilt-adjustable with button control, 2.4” colour LCD display and integrated help |
| Interface | Ethernet 10Base-T/100Base-TX & Wi-Fi (recommended), also supports USB 2.0 |
| Memory | 132kb |
| Included Software | Windows Installer Package, Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Firmware Updater, Software Updater, User Manual and Epson Device Admin on CD &/or via Web download Mac Installer Package, Printer Driver, EpsonNet Setup, EpsonNet Config, Firmware Updater, Software Updater and User Manual via Web download |
| System Requirements | Windows XP/7/8/10 (32/64bit) or Mac OS X 10.6.8 or later |
| ENVIRONMENTAL | |
|---|---|
| Physical (WxDxH) | 375 x 347 x 187mm, 4.6kg (no ink or media) |
| Power Supply | AC 220~240V, 50/60Hz, 0.2A |
| Operational Temp | 10°~35°C (15°~25°C recommended) |
| Operational Humidity | 20 to 80% with no condensation (40-60% recommended) |
| Power Consumption | 13W Operating, 4.1W Ready, 0.7W Sleep |
| Operating Noise | 53dB |
| Operational Space (WxDxH) |
375 x 503 x 187mm (recommended) Note: Additional space will be required for a heat press. |
| SHIPPING INFO | |
|---|---|
| Packaging (WxDxH) | Printer: 515 x 435 x 278mm, 7.2Kg Ink & Media Pack: 450 x 250 x 250mm, 5Kg |
| What's in the Box | Standard Pack: Printer, 2 x Ink Bottle Set, 2 x Maintenance Tank, 3 x A4 Media Pack, Power Cord, Setup Guide, Software & User Manual CD. Basic Pack: Printer, 1 x Ink Bottle Set, 1 x Maintenance Tank, 2 x A4 Media Pack, Power Cord, Setup Guide, Software & User Manual CD. Printer Only: Printer, 1 x Ink Bottle Set, 1 x Maintenance Tank, Power Cord, Setup Guide, Software & User Manual CD. |
| Installation & Operation | A suitable heat press along with appropriate merchandise/fabric will be required to enable production. A proportion of the ink and the maintenance tank included with this printer will be used to ‘prime’ the machine during initial set-up. Reliable operation requires the printer be used on a regular basis and not left powered down for extended periods. The printer is not designed for mobile operation and may suffer leakage if shaken or tilted. Dye sub ink is extremely stable once sublimated however care must be taken prior; unopened bottles should be stored in a cool environment away from sunlight and installed by the best before date printed on the package. Customers should follow directions included in the user manual and with the ink, wear gloves, ensure any spilt ink is removed quickly and allow prints to dry fully before handling. For optimal results and maximum reliability ink should be consumed within one month of loading into tanks, opened bottles should be consumed within 6 months, and prints should be sublimated within a week of creation (1~2 days recommended). IMPORTANT: This printer is designed to operate with specific Ink and media. Use of alternative consumables is likely to result in reduced image quality and may lead to mechanical failure that exceeds the cover provided under Epson warranty and/or CoverPlus. |
| CONFIGURATION OPTIONS* | |
|---|---|
| SCF1601Y | Standard Pack with 1Yr Warranty |
| SCF1603Y | Standard Pack with 1Yr Warranty & 2Yr CoverPlus (3 yrs total cover) |
| SCF1605Y | Standard Pack with 1Yr Warranty & 4Yr CoverPlus (5 yrs total cover) |
| SCF1601YB | Basic Pack with 1Yr Warranty |
| SCF1603YB | Basic Pack with 1Yr Warranty & 2Yr CoverPlus (3 yrs total cover) |
| SCF1605YB | Basic Pack with 1Yr Warranty & 4Yr CoverPlus (5 yrs total cover) |
| ACCESSORIES & OPTIONS* | |
|---|---|
| YR2F160 | CoverPlus On-Site Service Pack Year 2 |
| YR3F160 | CoverPlus On-Site Service Pack Year 3 |
| YR4F160 | CoverPlus On-Site Service Pack Year 4 |
| YR5F160 | CoverPlus On-Site Service Pack Year 5 |
| SERVICE & SUPPORT | |
|---|---|
| *Printers are supplied with a comprehensive 1 year warranty that covers labour and all non-consumable parts (including Print Heads but excluding the tank system). It provides for free repair of equipment located in nominated metro areas (regional locations may attract additional charges). Cover can be extended up to a maximum of 5 years through purchase of optional CoverPlus packages either with the printer or up to 365 days after purchase (discounts apply for bundled purchase). CoverPlus provides additional cover for the tank system while extending the base parts and labour cover. This printer is designed to operate with specific Ink and media. Use of alternative consumables is likely to result in reduced image quality and may lead to mechanical failure that exceeds the cover provided under Epson warranty and/or CoverPlus. Service may additionally be restricted or denied if the user does not perform the regular maintenance & cleaning as outlined in the user guide, if equipment is modified or used outside of specification. Please refer to the warranty section of this web site for additional details including mechanical life ratings and contact Epson or one of our Authorised Resellers if you have questions. |
| Usage Conditions | |
|---|---|
| Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping), do not make modifications to the product and avoid the use of third party consumables. Consult Epson if you have any questions or concerns. |
