Epson EH-TW6100W
Home Theatre Projectors
Brilliant 2D & 3D Entertainment with Wireless HDMI
Overview
Featuring revolutionary wireless technology, the EH-TW6100W makes it easy to wirelessly project content from your Blu-ray® player, Apple® TV or Gaming Console - without running extra wires. Use the included EPSON® wireless transmitter for quick, easy setup. Then, access all of your entertainment devices wirelessly. And, with Full HD 1080p performance and a remarkable contrast ratio of up to 40,000:1, this innovative performer makes it simple to entertain family and friends with impressive, larger-than-life images.
KEY FEATURES & BENEFITS
- Amazing Colour Brightness – 2,300 Lumens colour brightness and 2,300 Lumens white brightness.
- A True Cinematic Experience – 2D and 3D, Full HD 1080p technology, and a contrast ratio up to 40,000:1.
- 2D-to-3D Conversion – Easily transform 2D images to spectacular 3D for unlimited 3D content.
- Whireless HDMI – Includes 5 HDMI inputs, 1 HDMI out and 1 optical port.
- Split Screen Feature (2D mode) – Project two images side-by-side from two different sources.
- Easy Setup – Image adjustment tools included.
- Captivating Sound – Two built-in 10 W stereo speakers for lifelike sound.
- Exciting 3D Made Easy – Two pairs of RF 3D glasses included.
3x Brighter Colours with Epson*
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3x Brighter Colours than leading competitive projectors*.
One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projector’s colour brightness specification.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
C2Fine™ Technology Delivers a Higher Contrast Ratio
C2Fine™ offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, and, when combined with the auto iris, this technology allows for contrast ratios of up to 40,000:1.
Amazing Colour Brightness
For the best quality images, look for projectors where the colour brightness and white brightness are equal. If colour brightness is lower than white brightness, photos, videos and graphics can look dull and washed out. The Epson EH-TW6100W delivers 2,300 Lumens of colour brightness and 2,300 Lumens of white brightness (light output) for rich, colourful images.
Bright 3D Drive Technology for 3D Cinematic Adventures
Enjoy thrilling 3D adventures right in the comfort of your living room. Featuring Bright 3D Drive technology, the TW6100 puts you right in the middle of the action. Epson’s drive system minimises the blackout time of 3D glasses and provides greater brightness when viewing 3D content.
2D-to-3D Conversion
Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW6100W makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.
Two Rechargeable RF 3D Glasses Included
Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life.
Super Resolution
Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.
Super Resolution Technology OFF Super Resolution Technology ON
Only from Epson — Wireless HDMI
Put Your Projector Anywhere You Want Without Running Extra wires
Put Your Projector Anywhere You Want Without Running Extra wires
Setup your projector wherever you want. There’s no need to worry about drilling holes, running cables or taking a lot of time for complicated software installations. Just plug your projector into a power source. The wireless receiver is built in so you do not need to connect anything else. And, the wireless transmitter’s compact design makes it blend into any environment. The EPSON transmitter streams a Full HD signal wirelessly, so you can keep things tidy and keep your A/V equipment separate from your projector.
Secure, Full HD 1080p Video Wireless Streaming
The EPSON Wireless HD™ streams reliable, HD 1080p, 60 Hz video from one device to another, within the same room, at a distance of up to 10m, with stellar full HD 1080p image quality. The system is HDCP compliant and can stream copy-protected content. Its fast signal transfer ensures real-time transmission of HD media without buffering or drop out. The wireless transmitter provides a secure connection that resists interference with nearby wireless routers.
Connect your receiver, Blu-ray player, game console, streaming device like Apple TV, and more. You can even connect speakers via the optical connection. View a second device using the wireless picture-in-picture mode. Switch between up to 5 connected devices with the preview mode. The wireless transmitter connects to up to 5 HDMI devices simultaneously, has one HDMI out connection, and one optical port.
Pass-Through Mode
Setup your A/V equipment once, connecting to both your projector and a second display device such as a TV. Whether you want to view content on your projector or your second device, you no longer need to unplug and re-plug in your devices. All you need to do is connect both devices to the EPSON wireless HDMI transmitter and then choose which display device you’d like to use.

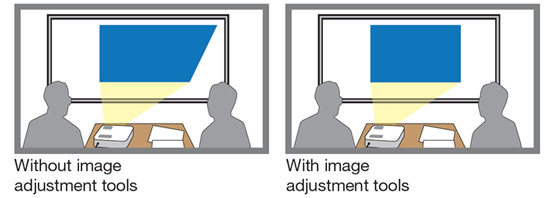

Installation Flexibility
A powerful 1.6x Optical zoom teamed with vertical and horizontal keystone correction makes projector placement a breeze. The TW6100 automatically corrects the image vertically. And for horizontal image correction just move the easy-slide control bar to make the necessary adjustments.

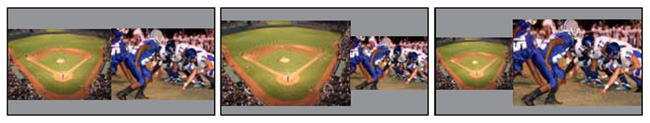

Split Screen Feature
Project two images (video or still) side-by-side from two different sources simultaneously. Choose from three layout options. You can swap the images as well as choose the source for audio.
| Layout Option 1: 50-50% split screen | Layout Option 2: Main image on left | Layout Option 3: Main image on right |
Captivating Sound
Enjoy amazing audio with two built-in 10W speakers.
Connectivity Panel
Specification
| PRODUCT NAME | Epson EH-TW6100W | ||
| PRODUCT CODE | V11H502053 | ||
| WHAT'S IN THE BOX | |||
|---|---|---|---|
| EH-TW6100W Projector, Power Cable, Remote Control + Batteries, 3D Glasses + USB cable for charging x 2, WirelessHD Transmitter Set + 2m HDMI Cable, HDMI Cable Clamp x 2, User's Manual | |||
| TECHNOLOGY | |||
| Projection System | RGB liquid crystal shutter projection system | ||
| LCD Panel | 0.61-inch wide panel with MLA (D9.8, C2Fine, 12Bit) | ||
| OPTICAL | |||
| Zoom | 1-1.6 (Optical Zoom) | ||
| Screen Size | 30" to 300" [0.87 to 8.9m] (Zoom: Wide) 30" to 300" [1.42 to 14.5m] (Zoom: Tele) |
||
| Keystone Correction | Vertical : -30 to +30 degrees Horizontal: -30 to +30 degrees (Slide Bar) |
||
| Projection Distance | 100" screen 2.95 - 4.8 m | ||
| Throw Ratio | 1.32 (Zoom: Wide), 2.15 (Zoom: Tele) | ||
| Projection Lens F Number | 1.51-1.99 | ||
| Projection Lens Focal Length | 18.2mm-29.2mm | ||
| Focus Method | Manual Focus | ||
| IMAGE | |||
| Colour Light Output | 2,300 Lumens | ||
| White Light Output | 2,300 Lumens | ||
| Resolution | 1080p | ||
| Native Aspect Ratio | 16:9 | ||
| Contrast Ratio | 40,000:1 | ||
| Lamp Type | 230 W UHE (E-TORL) | ||
| Colour Reproduction | Up to 1.07 billion colours | ||
| Colour Processing | 10 bit | ||
| CONNECTIVITY | |||
| Input: Video | 1 x RCA (Yellow), 1 x Component Video | ||
| Input: Computer | 1 x D-sub 15-pin (RGB) | ||
| Input: Digital | 2 x HDMI | ||
| Input: USB | 1 x USB A (Photo Viewer) | ||
| Input: Control | 1 x RS232C | ||
| ADVANCED FEATURES | |||
| WirelessHD | Yes | ||
| Super Resolution | Yes | ||
| 3D Formats | Top-and-Bottom, Side-by-Side, Frame Packaging | ||
| 2D to 3D Conversion | Off / Weak / Medium / Strong | ||
| Internal Speakers | 2 x 10W | ||
| Split Screen | Yes | ||
| Direct Power On | Yes | ||
| Security | Kensington®-style lock provision |
||
| Colour Modes | 2D: Dynamic, Living room, Natural, Cinema, Auto 3D: 3D Dynamic, 3D Cinema |
||
| GENERAL | |||
| Dimensions D x W x H | 365 x 420 x 137.3mm | ||
| Weight | 6.2kg | ||
| Lamp Warranty | 12 months or 750 hours* | ||
| Projector Warranty | 2 Years | ||
| Power Consumption: Lamp on | 358W | ||
| Power Consumption: Standby | 0.35W | ||
| Noise Level | Normal/Eco: 32dB | ||
| * Which ever comes first. For more information visit Epson Projector Warranty | |||
| PRODUCT OPTIONS | Item Code | Description | |
| V12H002S2Y | Floor Standing Tripod Screen | ||
| V13H010L68 | Lamp - ELPLP68 | ||
| V13H134A38 | Air Filter - ELPAF38 | ||
| V12H548001 | ELPGS03 – 3D Glasses | ||
| V12H564C12 | ELPAC01 – 3D Glasses Charger | ||
| V12H003B22 | Ceiling Mount | ||
| V12H003P13 | Extension Pole 668-918 mm | ||
| V12H003P14 | Extension Pole 918-1,168 mm | ||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | |||
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications.
With any system, product or device used in situations where human life may be involved or at risk,
Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends
that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
Examples include but are not limited to - do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping)
and do not make modifications to the product.
Consumables
| ACCESSORIES & OPTIONS | PRODUCT CODE |
|---|---|
| ELPSC21B 80" Portable Tripod Screen | V12H002S2Y |
| ELPMB22 Ceiling Mount | V12H003B22 |
| ELPFP13 Extension Pole - 450mm | V12H003P13 |
| ELPFP14 Extension Pole - 918mm to 1,168mm | V12H003P14 |
| ELPAF38 Air Filter | V13H134A38 |
