| PRODUCT NAME |

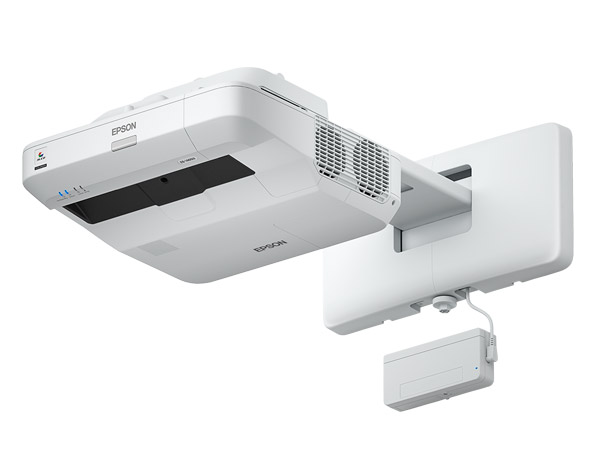

MeetingMate EB-1450Ui |
| PRODUCT CODE |
V11H727053 |
| TECHNOLOGY |
| Projection Technology |
Epson 3LCD, 3-Chip Technology |
| Projection System |
RGB Liquid Crystal Shutter Projection System |
| LCD Panel |
0.67-inch (D10) |
| OPTICAL |
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size |
70" to 100" [40.5 to 59.3m] |
| Projection Distance |
90" screen 53cm |
| Throw Ratio |
0.27 (Zoom: Wide),
0.37 (Zoom: Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual)
Focus (Manual) |
| Projection Lens F Number |
1.6 |
| Projection Lens Focal Length |
4.2mm |
| Focus Method |
Manual |
| Offset |
5.8:-1 |
| IMAGE |
| White Light Output |
3,800 Lumens |
| Colour Light Output |
3,800 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
16,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees (Zoom: Tele)
Horizontal: -3 to +3 degrees (Zoom: Tele) |
| Quick Corner |
Yes |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
| Analog RGB Input: |
1x RGB D-sub 15pin
1x RCA Composite |
| Analog RGB Output: |
1x RGB D-sub 15pin |
| Digital Input |
2 x HDMI (1 supports MHL) |
| Digital Output |
1x DVI-D (HDCP content not supported) |
| Audio - Input |
2x Stereo mini |
| Audio - Output |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin
1x Stereo mini (for control pad)
Interactive sync stereo mini - 1x in, 1x out
Touch Unit Control - 1x Min DIN 8pin |
| USB |
2x Type A (for USB Memory, Printer, USB Document Camera, Firmware update, Copy OSD Settings)
1x Type B (for USB Display, Mouse, K/B, Control, Interactive, Saving Data File to PC via Cable) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for ELPAP10 LAN unit) |
| Touch Interactive |
Min DIN 8pin |
| Wireless Connectivity |
Includes ELPAP10 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
| EasyMP Network Projector control and projector management via network |
Yes |
| AMX Device Discovery |
Yes |
| Crestron Integrated Partner |
Yes |
| Crestron RoomView |
Yes |
| Extron IP Link |
Yes |
| Control4 |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Easy Interactive Function |
70" to 100" [0.41 to 0.59m] 90" screen 0.533 m
Supports multiple screens (PC Interactive only, up to 2)
Throw ratio
0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
(as the same as the projection lens spec) |
| Finger Interactive Unit |
Dimension: 210x95x51mm
Weight: 450g
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision |
| PC Interactive Tool |
Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2
Finger: Up to 6 |
| PC Free Annotation Unit |
Multi Pen Support: Yes
Easy interactive Pen: Up to 2
Finger: Up to 2.
Whiteboard function
Projector function |
| Firmware Update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD Settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Auto Power On |
Yes (PC, USB-B) |
| Security |
* Kensington® Lock Provision
* Padlock & Security Cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
|
| Colour Modes |
Dynamic, Presentation, Cinema, sRGB, DICOM SIM |
| Integrated Mount included |
Yes |
| EXTERNAL CONTROL PAD |
| Dimensions WxDxH |
140 x 34.5 x 178mm |
| Weight |
262g |
| Buttons |
Power ,Whiteboard, Source search |
| Control I/O |
Upstream Port: USB Type A x 1 (for USB Display, mouse, K/B, Interactive, flash storage, Printer, others)
Upstream Port(remote control output) : Stereo mini Jack
Downstream Port: USB Type B x 1 (for USB Display, mouse, K/B, Interactive) |
| Memory I/O |
Upstream Port - USB Type B x 1
Downstream Port - USB Type A x 3 (for USB Flash Storage, Printer, others) |
| GENERAL |
| Dimensions (excl feet) WxHxD |
474 x 447 x 130mm |
| Weight |
8.4kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
3 Years |
| Lamp Hours |
5,000 hours (Normal)
10,000 hours (ECO) |
| Lamp Type |
267W UHE |
| Power Consumption: Lamp On |
401W (Normal)
334W (ECO) |
| Fan Noise Level (eco) |
37dB (Normal)
30dB (ECO) |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| WHAT'S IN THE BOX |
| Main Unit |
EB-1450Ui Projector |
| Mount |
ELPMB46 |
| Control Pad |
Yes |
| Power Cable |
5m |
| USB Cable |
5M, 1.8M |
| Remote Control |
Yes |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
Yes |
| Easy Interactive Pen |
2 pens |
| Battery for Easy Interactive Pen |
AA x 2 |
| Pen Stand |
Yes |
| Pen tip (Soft) |
x4 |
| Pen tip (Hard) |
x2 |
| Pen tip Holder |
Yes |
| Light Curtain Finger Touch Unit |
Yes |
| Wireless LAN Unit |
Yes |
| Password Protect sticker |
Yes |
| Stereo Mini Cable |
Yes |
| PRODUCT OPTIONS |
| |
V13H010L92 |
Lamp ELPLP92 |
| |
V13H134A45 |
Air Filter ELPAF45 |
| |
V12H525001 |
USB Extention cable ELPKC31 |
| |
V12H777010 |
Wall Mount ELPMB46 |
| |
V12H516040 |
Table Mount ELPMB29 |
| |
V12H467053 |
External speakers ELPSP02 |
| |
V12H758053 |
Document Camera ELPDC21 |
| |
V12H773010 |
Easy Interactive Pen 1 (Orange) ELPPN05A |
| |
V12H774010 |
Easy Interactive Pen 2 (Blue) ELPPN05B |
| |
V12H775010 |
Replacement Hard Pen Tips ELPPS03 for ELPPN05(New: Hard) |
| |
V12H776010 |
Replacement Soft Pen Tips ELPPS04 for ELPPN05(New: Soft) |
| |
V12H614053 |
Control Box ELPCB02 |
| |
|
|
