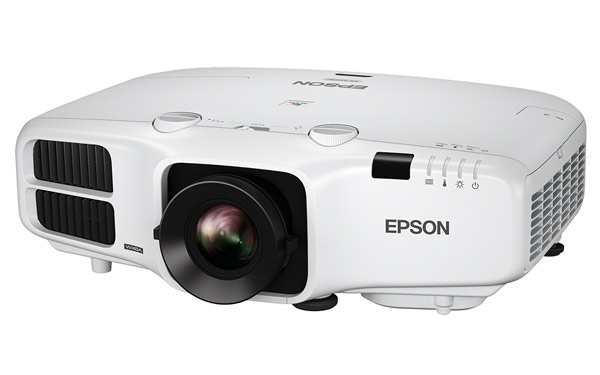

Epson EB-4770W

Epson EB-4770W

Installation Multimedia Projectors

The Ultimate Projection Solution for any Meeting Space



PRODUCT NAME Epson EB-4770W
PRODUCT CODE V11H748053
WHAT'S IN THE BOX
  EB-4770W Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM.
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.76-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom 1 - 1.8 (Optical)
Screen Size 50" to 300" [1.35m to 8.36m] (Zoom: Wide)
50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance 100" screen 2.75 m - 4.98 m
Throw Ratio 1.27 (Zoom: Wide), 2.30 (Zoom: Tele)
Projection Lens F Number 1.65 - 2.55
Projection Lens Focal Length 21.28mm - 37.94mm
Focus Method Manual
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 5,000:1
Lamp Hours 4,000 hours (Normal)
5,000 hours (ECO)
Lamp Type 280 W UHE
Keystone Correction (With Std Lens) Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Lens Shift Vertical: -50% to +50%
Horizontal: -10% to +10%
Tilt Angle -2.50 to 10 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer 1x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DisplayPort
Input: Audio 3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control 1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 9-pin)
Output: Audio 1 x Stereo mini-jack
Speaker Output 10W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
Split Screen Yes
Edge Blending
Arc Correction Yes
Frame Interpolation
360 Degrees Projection
Instant Off Yes
Direct Power On/Off Yes
Security

Kensington® – style lock provision
Padlock & Security cable hole
Wireless LAN Lock

Colour Modes Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM
GENERAL
Dimensions D x W x H 320 x 472 x 134 mm
Weight Approx. 6.5kg
Lamp Warranty 1 Year or 750 Hours*
Projector Warranty 3 Years
Power Consumption: Lamp on 388 W
Power Consumption: Standby 0.39 W
Noise Level Normal/Eco: 38/30 dB

* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS Item Code Description
  V12H525001 5m USB Extension Cable
  V13H010L77 Replacement Lamp
  V13H134A45 Replacement Filter
  V12H547053 HDBaseT Transmitter
  V12H418P13 Wireless LAN adaptor
  V12H005M09 Quick Wireless USB Key
  V12H618P01 Polarizers for passive 3D
  V12H003B22 Ceiling Mount
  V12H003P13 Extension Pole 668-918mm
  V12H003P14 Extension Pole 918-1,168mm
  V12H526040 Flush Ceiling mount
