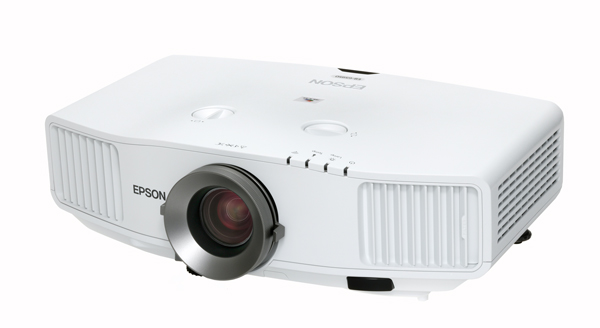

Epson EB-G5450WU

Epson EB-G5450WU

Installation Multimedia Projectors

Supreme Flexibility and Superior Image Quality in WUXGA Resolution



PRODUCT TYPE Portable Multimedia Projector
PRODUCT NAME Epson EB-G5450WU
PRODUCT CODE V11H346053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.76 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 2,304,000 pixels (1920 x 1200 x 3)
  Native resolution WUXGA
  Aspect ratio 16:10
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual: zoom / focus
(Specification for ELPLS05 standard lens. Sold separately.) F-number 1.65 - 2.55
  Focus length 21.28 - 37.94mm
  Zoom ratio 1:1.8
PROJECTION LAMP Type E-TORL 275 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE) 50 to 300 inch [1.36m to 8.38m] (Zoom: Wide),
50 to 300 inch [2.46m to 14.99m] (Zoom: Tele)
100" screen 2.76m – 4.97m
LENS SHIFT RANGE
  MANUAL Vertical +/-58% max
(upward / downward)
    Horizontal +/-9% max
(left / right)
BRIGHTNESS
  High Brightness Mode 4,000 Lumens Light Output
4,000 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 3,200 Lumens Light Output
3,200 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 1000:1
BRIGHTNESS UNIFORMITY 88%
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 7W monaural
FUNCTION Pointer, User Logo, A/V mute, Freeze, E Zoom, Test Pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK 13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input signal / Sync / Tracking / Position / Color temperature / Volume etc
FOOT ADJUSTER Front-centre / Rear side
TILT ANGLE -2.5  to 10 degrees
KEYSTONE CORRECTION Vertical: +/- 30 degrees (Zoom: Tele)
Horizontal: +/- 20 degrees (Zoom: Tele)

QUICK CORNER

Yes
SOURCE SEARCH              Yes
AUTO DETECTION OF RGB YCbCr Yes
MULTI SCREEN COLOUR ADJUSTMENT Yes
OPERATION PANEL PROTECTION Yes
PASSWORD PROTECTED Yes
HIGH ALTITUDE MODE Yes
COLOUR MODE PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customized
Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customized
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1920 x 1200 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL Video D-sub 15pin x1 Blue molding
5-BNC x1
  Audio Stereo mini-jack x 2
OUTPUT SIGNAL Signal Type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2-0.4 Vp-p)
OUTPUT TERMINAL Video D-sub 15pin x 1 Black molding
  Audio Stereo mini-jack x 1
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47Kohm
VIDEO INPUT TERMINAL Video

Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector)

  Audio

RCA (White/Red) x 1pair
(for Composite Video and S-Video)

HDMI
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
TMDS ( signal for HDMI )
INPUT TERMINAL Audio signal
Video
Linear PCM
HDMI x 1 (HDCP)
DVI-D
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
500 mVrms / 47 k-ohm
INPUT TERMINAL Video DVI x 1 (HDCP)
CONTROL I/O
Serial I/O I/O Terminal D-sub 9 pin x 1
  I/O Signal RS-232C
Remote Control Input I/O Terminal Stereo mini jack x 1
  I/O signal Epson Format
NETWORK I/O
USB I/O Type Type A x 1
  Wireless LAN unit Optional
  Wired LAN RJ45 x 1
Wireless Specification Supported speeds for each mode IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11a: 54Mbps

• Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

  Supported mode Adhoc, infrastructure
  Certification Wi-Fi Certified
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F), (20% - 80% Humidity unfrozen)
Thermal shutdown > 45 degree C
  0°C to 35°C (32°F to 95°F), (over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE 0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
COOL-DOWN PERIOD Instant Off
THEFT PROOF
  Wireless LAN Unit Lock Yes
  Security Cable Yes
  Kensington Lock Yes
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION
  Lamp On 393W
  Stand by ( network on ) 11W
  Stand by ( network off ) 0.47W
DIMENSION
EXCLUDE FEET 311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION 311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT Approx. 6.8Kg
FAN NOISE
HIGH BRIGHTNESS MODE 35dB
LOW BRIGHTNESS MODE 30dB
ACCESSORIES
POWER CABLE 3m
COMPUTER CABLE

1.8m, D-sub 15pin (Male - Male)

REMOTE CONTROL Included
BATTERY Alkaline AA x 2
USER MANUAL SET Included (CD-ROM)
PROJECTOR SOFTWARE Included (CD-ROM)
PASSWORD PROTECT STICKER Included
EASY MP
Function Projector control and projector management via network Email notification
SNMP
Crestron Integrated Partner / RoomView
Extron IP Link
PJ Link
AMX Device Discovery
Web Control

  PC FREE Yes
  Message Broadcasting Yes
  Multi PC Projection Yes
  Windows network projector Yes
  Quick Wireless Connection Yes
  Software EasyMP Network Projection V 2.70 (Win and Mac)
EasyMP Multi PC Projection V 1.00 (Win and Mac)
EasyMP Slide converter V.1.01 (Win only)
EasyMP Monitor Ver.4.50 (Win only)
  Security (Wireless LAN) WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC
LEAP, EAP-Fast/MS-CHAPv2, EAP-Fast/GTC
* Software compatible with MS Vista
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY 3 years*
*excluding lamp
* For more information visit Epson Projector Warranty
