| PRODUCT NAME |

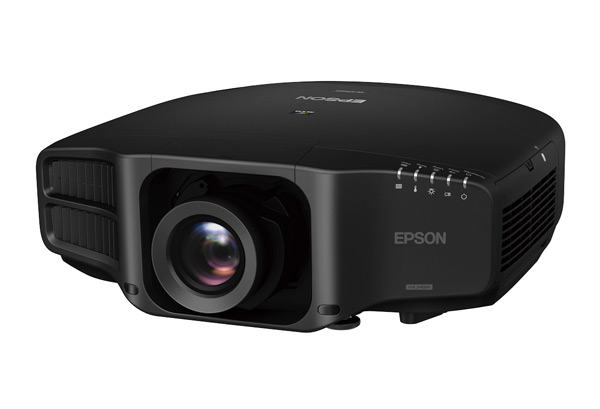

Epson EB-G7905UNL |
| PRODUCT CODE |
V11H749853 |
| WHAT'S IN THE BOX |
| |
EB-G7905UNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Cable Cover, Manual, Projection Software CDROM. (STD Lens not Included) |
| TECHNOLOGY |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.76-inch with D-MLA (D10, C2 Fine) |
| OPTICAL |
| Zoom |
1 - 1.6 (Optical) |
| Screen Size (LM08 Lens) |
50" to 300" [1.53m to 9.43m] (Zoom: Wide)
50" to 300" [2.48m to 15.10m] (Zoom: Tele) |
| Projection Distance (LM08 Lens) |
100" screen 3.11m - 5m |
| Throw Ratio |
1.44 (Zoom:Wide), 2.33 (Zoom:Tele) |
| Projection Lens F Number |
1.7-2.3 |
| Projection Lens Focal Length |
24mm - 38.2mm |
| Focus Method |
Powered |
| IMAGE |
| Colour Light Output |
7,000 Lumens |
| White Light Output |
7,000 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
50,000:1 |
| Lamp Hours |
3,000 hours (Normal)
4,000 hours (ECO) |
| Lamp Type |
400 W UHE |
| Keystone Correction (LM08 Lens) |
Vertical: -45 to +45 degrees
Horizontal: -30 to +30 degrees |
| Lens Shift |
Vertical: -67% to +67% (Powered)
Horizontal: -30% to +30% (Powered) |
| Tilt Angle |
-2 to 10 degrees |
| CONNECTIVITY |
| Input: Video |
1 x 5BNC |
| Input: Computer |
1 x D-sub 15-Pin (RGB) |
| Input: Digital |
1 x HDMI, 1 x DVI-D, HDBaseT |
| Input: Audio |
3 x Stereo mini |
| Input: Control |
1 x RS232c, 1 x Stereo mini (Remote) |
| Input: Network I/O |
1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) |
| Input: HDBaseT |
1 x RJ45 |
| Wireless Connectivity |
Optional |
| Output: Video |
1 x Monitor Out (via D-sub 9-pin) |
| Output: Audio |
1 x Stereo mini |
| ADVANCED FEATURES |
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
- |
| EasyMP Multi PC Projection |
Yes |
| Wireless LAN |
Optional |
| 4K Enhancement |
Yes |
| Lens Position Memory |
Yes (10 positions) |
| Split Screen |
Yes |
| Edge Blending |
Yes |
| Curved Screen Projection |
Yes |
| Corner Wall Projection |
Yes |
| Frame Interpolation |
Yes |
| 360 Degree Projection |
Yes |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington® – style lock provision
Wireless LAN Unit Lock
Security cable hole |
| Colour Modes |
Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection |
| GENERAL |
| Dimensions D x W x H (Including Feet) |
472 x 525 x 189 mm |
| Weight |
Approx. 12.9kg (Including LM08 Lens) |
| Lamp Warranty |
1 Year or 750 Hours* |
| Projector Warranty (Excluding lamp) |
3 Years** |
| Power Consumption: Lamp on |
572W |
| Power Consumption: Standby |
2.3W |
| Noise Level |
Normal/Eco: 39/31 dB |
| |
* Whichever comes first
** 15,000hrs for 24/7 use |
| PRODUCT OPTIONS |
| |
V12H004U03 |
Short Throw Lens 1 |
| |
V12H004U04 |
Short Throw Lens 2 |
| |
V12H004M08 |
Middle Throw Zoom Lens 1 |
| |
V12H004M09 |
Middle Throw Zoom Lens 2 |
| |
V12H004M0A |
Middle Throw Zoom Lens 3 |
| |
V12H004M0B |
Middle Throw Zoom Lens 4 |
| |
V12H004W05 |
Wide Throw Zoom Lens 1 |
| |
V12H004W06 |
Wide Throw Zoom Lens 2 |
| |
V12H004L08 |
Long Throw Zoom Lens |
| |
V13H010L93 |
Replacement Lamp |
| |
V13H134A30 |
Replacement Filter |
| |
V12H547053 |
HDBaseT Transmitter |
| |
V12H731P01 |
Wireless LAN adaptor |
| |
V12H005M09 |
Quick Wireless USB Key |
| |
V12H618P01 |
Polarizers for passive 3D |
| |
V12H802010 |
Low Profile Ceiling Mount |
| |
V12H803010 |
Standard Ceiling Mount |
| |
V12H003B22 |
ELPMB22 Ceiling Mount |
| |
V12H003P13 |
Extension Pole 668-918mm |
| |
V12H003P14 |
Extension Pole 918-1,168mm |
| |
|
|
