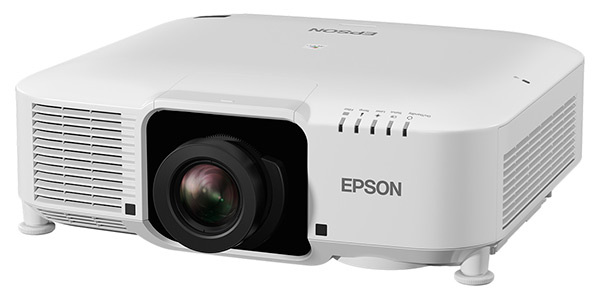

Epson EB-L1070UNL


Installation Multimedia Projectors

Superior image in any venue

  EB-L1070UNL Projector, 3m 10A Power Cable, Quick Start Guide, Remote Control, 2 x AA Batteries, Cable Cover, Lens connector cap, Registration Card
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.76-inch (D10)
Zoom 1 - 1.61 (Optical)
Screen Size (Standard Lens) 50" to 1000" [1.53m to 31.57m] (Zoom: Wide)
50" to 1000" [2.48m to 50.44m] (Zoom: Tele)
Projection Distance (Standard Lens) 100" screen 3.11m - 5m
Throw Ratio 1.44 (Zoom:Wide), 2.33 (Zoom:Tele)
Projection Lens F Number 1.7-2.3
Projection Lens Focal Length 24.0mm - 38.2mm
Focus Method Powered
Colour Light Output 7,000 Lumens
White Light Output 7,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 115 W
Keystone Correction (Standard Lens) Vertical: -45 to +45 degrees
Horizontal: -30 to +30 degrees
Lens Shift (Standard Lens) Vertical: -67% to +67% (Powered)
Horizontal: -30% to +30% (Powered)
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DVI-D, HDBaseT
Input: Audio 3 x Stereo mini
Input: Control 1 x RS232c, 1 x Stereo mini (Remote)
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit, Content Playback)
Input: HDBaseT 1 x RJ45
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini
Epson Projector Management (Network & Control) Yes
Epson iProjection (Multi-PC Projection) Yes
Epson Professional Tool Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Projection Yes
Corner Wall Projection Yes
Frame Interpolation Yes
360 Degrees Projection Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic, Presentation, Cinema, BT.709, Natural, DICOM SIM, Multi-Projection
Dimensions D x W x H (Including Feet) 484 x 545 x 189 mm
Weight 16.9
Projector Warranty 5 Years*
Power Consumption: LD On 299W
Power Consumption: Standby 2W
Noise Level Normal/Quiet: 36/30 dB
* Or 20,000 hours, whichever comes first.
PRODUCT OPTIONS Item Code Description
  V12H004X01 ELPLX01 Ultra Short Throw Zoom Lens
  V12H004U03 ELPLU03 Short Throw Lens 1
  V12H004U04 Short Throw Lens 2
  V12H004M08 ELPLM08 Middle Throw Zoom Lens 1
  V12H004M0F ELPLM09 Middle Throw Zoom Lens 2
  V12H004M0A ELPLM10 Middle Throw Zoom Lens 3
  V12H004M0B ELPLM11 Middle Throw Zoom Lens 4
  V12H004W05 ELPLW05 Wide Throw Zoom Lens 1
  V12H004W06 ELPLW06 Wide Throw Zoom Lens 2
  V12H004W08 ELPLW08 Wide Throw Zoom Lens 3
  V12H004L08 ELPLL08 Long Throw Zoom Lens
  V13H134A46 ELPAF46 Replacement Filter
  V12H547053 HDBaseT Transmitter
  V12H731P01 ELPAP10 Wireless LAN adaptor
  V12H003B22 ELPMB22 Standard Ceiling Mount (White)
  V12H802010 ELPMB47 Low Profile Ceiling Mount
  V12H803010 ELPMB48 Standard Ceiling Mount
  V12H003P13 Extension Pole 668-918 mm
  V12H003P14 Extension Pole 918-1,168 mm
