Epson EB-L1505UNL

Epson EB-L1505UNL

Installation Multimedia Projectors

Take Image Quality to New Levels

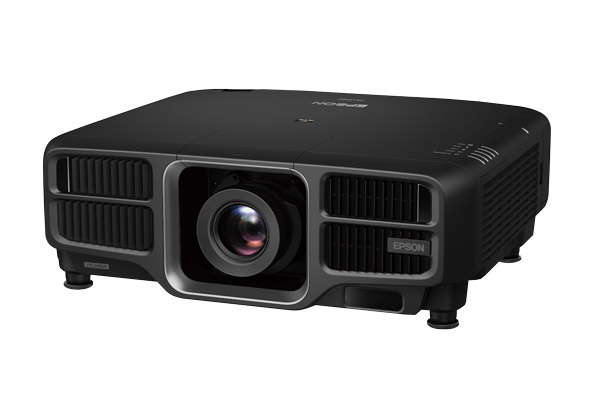

PRODUCT NAME Epson EB-L1505UNL
PRODUCT CODE V11H792853
WHAT'S IN THE BOX
  EB-L1505UNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Cable Cover, Manual, Projection Software CDROM. (Lens not Included)
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 1.03-inch (D10)
OPTICAL
Zoom 1 - 1.61 (Optical)
Screen Size (Standard Lens) 60" to 500" [1.99m to 17.17m] (Zoom: Wide)
60" to 500" [2.48m to 27.77m] (Zoom: Tele)
Projection Distance (Standard Lens) 100" screen 3.37m - 5.49m
Throw Ratio 1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number 1.8-2.5
Projection Lens Focal Length 36mm - 57.35mm
Focus Method Powered
Colour Light Output 12,000 Lumens
White Light Output 12,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 670 W
Keystone Correction (Standard Lens) Vertical: -45 to +45 degrees
Horizontal: -30 to +30 degrees
Lens Shift (Standard Lens) Vertical: -60% to +60% (Powered)
Horizontal: -18% to +18% (Powered)
CONNECTIVITY
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DVI-D, HDBaseT
Input: SDI 1 x BNC
Input: Audio 3 x Stereo mini
Input: Control 1 x RS232c, 1 x Stereo mini (Remote)
Input: Network I/O 1 x RJ45 (Art-Net), 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT 1 x RJ45 (Art-Net)
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection -
EasyMP Multi PC Projection Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Projection Yes
Corner Wall Projection Yes
Frame Interpolation Yes
360 Degrees Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 492 x 586 x 211 mm
Weight Approx. 23.6kg (Including LM09 Lens)
Projector Warranty 5 Years*
Power Consumption: LD On 908W
Power Consumption: Standby 2.3W
Noise Level Normal/Quiet: 39/33 dB

* Or 20,000 hours, whichever comes first.
PRODUCT OPTIONS Item Code Description
  V12H004U03 ELPLU03 Short Throw Lens 1
  V12H004U04 ELPLU04 Short Throw Lens 2
  V12H004M09 ELPLM09 Middle Throw Zoom Lens 2
  V12H004M0A ELPLM10 Middle Throw Zoom Lens 3
  V12H004M0B ELPLM11 Middle Throw Zoom Lens 4
  V12H004W05 ELPLW05 Wide Throw Zoom Lens 1
  V12H004W06 ELPLW06 Wide Throw Zoom Lens 2
  V13H134A51 ELPAF51 Replacement Filter
  V12H547053 HDBaseT Transmitter
  V12H731P01 Wireless LAN adaptor
  V12H005M09 Quick Wireless USB Key
  V12H618P01 Polarizers for passive 3D
  V12H802010 ELPMB47 Low Profile Ceiling Mount
  V12H803010 ELPMB48 Standard Ceiling Mount
