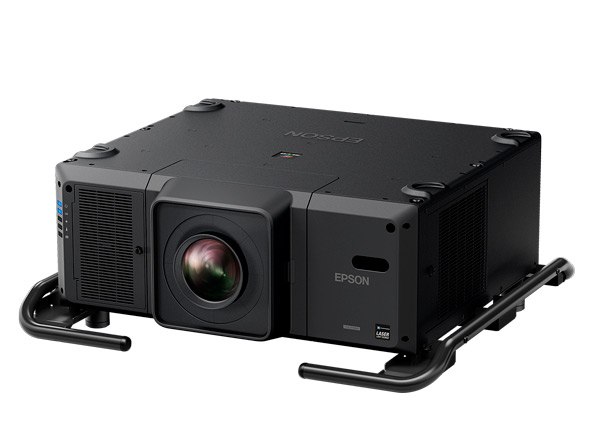

Epson EB-L25000UNL

Epson EB-L25000UNL

Installation Multimedia Projectors

Take Image Quality to New Levels



PRODUCT NAME Epson EB-L25000UNL
PRODUCT CODE V11H679853
WHAT'S IN THE BOX
  EB-L25000UNL Projector, 3m Power Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Manual. (Lens not Included)
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 1.43-inch (D8)
OPTICAL
Zoom (ELPLM12 Lens) 1 - 1.35 (Optical)
Screen Size (ELPLM12 Lens) 100" to 1000" [3.68m to 37.92m] (Zoom: Wide)
100" to 1000" [4.99m to 51.03m] (Zoom: Tele)
Projection Distance (ELPLM12 Lens) 200" screen 7.48 m - 10.11 m
Throw Ratio (ELPLM12 Lens) 1.74 (Zoom:Wide), 2.35 (Zoom:Tele)
Projection Lens F Number 1.9-2.1
Projection Lens Focal Length 54.7mm - 73.0mm
Focus Method Powered
Colour Light Output 25,000 Lumens
White Light Output 25,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 1,670 W
Keystone Correction (ELPLM12 Lens) Vertical: ±45°
Horizontal: ±30°
Lens Shift (ELPLM12 Lens) Vertical: ±65° (Powered)
Horizontal: ±30° (Powered)
CONNECTIVITY
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1x HDMI, 1x DVI-D, 1x HDBaseT, 1x BNC (SDI)
Input: Control 1x RS232c, 1x RJ45, 1x Stereo mini (Remote)
Input: Network I/O 1x RJ45 (Art-Net), 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT 1 x RJ45 (Art-Net)
Wireless Connectivity Optional
Output: Video 1x Monitor Out (via D-sub 15-pin), 1x BNC (SDI)
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection -
EasyMP Multi PC Projection Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Projection Yes
Corner Wall Projection Yes
Quick Corner Yes
Point Correction Yes
Frame Interpolation Yes
Superresolution Yes
360 Degress Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Colour Modes Dynamic, Presentation, Cinema, sRGB DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 860 x 790 x 378.5 mm
Weight Approx. 71.3kg (not including lens)
Projector Warranty 5 Years*
Power Consumption: LD On 2,390W
Power Consumption: Standby 0.5W
Noise Level Normal/Quiet: 49/41 dB

* Or 20,000 hours, whichever comes first.
PRODUCT OPTIONS Item Code Description
  V12H004R05 ELPLR05 REAR THROW LENS
  V12H004U05 ELPLU05 SHORT THROW LENS
  V12H004W07 ELPLW07 WIDE THROW LENS
  V12H004M0C ELPLM12 MID THROW LENS 1
  V12H004M0D ELPLM13 MID THROW LENS 2
  V12H004M0E ELPLM14 MID THROW LENS 3
  V12H004L09 ELPLL09 LONG THROW LENS
  V13H134A52 ELPAF52 Replacement Filter
  V12H547053 HDBaseT Transmitter
  V12H731P01 Wireless LAN adaptor
