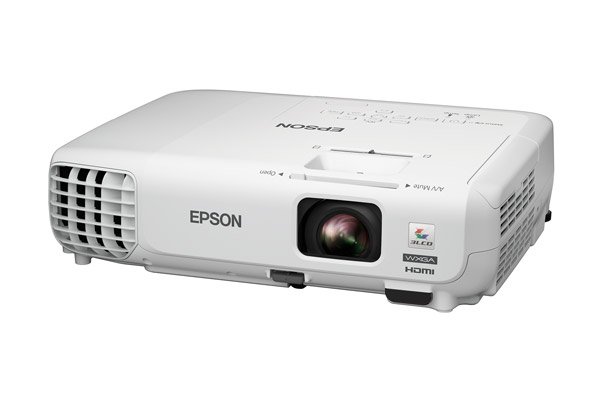

Epson EB-W120

Epson EB-W120

Corporate Portable Multimedia Projectors

Affordable wireless, widescreen performance in one portable projector



PRODUCT NAME Epson EB-W120
PRODUCT CODE V11H554153
WHAT'S IN THE BOX
  Power Cable, Remote Control + Batteries, User's Manual, 1.8m Computer Cable, ELPAP07 Wireless LAN Unit, Storage Case
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch without MLA (D8)
OPTICAL
Zoom 1 - 1.2 (Optical)
Screen Size 33" to 318" [0.9 to 9.0 m] (Zoom: Wide)
33" to 317" [1.08 to 10.8 m] (Zoom: Tele)
Projection Distance 60" screen 1.68 - 2.02 m
Throw Ratio 1.30 (Zoom: Wide), 1.56 (Zoom: Tele)
Projection Lens F Number 1.58 - 1.72
Projection Lens Focal Length 16.9 mm - 20.28 mm
Focus Method Manual
Offset 10:01
Colour Light Output 2,700 Lumens
White Light Output 2,700 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 10,000:1
Lamp Hours Normal: 5,000 Hours / Eco: 6,000 Hours
Lamp Type 200 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x Component (via D-sub 15-pin), 1 x HDMI
Input: Computer 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB 2.0 type A
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red / White), 1 x HDMI
Input: Control 1 x USB 2.0 type B
Input: Epson USB Document Camera Yes
Wireless Connectivity Included
Speaker Output 1W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington lock
Security cable hole
Password protect function
Colour Modes Dynamic, Presentation, Theatre, Photo, Blackboard, Whiteboard
GENERAL
Dimensions D xW x H 234 x 297 x 77 mm
Weight 2.4 kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 2 Years
Power Consumption: Lamp on Normal: 270W / Eco: 201W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal: 37dB / Eco: 29dB
PRODUCT OPTIONS Item Code Description
  V12H005M09 Quick Wireless Key
  V12H002S2Y Floor Standing Tripod Screen
  V13H010L78 Lamp – ELPLP78
  V13H134A32 Air Filter – ELPAF32
  V12H003B23 Ceiling Mount
  V12H003P13 Extension Pole 668-918mm
  V12H003P14 Extension Pole 918-1,168mm
