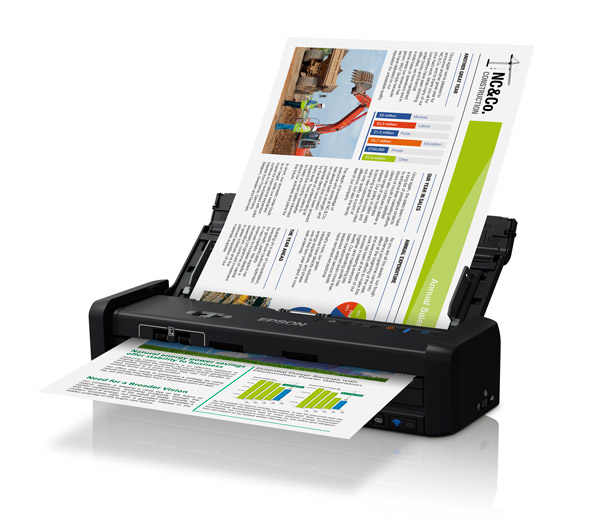

Epson WorkForce DS-360W

WorkForce DS-360W

Document Scanners

The wireless, compact duplex document scanner with exceptional speed



Epson WorkForce DS-360W B11B242501
SCANNER TYPE Sheet-fed, one-pass duplex A4 colour image scanner
OPTICAL RESOLUTION ADF: 600 x 600 dpi (Horizontal x Vertical)
SENSOR TYPE Contact Image Sensor (CIS)
LIGHT SOURCE 3 Colour RGB LED
MAXIMUM EFFECTIVE SCAN AREA
SIZE ADF: 215.9 x 1,117.6mm (Horizontal x Vertical)
GRAYSCALE 24-bit external
24-bit internal
COLOUR 48-bit external
48-bit internal
INTERFACE USB 3.0++
++The functionality of the USB port(s) must be ensured by the vendor of the Host.
USAGE
DAILY DUTY CYCLE 500 sheets
BUTTONS Power, Scan, Stop, Connect
SCANNING SPEED*
MONOCHROME
COLOUR
A4 300dpi
A4 300dpi
25ppm/50ipm
25ppm/50ipm
*Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting.
*Resolution : 200/300dpi, using AC adaptor
ADF
TYPE Sheet-fed through, duplex scanning
PAPER SUPPLY A4, A5, A6, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), No. 10 (Envelope), Letter,Letter Legal, Postcard, Business cards, Plastic cards
DOCUMENT SIZE Max. size: 215.9 x 1,117.6 mm
Min. size: 50.8 x 70 mm
PAPER SETTING CAPACITY 20 pages (75g/m2)
PAPER WEIGHT 50-230g/m2
FUNCTIONS
EASY DOCUMENT SCANNING Double sided scanning of PDF
Searchable PDF (Windows only)
Scan to Mutli PDF
Encrypted pdf
Compression pdf
Stand-Alone Application and Scan to File Feature
Multi Purpose User Interface
Auto Skew Correction
Multi Marquee
DOCUMENT IMAGE ADJUSTMENT Text enhancement
Colour enhancement
Dropout colour
Unsharp Mask
De-Screening with Document Type Optimiser
Tone Curve Adjustment with Histogram
SUPPORTED PLATFORMS
Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 11, Windows 10, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows 7, Windows 7 x64, Windows Server 2003 (32/64 bit), Windows Server 2008 (32/64 bit), Windows Server 2008 R2, Windows Server 2012 (64 bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP SP2 or higher
ENVIRONMENTAL CONDITIONS
TEMPERATURE 10°C to 35°C (Operating)
-25°C to 60°C (Storage)
HUMIDITY 20% to 80% without condensation (Operating)
20% to 85% without condensation (Storage)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC100-240V     50-60Hz
POWER CONSUMPTION Approx. 11W (Operating)
Approx. 0.8W (Sleep Mode)
Approx. 5.8W (Ready Mode)
Approx. 1.5W (Power Off)
BUNDLED SOFTWARE*
Epson Scan2
Epson Document Capture Pro
NewSoft Presto! Page Manager
Online User Guide
ISIS driver for Windows**
WARRANTY
12 months return to base Standard
Optional Additional 2 Year Warranty 3YWDS3630W
Epson Warranty
DIMENSIONS
WIDTH
DEPTH
HEIGHT
WEIGHT
288mm
88.5mm
67/5mm
Approx. 1.3kg

Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges.
