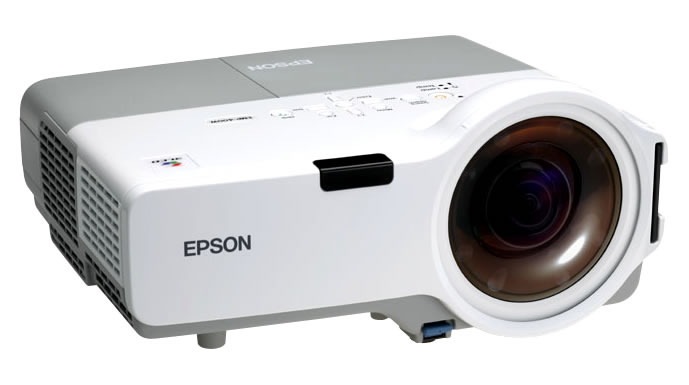

Epson EMP-400W
Entry Level Multimedia Projectors
Easier install ultra short focus projector. Less shadow and glare.
| PRODUCT TYPE | Entry Level Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | EMP-400W | ||
| PRODUCT CODE | V11H281053 | ||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.56 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 1,024,000 pixels (1280 x 800) x 3 | ||
| Native resolution | WXGA | ||
| Aspect ratio | 16:10 (which covers 16:9 and 4:3) | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz-60Hz | ||
| PROJECTION LENS | Type | Digital zoom / Manual focus | |
| F-number | 1.8 | ||
| Focal length | 6.48mm | ||
| Zoom ratio | 1.0 - 1.35 (Digital) | ||
| LAMP | Type | 170W UHE E-TORL | |
| Life | 4000Hr ( Low Brightness )# 3000Hr ( High Brightness )# | ||
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 50 to 110 inch [0.54 to 1.22 m] | ||
| BRIGHTNESS | |||
| High Brightness Mode | 1800 Lumens (Colour mode: Game) |
||
| Low Brightness Mode | 1420 Lumens (Colour mode: Game) |
||
| CONTRAST | 500:1 | ||
| BRIGHTNESS UNIFORMITY | 85% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | Simple Interlace - Progressive conversion | ||
| SOUND OUTPUT | 10W monaural | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz up to UXGA 60Hz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 85Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input
Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... / |
||
| FOOT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 13 degrees | ||
| KEYSTONE CORRECTION | Vertical: +/- 15 degrees | ||
| PASSWORD PROTECTED FUNCTION (security function) | Implemented | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1280 x 800 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | D-sub 15pin x 1 Blue moulding | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp) |
||
| OUTPUT TERMINAL | Video | D-sub 15pin x 1 (Black moulding) | |
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding |
|
| Audio | RCA x 1 (White/Red ) | ||
| CONTROL I/O | |||
| SERIAL I/O | Terminal | D Sub 9 pin x 1 | |
| Signal | RS-232C | ||
| Network Interface | RJ45 x 1 | ||
| EASY MP | |||
| FUNCTION | ESC/VP.net | ||
| E-mail notification | SNMP | Web control | PJ-Link | AMX Device Discovery compatible |
| SOFTWARE | EMP Monitor (for Windows) | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity ) | ||
| COOL-DOWN PERIOD | "Instant Off" | ||
| START-UP PERIOD | Approx. 5 seconds (warm up 30 seconds) | ||
| DIRECT POWER ON | Yes | ||
| DIRECT POWER OFF | Yes | ||
| POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | ||
| POWER CONSUMPTION | 100-240VAC 2.7-1.1A 50/60Hz Lamp 251W/236W (Lamp on) 4.2W/5.5W (standby, network off) |
||
| EXHAUST DIRECTION | Side | ||
| DIMENSION | |||
| EXCLUDE FEET | 258(D) x 327(W) x 95(H) mm | ||
| MAXIMUM DIMENSION | 272(D) x 327(W) x 157(H) mm | ||
| WEIGHT | Approx. 3.6kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 35dB | ||
| LOW BRIGHTNESS MODE | 28dB | ||
| WARRANTY | |||
| STANDARD WARRANTY | 3 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty Website | |||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| REMOTE CONTROL | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| Epson PROJECTOR SOFTWARE | CD-ROM | ||
| OWNER'S MANUAL | CD-ROM | ||
| PRODUCT OPTIONS | |||
| Item Code | Description | ||
| V13H010L42 | Lamp | ||
| 7012083 | Ceiling mount with telescopic pole | ||
| 7012084 | Ceiling mount standard | ||
| V12H003B24 | Short Throw Wall Mount | ||
| #Subject to operation and environmental conditions. | |||
