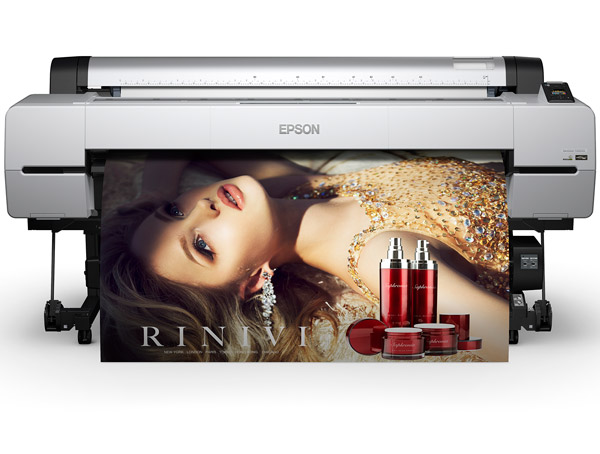

Epson SureColor P20070 - 64"

SureColor P20070 - 64

Large Format Printers

Faster Production
Better Quality
Lower Cost



SIZE
Max Print Width 64 inch (1,626mm) wide
Max Sheet Size Super B0
PRINT TECHNOLOGY
Print Head PrecisionCore™ Micro TFP head
Print Modes Uni & Bi-directional
Print Technology VSDT, auto head alignment, auto/manual nozzle checking, auto cleaning, ink repelling coating
Nozzle Configuration 800 per colour
Channels 10
Max Resolution 2400 x 1200dpi
Min Droplet Size 3.5pl
INK SYSTEM
Family Epson Ultrachrome® Pro
Type Aqueous all-pigment
Colours 10
Cartridge Size 700ml
PERFORMANCE (A1 sheet)
Draft 300 x 300dpi 0.4 minutes
Normal 300 x 600dpi 1 minute
Fine* 600 x 600dpi 1.9 minutes
Super Fine* 1200 x 1200dpi 3 minutes
Figures represent print times on Plain and Premium Photo(*) paper. Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors.
MEDIA SUPPORT
Format Roll and cut sheet
Size Roll: Width 254 (min) to 1626mm (max) Length 279 to 15,000mm, Diameter 170mm (max) Max weight 24kg Cut sheets: Width 210 (min) to 1118mm (max) Length 279 (min) to 1580mm (max)
Thickness 0.08-0.5mm roll / 0.08-1.5mm sheet
Min Margins 0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet
Loading Top manual sheet and top roll (spindle style with dual tension settings)
Handling Heavy-duty rotary auto-cutter & Media Barcode System
Manual Double Sided Printing Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output Front manual paper basket (able to hold one Super B0 print with a maximum length of approx. 1,580mm) and optional Auto Take-Up unit
OPERATION
Control Panel 2.7" Colour LCD
Interface High Speed USB 2.0
Ethernet 100Base-TX / 1000Base-T
Included Software Printer Driver, Epson Manual, Epson LFP Remote Panel 2, EpsonNet Config, Epson Software Updater, Epson Network Utilities
OS Compatibility Mac OS X10.6.8 or later, Windows XP/Vista/7/8/8.1 (32/64bit) or later
Software Compatibility Compatible with a wide range of design, production, workflow management and RIP software
Memory 1.5GB
Language ESC/P Raster
ENVIRONMENTAL
Operational Temp 10° to 35° C (15-25° C recommended)
Operational Humidity 20 to 80% with no condensation (40-60% recommended)
Power Supply 100 - 240 V, 50 Hz - 60 Hz AC, 5A
Power Consumption 95W Operating / 2.8W Sleep (1000 Base-T)
Operating Noise 51.1dB
PHYSICAL
Printer (no ink) 2415 x 976 x 1168mm (WxDxH), 171Kg
Recommended Operational Space 2.6 x 1.6 x 1.3m (WxDxH)
Packaging Printer, Stand & Starter Ink: 2.71 x 0.99 x 1.07m, 300Kg
(Important: Box must be shipped straight & level)
WHAT'S IN THE BOX
Printer, Stand, Power Cord, Set of 110ml Inks (note 30-60% may be used during initialisation), 1 x Spindle, 3 x Maintenance Tank, Output basket, Installation / Safety manual, Utility software & User manual (CD)
CONFIGURATION OPTIONS
C11CE20401 Printer with 1 Year On-Site Warranty**
SCP200703Y Printer with 2 Year CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCP200705Y Printer with 2 x 2 Year CoverPlus On-Site Service Packs (total 5 yrs cover)**
SCP20070P1Y Printer + Postscript, 1 Yr On-Site Warranty**
SCP20070P3Y Printer + Postscript, with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCP20070P5Y Printer + Postscript, with 2 x 2 Yr CoverPlus On-Site Service Packs (total 5 yrs cover)**
SCP20070PA1Y Printer + Postscript + ATU, 1 Yr On-site Warranty**
SCP20070PA3Y Printer + Postscript + ATU, with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCP20070PA5Y Printer + Postscript + ATU, with 2 x 2 Yr CoverPlus On-Site Service Packs (total 5 yrs cover)**
ACCESSORIES & OPTIONS
C12C932201 Auto Take-up Unit
C12C890121 Optional Roll Paper Belt
C12C932231 Additional Roll Adaptor
C13S210040 Replacement Auto Cutter Blade
C13T619300 Replacement Maintenance Tank
C13S090013 Cleaning Stick
C12C848031 HDD 320GB
1YWSCP20070 Additional 1Yr CoverPlus Onsite Service Pack (P20070)**
2YWSCP20070 Additional 2Yr CoverPlus Onsite Service Pack (P20070)**
** CoverPlus Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
