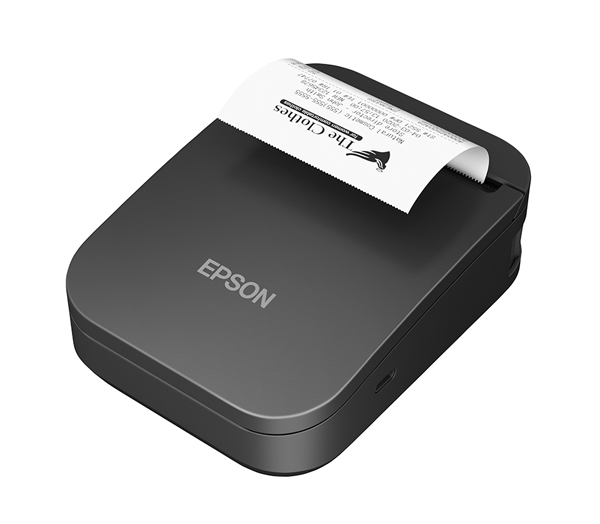

Epson TM-P80II

Epson TM-P80II

Mobile Printers

Rugged, Reliable and Ready to Go Mobile Printers

Model Name TM-P80II Series
Includes models
TM-P80II-801 (Bluetooth Connectivity) – C31CK00801
TM-P80II-811 (Wi-Fi Connectivity) – C31CK00811
TM-P80II-821 (Bluetooth Connectivity with Auto Cutter) – C31CK00821
TM-P80II-831 (Wi-Fi Connectivity with Auto Cutter) – C31CK00831
Print Method Thermal line printing
Print Font/Column Capacity 48 cpl mode: Font A: 12 x 24, 48 cpl
(default); Font B: 9 x 17, 64 cpl; 42 cpl mode: Font A: 13 x 24, 42 cpl; Font B: 9 x 17, 60 cpl
Character Size 48 cpl mode: Font A: 1.50 mm x 3.00 mm,
Font B: 1.125 mm x 2.13 mm; 42 cpl mode
Font A: 1.63 mm x 3.00 mm, Font B: 1.125 mm x 2.13 mm
2D Symbol Printing QR Code, Maxi Code, PDF417, Composite
Symbology, GS-1, Aztec, Datamatrix
Character Set 95 Alphanumeric, 48 International, 128 x 10 Graphic
Bar Code: : 1D: EAN-8, EAN-13, UPC-A, UPC-E, JAN13, JAN8, Code 39, Code 93, Code 128, ITF, CODEBAR, GS-1-128, GS1 DataBar, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded.
2D: QR Code, Maxi Code, PDF417, Composite, Data Matrix, RSS/GS1 and Aztec
Interfaces TM-P80II-801 : Bluetooth 5.0 (Classic + LE)
TM-P80II-811 : USB-C (built-in), Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz or 5 GHz band)
TM-P80II-821 : Bluetooth 5.0 (Classic + LE)
TM-P80II-831 : USB-C (built-in), Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz or 5 GHz band)
Print Speed Receipt mode 100mm/sec
Resolution 203 DPI × 203 DPI
Paper width 79.5mm
Paper Diameter (max.) 51mm
Reliability 10 million printing lines
Supported mobile operating systems WiFi (802.11): iOS, Android and Windows (Security Level WEP, WPA, WPA2-Enterprise)
Bluetooth: iOS, Android and Windows
Data Buffer 4096 bytes
Auto Cutter Reliability 500,000 Cuts on applicable models
Sensors Paper out, Cover open
LED Indicators Power LED, Battery LED (x3), Charging LED, Bluetooth Connection LED or Wi-Fi Connection LED, Error LED
Software ePOS-Print SDK, Windows driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux®), TM Virtual Port Driver
Power Lithium-ion battery pack, USB-C port
Battery Life1 TM-P80II-801 : 47 hours
TM-P80II-811 : 47 hours
TM-P80II-821 : 34 hours
TM-P80II-831 : 34 hours
Operating Temperature 0° C to 45° C
Drop rating* TM-P80II-801 / TM-P80II-811 = 1.8m
TM-P8011-821 / TM-P80II-831 = 1.5m
Overall Dimensions (mm) TM-P80II-801 : 104 x 137 x 56mm (w x d x h)
TM-P80II-811 : 104 x 137 x 56mm (w x d x h)
TM-P80II-821 : 104 x 153 x 66mm (w x d x h)
TM-P80II-831 : 104 x 153 x 66mm (w x d x h)
Weight (Approx) TM-P80II-801 : 363g
TM-P80II-811 : 363g
TM-P80II-821 : 590g
TM-P80II-831 : 590g
(Without roll paper & belt clip battery, belt clip)
Colour Epson Black (EBCK)
Warranty Standard two-year RTB warranty
Extended Warranty Options
1 Year Extended Warranty Code : 1YWP80II
2 Year Extended Warranty Code : 2YWP80II
Options Battery (OT-BY80II) C32C882301
Single-Battery Charging Cradle (OT-SB80II) C32C882A8541
Quad-Battery Charging Cradle (OT-CH80II) C32C882A8521
Belt Strap (OT-BE01) C32C882321
Shoulder Strap (OT-SH01) C32C882331
Soft Case (OT-PC80IIAC) C3C882361
1 Battery life will vary considerably depending on connectivity (Wi-Fi or Bluetooth) usage and environment. Battery life estimation for TM-P80II-801/TM-P80II-811 estimate is 47 hours, whereas TM-P80II-821/TM-P8011-831 is 34 hours.

* Drop rating of TM-P80II-801 and TM-P80II-811 is 1.8m, however TM-P8011-821 and TM-P80II-831 is 1.5m.
Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
