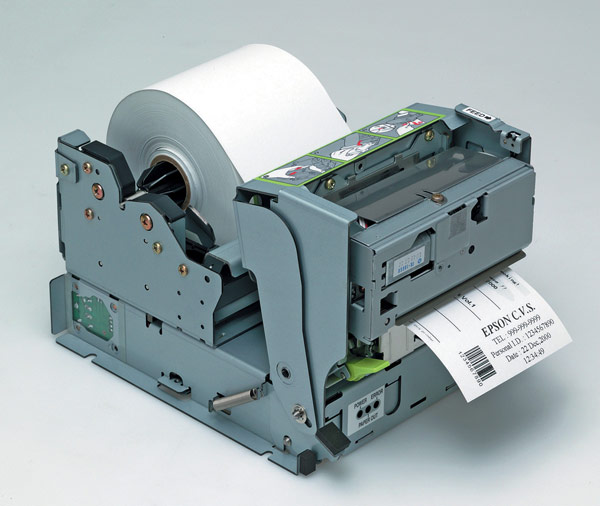

Epson EU-T300 Series
Embedded Units
Compact and Easy to Use
Embedded Units |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINTING METHOD | Thermal line | |||||
| PAPER PATH | Straight | |||||
| PRINT FONT | ||||||
| FONT | Font A : 12 x 24 Font B : 9 x 17 Kanji : 24 x 24 |
|||||
| COLUMN CAPACITY | Font A : 48 columns Font B : 64 columns kanji 24 columns (When paper width is 79.5 mm) |
|||||
| CHARACTER SIZE | 1.25 (W) x 3.0 (H) mm (Font A) 0.88 (W) x 2.13 (H) mm (Font B) |
|||||
| CHARACTER SET | 95 Alphanumeric, 37 International, 128 x 11 Graphic | |||||
| INTERFACE | RS-232 IEEE 1284 Bi-directional parallel / USB |
|||||
| DATA BUFFER | 4KB | |||||
| PRINT SPEED (Max) | 150 mm / sec. | |||||
| PAPER DIMENSIONS | 57.5 / 59.5 / 79.5 / 82.5 ± 0.5 mm x dia. 152.4 mm max. |
|||||
| PAPER THICKNESS | 0.06~0.15 mm | |||||
| POWER | 24 VDC ± 2.4 V | |||||
| POWER CONSUMPTION | Approx. 2.1 A (print duty 25%) | |||||
| OPERATING TEMPERATURE | 0 to 55°C | |||||
| RELIABILITY | ||||||
| MCBF | Mechanism : 37,000,000 lines | |||||
| PRINTER LIFE | Mechanism : 15,000,000 lines Thermal head : 100 km (62.14 miles) |
|||||
| POWER SUPPLY (option) | PS-180 | |||||
| FACTORY OPTIONS | Multilingual Font Set | |||||
| DIMENSIONS | 153mm (W) x 236.4mm (D) x 149.8mm (H) (6" type) | |||||
| WEIGHT | Approx. 2.5 / 2.6 kg (6" type) | |||||
Usage Conditions
Epson products are designed and made to give highly reliable use
and long life when used according to its specifications. With any system, product
or device used in situations where human life may be involved or at risk,
Epson advises that you should take all necessary steps to ensure the suitability
of your Epson product for inclusion in your system, and recommends that you
include fail-safe procedures and redundancy support or backup equipment in your system,
to maintain the maximum safety margin and optimum system reliability.
