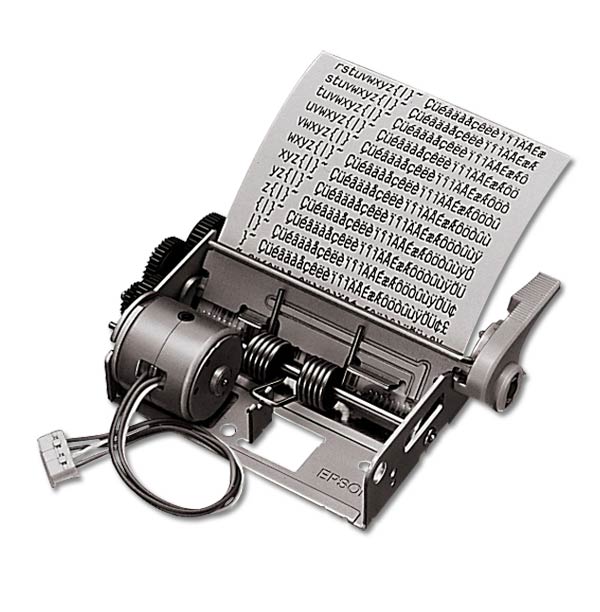

Epson M-T102 Series
Thermal Mini Printers
The M-T102 thermal printing series are powerful, but compact.
Impact Mini Printers |
|||
| PRINTER | |||
|---|---|---|---|
| PRINT METHOD | Thermal line | ||
| PRINTING FORMAT | |||
| NUMBER OF TOTAL DOTS | 384 dots/line | ||
| RESOLUTION | 8 dots/mm | ||
| PRINTING WIDTH | 48mm | ||
| PRINTING SPEED | Approx.40mm/sec(at 6.0 V) | ||
| PAPER FEEDING | |||
| PAPER FEEDING PITCH | 0.0625mm | ||
| PAPER FEEDING SPEED | Max.60mm/sec. Approx.40mm/sec(at 6.0 V) | ||
| SENSOR | |||
| PAPER END | Photosensor | ||
| PRINTHEAD TEMPERATURE | Thermistor | ||
| PRINTHEAD UNLOAD | Microswitch | ||
| POWER SUPPLY VOLTAGE | 5.0 to 7.5 VDC(for printhead & motors) 5VDC ± 5%(printhead control & sensors) |
||
| CONNECTOR | |||
| PRINTHEAD | Pin connector | ||
| MOTOR | Pin connector | ||
| PAPER DIMENSIONS | 57.5±0.5mm(W) dia.50mm | ||
| PAPER THICKNESS | 0.065mm ± 0.005mm | ||
| AMBIENT TEMPERATURE | 0°to ± 50° | ||
| RELIABILITY (MCBF) | 5*106 lines | ||
| CONTROL LSI | LA-T101 | ||
| OPTIONS | Mounting Attachment | ||
| OVERALL DIMENSIONS | 69.5mm (W) x 51.2mm (D) x 20mm (H) | ||
| WEIGHT | Approx. 85 g | ||
Usage Conditions
Epson products are designed and made to give highly reliable use
and long life when used according to its specifications. With any system, product
or device used in situations where human life may be involved or at risk,
Epson advises that you should take all necessary steps to ensure the suitability
of your Epson product for inclusion in your system, and recommends that you
include fail-safe procedures and redundancy support or backup equipment in your system,
to maintain the maximum safety margin and optimum system reliability.
