Epson SurePress L-6034VW

SurePress L-6034VW

Industrial Products

More Than A Digital Press -
A Whole New Approach to Greater Profitability

The Epson SurePress™ range represents a breakthrough in label production. It has never been easier to go digital and you can do it with machines that are compact, offer wide media compatibility and high production flexibility. Equipment is easy to install, easy to maintain, and cost effective to run. Jobs can be set-up and completed quickly with low wastage and minimum labour. They produce output with outstanding print quality that is suitable for a wide range of consumer and industrial applications.

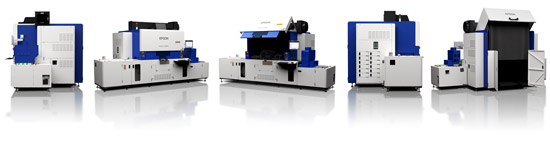

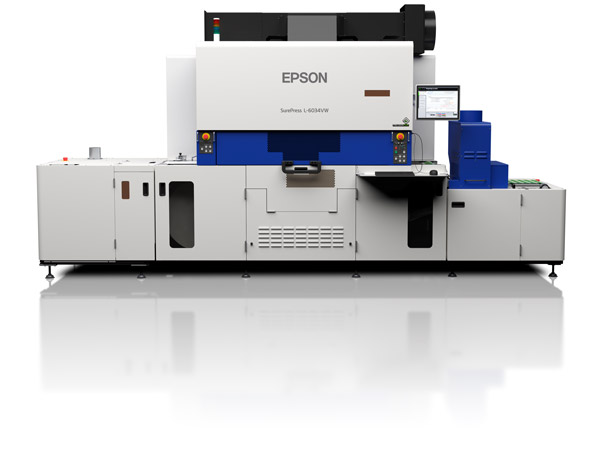

The SurePress L-6034VW digital label press features Epson’s latest heat-free PrecisionCore® line ink-jet printhead technology and industrial grade Epson UV ink. It is designed for converters who wish to produce quality labels with a durable finish in short to medium print runs. The press is compatible with a wide range of paper and film stocks, producing high resolution output with outstanding scratch and weather resistance. Jobs are quick to set up and fast to complete with minimum effort and wastage. Machines are compact, cost effective to run, and can be managed by a single operator. Output is compatible with a wide range of industry standard finishing equipment to enable a low set-up cost with maximum production flexibility. The press is packaged with ESKO RIP software and can be ordered with an optional X-Rite spectrophotometer for work with custom media.

  • Superior Print Quality – Epson heat-free PrecisionCore line heads with 600 x 600dpi max resolution, VSDT, and in-line pinning.
  • Superior Colour with an Outstanding Finish & Print Durability – 5 colour UV ink set with an enhanced gamut + White, selectable Digital Multi-Varnish, optional integrated colour management.
  • Fast Job Turnaround – Fast media loading, rapid configuration, digital image processing, supports production speeds up to 15m/ minute1.
  • High Production Flexibility – Variable frame lengths, variable print lengths, fully adjustable label sizing, compatible with a industry standard substrates from 80-340mm wide, integrated re-winder; optional in-line curing, in-line corona treatment, X-Rite spectrophotometer and variable label content support.
  • Easy Operation – Touch-screen display with simple menu structure and user-adjustable pre-sets, supplied with a choice of RIP software.
  • Reduced Running Costs – Cost-effective bulk ink system, achieves print speed rapidly for reduced substrate wastage, single operator management with minimum job oversight, automated nozzle status checking and head cleaning, reduced cleaning/ mechanical maintenance and system downtime .
  • Simplified Installation – compact & space saving design, requires a basic ozone extraction system, supplied and installed by Epson in conjunction with authorised dealer/integrators2.
  • Simplified Handling with Reduced Environmental Impact – no film or plates, ink shipped in crushable bags & loaded via re-usable vacuum cartridges.

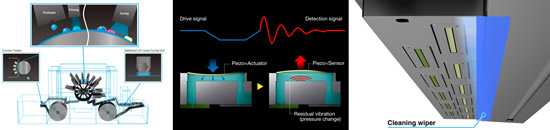

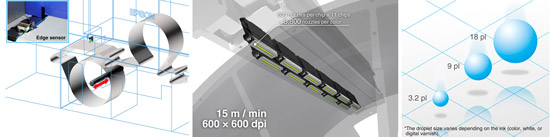

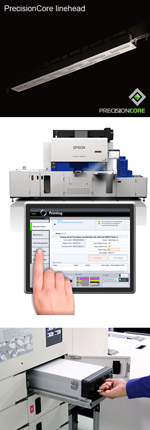

The L-6034VW digital label press features advanced Epson heat-free PrecisionCore® line inkjet print-head technology with multiple heads positioned around a rotating drum with LED partial curing (pinning) lights. The large drum and cool LEDs ensure consistent and predictable imaging with minimal media expansion/ shrinkage while an advanced web transport system with direct steering ensures precise tracking. Each head incorporates hundreds of micro-fine nozzles that are precision engineered with an electro-mechanical operation for ultra-precise drop formation and placement. The heads enable superior and consistent print with remarkably sharp detail. Labels can be produced with crisp small type, fine line art, and extremely accurate bar codes. Integrated Epson Variable-Sized Droplet Technology (VSDT) enables different sized droplets to be produced for smooth gradations, optimum ink application and minimum consumption.

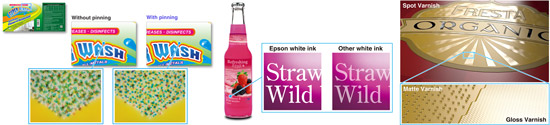

UV ink3 provides excellent weather, scratch, chemical, and water resistance. The Epson formulation features an advanced construction that provides an enhanced gamut with brighter colour. It was developed specifically for industrial label production and is manufactured to extremely high precision under an ultra-clean environment for consistent and predictable performance. It adheres directly to a wide range of substrates including paper, clear and metalized films, without the need for surface treatments or coatings. It ships in large and cost-effective bags that are not only efficient to transport and store, but are also crushable for easy disposal. The colour set incorporates a high-opacity White ink that can be applied in-line as a surface colour or as a separate layer in a multi-pass print run. It also includes a Digital Multi-Varnish that can be applied with a selectable matte or gloss finish, on a spot basis or as a wash, for additional durability and presentation value. An optional in-line corona treater is available while the integrated in-line pinning system ensures dot shape and positioning is maintained for superior imaging with precise edge definition, even tonal gradations, and low graininess. The in-line pinning system ensures accurate dot shape and positioning for superior imaging with precise edge definition, even tonal gradations, and low graininess. With SurePress you can produce premium quality output that is predictable and consistent with a finish that is durable, bright and packed with punch.

Epson's SurePress™ digital label press provides an innovative solution for short to medium run print jobs. The digital process ensures make-ready time is dramatically reduced while substrate changeover is quick and easy. An integrated take-up and optional in-line UV curing unit enable roll to roll production with no requirement for colour adjustment or drifts in the registration mark, from the first frame to the last. The press requires minimum oversight and can be managed by a single operator via a simple menu driven touch-screen panel with user-configurable pre-sets. There is none of the plate or film waste involved with traditional print processes and the press achieves print speeds quickly for minimum media wastage. Short-run jobs that were traditionally difficult, time consuming and costly, can be produced quickly, efficiently and profitably. Ink bags are loaded via clean and convenient reusable cartridges. They are inserted in pairs for maximum capacity and can be replaced while printing continues. The UV pinning system features long-life LEDs while the print-heads incorporate an advanced nozzle status analysis and error detection system that requires no ink ejection and operates continuously, engaging a cleaning wiper automatically as and when required.

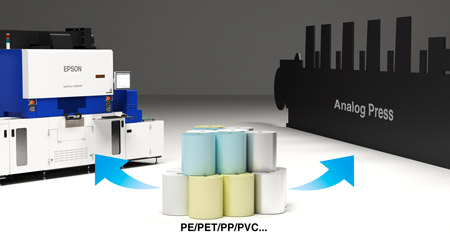

The L-6034VW not only delivers on print quality and operational ease, but also output versatility. It prints in adjustable frames up to 1000mm in length on a huge variety of off-the-shelf substrates up to 320 micron thick and 340mm wide. An optional in-line corona treater provides enhanced media support while the LED pinning system enables operation with heat-sensitive substrates such as PE. An optional in-line curing system works with the integrated re-winder to enable rapid roll-to-roll production with adjustable tension control to suit wide range of industry standard finishing equipment. The LED pinning system provides support for heat-sensitive substrates such as PE while the integrated re-winder and optional in-line curing system enable rapid roll to roll production. Precision alignment and adjustable tension control on the re-winder ensure output rolls are suitable for a wide range of industry standard finishing equipment. Installing an Epson SurePress will not only boost your marketability but leave you amazed at how flexible and cost effective your operation can become.

Driving our best-in-class digital label press is achieved through the use of RIP package from ESKO. The ESKO RIP  software has been designed to enable simple, flexible, and intuitive production. Options are available to support workflow control, colour management and advanced functionality. An optional i1Pro X-Rite spectrophotometer with appropriate software gives you the ability to create ICC profiles for custom media substrates with colour-accurate results that can be repeated job after job. With optional variable data support you can even output super-premium jobs with serialised, application and customer specific content. By listening to customers and working with industry-leading manufacturers on every aspect of production, Epson has been able to offer a new open approach that makes adoption of digital label production an easy and cost-effective choice.

Epson's L-6034VW comes will all the tools you’ll need to not only enter the world of digital label printing, but make it profitable. With a SurePress you have potential to achieve impressive, professional results, quickly and efficiently. You can offer superior product quality, provide faster job turnaround and boost your bottom line with a wider range of customer-centric print solutions. It's never been easier to go digital.

1 Actual production speeds and resolutions will depend on the substrate, RIP and output quality requirement. Refer to specifications for further information.
2 A PC and server with reasonable processing power, memory, storage, and networking facilities (with Web access) will be required. Delivery, installation and after-sales service is co-ordinated by Epson Australia in conjunction with our Authorised Reseller network. It does not cover any work &/or costs associated with connection to the electrical supply, building alterations and room refurbishments. Please consult Epson or one of our Authorised Resellers for further details.
3 Epson SurePress UV ink is not intended for direct food contact printing.
