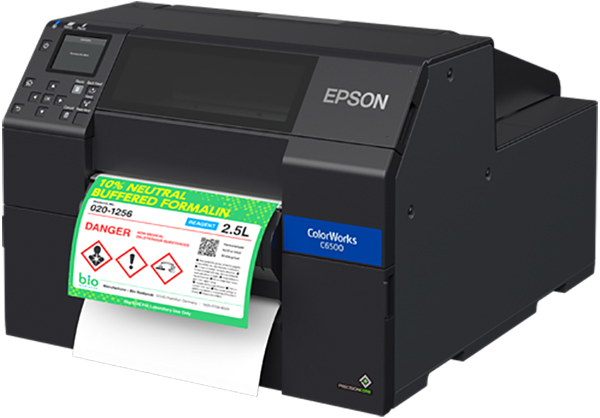

Epson ColorWorks C6510P

ColorWorks C6510P


PRINTER
PRINT METHOD Serial inkjet (PrecisionCore TFP)
PRINT SPEED 85 mm/s (max)
PRINT RESOLUTION 1200 dpi x 1200 dpi (max)
PRINT WIDTH Max. 211.9 mm
COLOURS 4 colours
MEDIA
PRINTING METHOD Serial inkjet (PrecisionCore TFP)
FORMAT Roll media, fanfold media
TYPE Matte paper label, synthetic label, glossy paper label, glossy film label, high glossy paper label
ROLL MEDIA SHAPE Continuous label (BM or w/o BM), Die-cut label (Gap or BM)
FANFOLD MEDIA SHAPE Die-cut label (BM)
ROLL DIAMETER Max. 152.4 mm
MEDIA WIDTH
(back paper width)
50.8 mm – 112 mm
GENERAL
INTERNAL CORE DIAMETER 76.2 ± 0.5 mm
CARRIAGE LIFE 6 mil. Pass
PAPER FEEDING MECHANISM LIFE 200 km or 1.5 mil. Pages
POWER 100 ~ 240V AC
OPERATING 230V: average consumption 38.7W
STAND-BY 230V: average approximately 5.82 W
POWER OFF STATE 230V: average approximately 0.24 W
INTERFACE USB2.0, Ethernet 1000Base-T / 100Base-TX / 10Base-T
EXTENDED INTERFACE Dsub-25 pin
PRODUCT DIMENSIONS 444 x 515 x 326 mm (width x depth x height)
WEIGHT* Approx. 26.3 kg
*Not including the ink cartridge and roll media
S/W COMMAND ESC / Label
OPERATING SYSTEMS Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008

R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8, Mac OS X 10.7.x, Mac OS X 10.8.x, Mac OS X 10.9.x,
Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.14.x
WARRANTY One year
WHAT'S IN THE BOX ColorWorks CW-C6510P printer, AC power cord, Full-capacity ink cartridges, Maintenance box,
Instruction sheet, CD with utilities and manuals
ORDERING INFORMATION
PRINTER
ColorWorks C6510P (Peeler) CW-C6510P
Paper Holder C6500 (optional) C32C881101
CONSUMABLES
SJMB6500 C33S021501
SJIC36P-K C13T44C140
SJIC36P-C C13T44C240
SJIC36P-M C13T44C340
SJIC36P-Y C13T44C440

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
