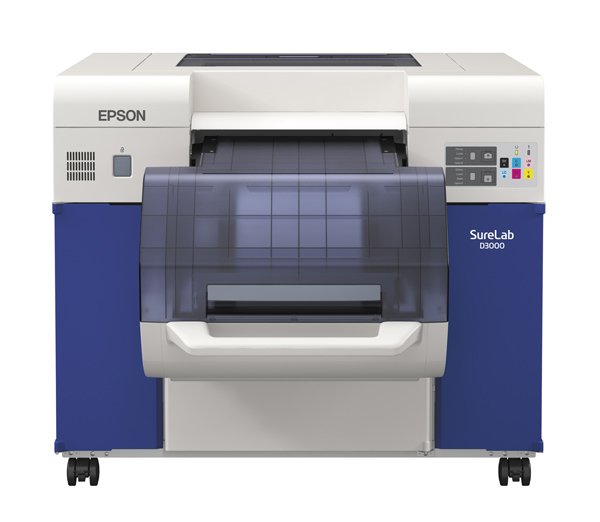

Epson SureLab D3000 - Dry-film Minilab

Epson SureLab D3000 - Dry-film Minilab

Max Print Size 12 x 48 inch (borderless)
Description Commercial Photo Printer (high durability)
Form Factor Floor-standing
Main Print Head Epson Micro Piezo™ with VSDT and Auto Nozzle Checking
Print Mode Bi-directional
Nozzle Configuration 736 per colour
Maximum Resolution 1440 x 1440dpi (Gloss & Lustre) / 720 x 720 dpi (Matte)
Minimum Ink Droplet Size 1.5pl
Back Print Head Dot matrix 40 character x 2 lines (7x9 dot/char)
Family Epson Ultrachrome™ D6
Type Aqueous Dye
Colours C+Y+M+K+Lm+Lc
Cartridges 700ml per colour
Time to Start Up 500s
Time to Shut Down 70s
Time to First Print 80s (from sleep)
Standard Gloss/Lustre/Matte (720x720dpi) 750 5“x3.5“prints per hour
650 6“ x 4“ prints per hour
260 10“x8“ prints per hour
Quality Gloss/Lustre (1440x1440dpi) 190 5“x3.5“prints per hour
150 6“ x 4“ prints per hour
60 10“x8“ prints per hour
Standard Matte (720x720dpi) 750 5“x3.5“prints per hours
Figures are provided for comparison purposes only. They represent average and/or typical times based on internal Epson testing using a printer PC. Print speeds are based on a job containing 20 natural RGM jpeg images with 100 prints made borderless, computed from the time taken for the first print to exit to the last. Actual performance will vary depending on a number of factors including image type, size and resolution, processing power (Operator PC, Printer PC & Printer), environmental conditions and networking, print mode, media type and size.
Roll Format Single or dual roll with 3” core, 220-285gsm, 100m max length
Roll Specifications Main Roll: 102mm (4"), 127mm (5”), 152mm (6”), 203mm (8”), 254mm (10”) &305mm (12") with optional 210mm (A4) widths, max 8.5kg weight
Secondary Roll (Dual Roll model only): 102mm (4") to 203mm (8") wide, max 7.5kg weight
Max Print Width 306.5mm (12”)
Print Lengths 89mm (3.5”) to 1219mm (48”)
Loading Method Spindle Based
Media Support Epson Gloss, Lustre & Matte paper (refer to consumables tab on this web site for the full list of currently approved media)
Print Format Bordered and Borderless
Media Handling Integrated Humidity Control, De-curling, Back Printing, Auto Cutter & Output Heater/Dryer
Waste Management Reusable high capacity paper cut waste bin & replaceable waste ink (maintenance) tank
Output Method Printer Only: Rear with extendable integrated stacker (50 x 12” x 8” / 30 x 12” x 12”/ 1 x 12” x 18” sheets max) and optional (slot-in) large print stacker
Printer with Sorter: front right 10 job trays (50 x A4 max sheets each tray), left rear single tray (50 x 12” x 12” max sheets), front top (30 x 12” x 12” max sheets or 1 x 12” x 48” sheet)
Control Panel 18 Colour LED status lights + warning alarm
Colour Modes Adobe RGB, SRGB, ICM, manual correction & no correction
Interface USB 2.0 High Speed (requires a Printer PC for connection & operation)
Compatibility User/Operator PC running 3rd party software & SureLab printer driver: Core2 Duo 2GHz or better processor with Win 7 Pro (32/64bit) or later, 2GB or more memory (4GB or more recommended) & 200MB or more storage (500GB or more recommended)
Operator PC running Order Controller software: Core2Duo 2GHz or equivalent (Core i5 2.5GHz or faster recommended) with Win 7 Pro (32/64bit) or higher, 2GB memory (4GB or more recommended), 250MB storage (500GB or more recommended), 1280x1024 24-bit or higher display
Printer PC Specification: 2.4GHz i5 or better processor with Win 7 Pro (32/64bit) or higher, 2GB or more memory (4GB recommended), 40GB or more storage, High Speed USB 2.0 & Ethernet interfaces
Physical (WxHxD) Single Roll: 850 x 727 x 759mm, 119Kg (no stand, consumables or options)
Single Roll with Sorter: 1,266 x 817 x 1,155mm, 157Kg (no stand, consumables or add options)
Dual Roll: 850 x 727 x 1,134mm, 127Kg (no stand, consumables or add options)
Dual Roll with Sorter: 1,266 x 817 x 1,530mm, 165Kg (no stand, consumables or add options)
Duty Cycle 3,000,000 prints*
Paper Storage 15° to 25° C, 20 to 80% Humidity (Gloss, Lustre & Matte media)
Operational Temp 15° to 30° C (Gloss & Lustre media) / 15° to 25° C (Matte media)
Operating Humidity 30 to 60% (Gloss & Lustre media, no condensation) / 40 to 60% (Matte media, no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz, 6A @ 220-240V
Power Consumption 500W Operating, 60W Sleep
Operating Noise 60dB
Installation Requirements (WxHxD) Single Roll: 1,350 x 817 x 1,955mm, 170Kg (no stand)**
Single Roll with Sorter: 1,632 x 817 x 1,955mm, 220Kg(no stand)
Dual Roll: 1,350 x 817 x 1,955mm , 230Kg (no stand)**
Dual Roll with Sorter: 1,632 x 817 x 1955mm , 280Kg (no stand)

IMPORTANT: to ensure consistent and reliable output it is recommended that this printer and any associated media be stored and operated in air-conditioned environment with humidity control.
Packaging Dimensions*** (WxHxD) Single Roll Printer: 1,310 x 920 x 1,070mm, 142Kg including pallet
Dual Roll Printer: 1,310 x 920 x 1,070mm, 150Kg including pallet
Sorter: 1,325 x 831 x 725mm, 58Kg including pallet
What’s in the Box Printer, Power Cord, 1.5m USB cable, 700ml Ink set, 1 x Standard Media Spindle, 2 x Paper Bands, 1 x Paper Storage Case, 2 x Gloss Media Rolls, 2 x Lustre Media Rolls, 1 x Matte Media Roll, 1 x Maintenance Tank, 2 x Ribbon Cassettes, 2 x Cleaning Sheets, Cleaning Cloths, User Guide & Warranty Info, Windows Printer Driver & System Software on CD. An additional Standard Media Spindle is supplied with the Dual Roll configuration.

IMPORTANT: Some proportion of the included ink will used to 'prime' the printer during the initial set-up. It is recommended that an additional set be purchased to enable subsequent production work. Connection and operation will require the separate purchase of an appropriately configured Printer PC.
Delivery & Install Please contact your Epson Authorised Surelab dealer for details on delivery and installation.
Service & Support Support and Service is provided via authorised Epson authorised Photo Lab Dealers. If you have a problem with a SureLab printer, a related option or consumable, please contact your dealer for initial problem evaluation. Should a printer require service this will be provided on-site free of charge within the period covered by your Warranty and any optional CoverPlus Pack. Travelling charges may apply for equipment located outside major metro areas &/or with difficult access. IMPORTANT: Provision of service and support is subject a range of conditions including correct installation, operation in an appropriate environment, regular and appropriate user maintenance (as directed by the machine &/or in the user manual), and use of correct Epson consumables including ink, media, ribbons, and maintenance items (details can be found on the consumables tab of this web site). Customers are recommended to review the Epson SureLab Printer Warranty for additional terms and conditions prior to purchase.
SLD3000SR1Y Single Roll with 1Yr Warranty
SLD3000SR3Y Single Roll with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)****
SLD3000DR1Y Dual Roll with 1Yr Warranty
SLD3000DR3Y Dual Roll with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)****
C12C811371 Single Roll with 1Yr Warranty
SLDSTR1Y Sorter Unit (requires Order Controller for operation)
C12C843926 Epson Order Controller software
C12C848061 Epson Layout & ID Software (requires Order Controller)
C12C844121 Printer Stand (lifts printer 349mm, locks printer casters & incorporates additional casters)
C12C844121 Sorter Stand (lifts sorter 349mm, locks sorter casters & incorporates additional casters)
C12C890851 Standard Media Spindle (supports all sizes except A4)
C12C890861 210mm Media Spindle & Adaptor Kit (supports A4, 4”, 5”, 6”, 10” & 12”)
2YWSLD3000 2 Year Service Pack (covers printer & sorter, included with all 3Yr Warranty configurations)
SL-D700 Epson SureLab D700 Desktop Commercial Photo Printer
P5070 Epson SureColor P5070 17" Large Format Graphic Printer
P7070 Epson SureColor P7070 24" Large Format Graphic Printer
P9070 Epson SureColor P9070 44" Large Format Graphic Printer
PP-100III Epson DiscProducer CD/DVD burn and print system (100 disc capacity)
* This is the maximum number of prints (6”x4”) that the major mechanical &/or electrical components are rated for before requiring overhaul &/or replacement. The duty cycle rating does not represent a warranty against component or system failure
** Additional space may be required if an optional print stacker is installed
*** Consumables, documentation and any additional options included with each configuration will be shipped separately with additional volume and weight requirements
****Printers are covered by a comprehensive 1 year warranty that covers all non-consumable parts (Including Print Heads) & labour with free-on-site service in nominated metro areas (locations outside of these will attract an additional travelling charges). Cover can be extended up to a maximum of 3 years through purchase of optional CoverPlus packages. Important: Cover may be restricted or denied if the user does not perform maintenance & cleaning as outlined in the user guide &/or advised by Epson, if equipment is used outside of specification &/or with consumables other than those recommended by Epson Australia. Please refer to the warranty section of this web site for additional details and contact Epson or one of our Authorised Resellers if you have questions.
