Back catalogue – Epson TM-S1000

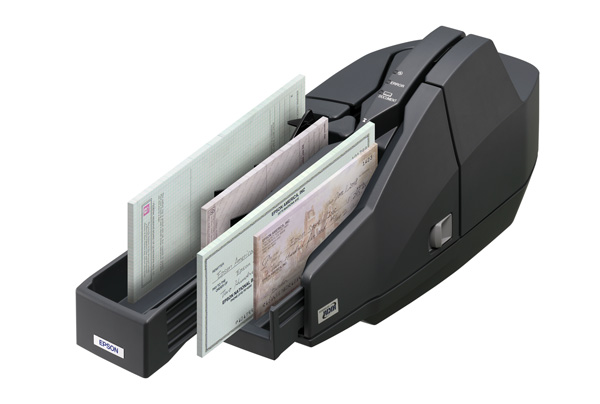

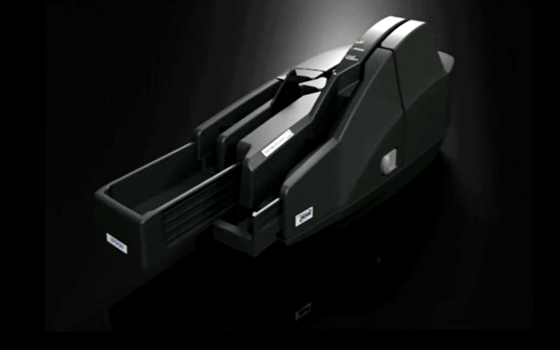

Epson TM-S1000

High Reliability Cheque and Coupon Scanner
Epson’s TM-S1000 cheque scanner is ideal for banks and corporations that want to capture cheques at the teller or back office. The Epson cheque scanner comes in both a 30 DPM and 60 DPM version and features RDMs MICR algorithms and imaging to provide one of the highest MICR accuracy of any desktop scanner on the market today.

The TM-S1000 also features clear electronic endorsements, a double cheque detector that virtually eliminates double cheque feeding and a built-in franker that prints a static message on cheques to prevent double processing.

Flexibility to Meet Application Requirements
The TM-S1000 comes with two pocket support as a standard feature. This gives you the flexibility to process and segregate different types of documents such as cheques and payment coupons. In addition, the 100 sheet document feeder allows high volume processing.

Easy to Use and Control
Whether you use TM-S1000 in the back office or at a busy teller station, the TM-S1000 has been designed for easy maintenance.

The cheque scanning process is simple and replacing the franker unit is quick and easy with no special training required. The Scanner also features advanced self-diagnostics which keep the operator informed of the scanner status and clear error messages.

Epson Quality and Reliability
With a MCBF of 2.47 million documents, the TM-S1000 has the reliability you need. As a world leading manufacturer of retail and office equipment, Epson offers high quality engineering with world class quality control and support.

Cheque Scanners

SCANNER
MODELS TM-S1000 (30 / 60 DPM)
FEEDER Automatic document feeder, capacity up to 100 documents,
Double feed detection control (when the paper thickness is 0.13 mm or less)
SUPPORTED DOCUMENTS Type
Size
Thickness
Normal paper (single-ply only)
Length: 120 to 235 mm / Height: 68 to 120 mm
0.075 to 0.2 mm
WEIGHT 60 to 120 g/m2
SPEED Scan rate options of 30 or 60 documents per minute (DPM) depending on the model.
Scan speed 500 mm/s.
POCKETS Two output pockets: – Main pocket capacity up to 100 documents (when the paper thickness is 0.13 mm or less. However, the total thickness must be 13 mm or less including warps.)
– Sub pocket capacity up to 50 documents (when the paper thickness is 0.13 mm or less. However, the total thickness must be 6.5 mm or less including warps.)
MICR Magnetic fonts E13B and CMC7
SCANNER 200 dpi (H) x 200 dpi (V), 120 dpi (H) x 120 dpi (V), 100 dpi (H) x 100dpi (V) 256-level grey scale
SCANNING METHOD Contact image sensor (CIS)
DATA COMPRESSION FORMAT JPEG (256-level grey scale) / CCITT Group 4 (Black and White)
DATA FORMAT Black & White
Greyscale
TIFF, BMP
TIFF, JPEG, BMP, Raster
FRANKING Built in Franker
FRANKING CARTRIDGE Epson EFC-01
RELIABILITY Life
MCBF
Life Franking Cartridge
1,000,000 sheets
2,470,000 cycles
18,000 times
SUPPORTED OS Windows 7 (32bit & 64bit), Windows Vista® (SP1, SP2, 32bit & 64bit), Windows® XP (SP2, SP3, 32bit), Windows Server 2008 (SP2, 32bit & 64bit), Windows Server 2008 R2, Windows® 2000 (SP4)
INTERFACE USB2.0
STANDARD ACCESSORIES USB cable 170 cm (colour: Black)
EMC STANDARD AS/NZS CISPR22 Class B
DIMENSIONS 355mm (W) x 160mm (D) x 176mm (H)
WEIGHT Approximately 4Kg
WARRANTY 12 Month Warranty
