Back catalogue – Epson TM-T88V-DT Intelligent POS Terminal

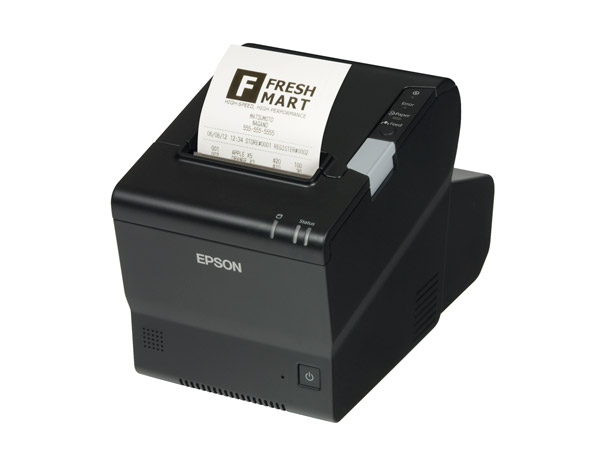

TM-T88V-DT Intelligent POS Terminal
Epson’s TM-T88V-DT Intelligent printer is the smart choice for retailers looking to implement mobile POS, Web-based POS configurations and Kiosk applications all in an ultra-small footprint.
- Retail hardened printer with POSReady Terminal
- Integrated design: No PC or POS terminal needed
- POSReady 7 or Linux OS
- ePOS-Device: Control peripherals from the web
- Includes multiple USB ports and a built-in VGA for POS peripheral connectivity
- Mobile POS supports web-based printing from any mobile device
- Intel® Atom™ processor supports a variety of thin client or Web POS configurations
- Cuts costs: Less devices to maintain
- Full resilience: Processor and storage for back-up
- Smart design: Stylish and space saving
- Print speeds up to 300mm/sec
Integrated computing power
The TM-T88V-DT is designed to offer retailers efficient POS computing power and configuration flexibility. It includes an retail-hardened PC with a POSReady 7 or Linux operating system powered by an Intel Atom 1.8GHz processor. Optimized for stability and performance, it is all integrated into an ultra-small footprint of an Epson POS receipt printer.
POS configuration flexibility
TM-T88V-DT provides the application power and configuration flexibility to support fixed, mobile and hybrid POS applications. With 6 USB ports, it can function as a device hub for your POS system. POS peripherals such as scanners, magnetic stripe readers, customer displays, scales and EFT (electronic funds transfer) terminals - can be conveniently controlled from the web via the application interface. It also supports thin client and Web-based POS applications and, with its compact footprint, it reduces the need for counter space in checkout lanes.
Powers kiosks and kitchen display systems
With its embedded PC with VGA output, the TM-T88V-DT can drive kiosk applications and kitchen display systems. And with its Ethernet or optional Wireless-N cards for internet connectivity and PXE boot support, it offers a reliable, retail-hardened kiosk solution.
Flexible, web-based mobile printing
To support mobile POS deployments, the TM-T88V-DT features a built-in Web server and Epson’s unique ePOS-Print technology that enables browser-based printing from any mobile device, with no drivers to install. The ePOS-Print technology provides seamless communication between the receipt printer and mobile devices anywhere in the store.
Add value with cloud services
Epson’s TM-T88V-DT helps deliver personalized customer experiences by enabling cloud-based services such as data analytics, loyalty, coupons, rewards and digital receipts.
Reliable receipt printing
Epson’s built-in TM-T88V POS printer offers best-in-class reliability, paper-saving features that reduce paper usage by up to 30% and industry-leading energy efficiency.
Only from Epson
The TM-T88V-DT features the quality and reliability Epson is known for and is backed by our industry-leading service and support programs. The TM-T88V-DT comes with a four year return to base warranty.
RETAIL-HARDENED PC | ||
---|---|---|
PROCESSOR | Intel® Atom™ Processor (1.86GHz) | |
SYSTEM MEMORY | 4.0GB (DDR3-1066) | |
OPERATING SYSTEM | Windows® Embedded POSReady 7 or Linux | |
INTERFACES | Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0 x 6 (x 1 for printer), RS-232, VGA x 1 (D-sub 15pin female), Stereo mini jack audio out, Drawer kick-out | |
INTELLIGENT SOFTWARE | ||
SOFTWARE | WebPOS Configuration, ePOS-Device®, Preboot Execution Environment (PXE) | |
SIMPLE WEB SERVER FUNCTION | HTTP server (Apache) | |
PRINTER CONTROL | Can control printing on up to 20 Ethernet interface or TM series printers equipped with a wireless LAN interface | |
PRINTER | ||
MODEL NAME | TM-T88V-DT | |
PRINT METHOD | Thermal line printing | |
PRINT SPEED | Max. 300mm/sec graphics and text | |
PRINT FONT | Font A (default): 12 x 24; Font B: 9 x 17 (including 2-dot horizontal spacing) |
|
COLUMN CAPACITY | 80mm: 42/56 columns; 58mm model: 30/40 columns | |
CHARACTER SIZE (mm) | Font A: 1.41 x 3.39; Font B: 0.99 x 2.40 (W x H mm) | |
CHARACTER SET | 95 Alphanumeric, 18set International, 128 × 43 Graphic | |
BARCODE | UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, Maxi Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional/Truncated/Limited/Expanded | |
PAPER DIMENSIONS (mm) | Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0 | |
PAPER THICKNESS (mm) | 0.06 to 0.07 | |
RELIABILITY | MTBF : 360,000 hours (Printer) MCBF : 70,000,000 lines Autocutter Life : 2 million cuts |
|
GENERAL INFORMATION | ||
DATA BUFFER | 4K bytes / 45 bytes | |
POWER SUPPLY | Dedicated AC-DC supply - In: AC100-240V / Out: DC24V | |
POWER CONSUMPTION | Approx. 54W | |
D.K.D FUNCTION | 2 DRIVERS | |
OVERALL DIMENSIONS | 145 x 279 x 183 mm (W x D x H) | |
WEIGHT | 2.8 kg | |
COLOUR | Epson Black (EBCK) | |
FACTORY OPTIONS | Power supply cover, PS-180 AC adapter, wall-hanging bracket, affixing tape and various interfaces | |
PRINTER SOFTWARE | Drivers and setup utility are available on CD, or at www.download.epson-biz.com | |
SAFETY STANDARDS | UL / CSA / EN / TÜV | |
WARRANTY | 4 year return to base | |
Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
