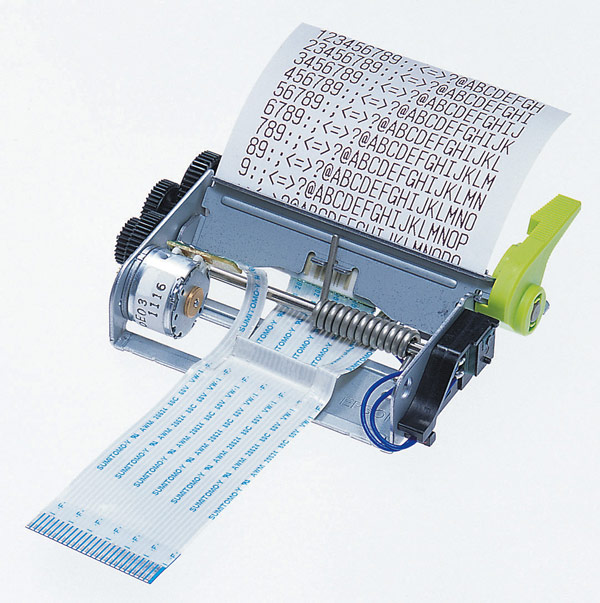

Back catalogue – Epson M-T51II
Easy–To–Read Printing
Compared to other thermal printers using the same font, text printed with the M-T51II / T53II is larger – andreceipts easier for customers to read.
Effective Use of Existing Resources
With the installation position the same as Epson's best selling printer mechanism, the M– 190 series*, there's little need for extensive changes to the terminal casing design. Sharing of some fonts with the M– 190 series is possible (ask your local Epson sales company for details).
*Mounting Attachment (factory option) is needed
Improved Lineup
Users have the benefit of a wide range of paper paths, all designed with usability in mind. The drop in mechanism is more convenient than ever before.
Thermal Mini Printers |
||||
| PRINTER | ||||
|---|---|---|---|---|
| PRINTING METHOD | Thermal Line | |||
| NUMBER OF TOTAL DOTS | 288 dots / line | |||
| RESOLUTION | 6 dots / mm | |||
| PRINTING WIDTH | 48 mm | |||
| PRINTING SPEED | 52 mm / sec. max. (at 7.5 V) | |||
| PAPER FEEDING PITCH | 0.087 mm | |||
| PAPER END | Photosensor | |||
| Printhead temperature | Thermistor | |||
| PRINTHEAD UNLOAD | Microswitch | |||
| PRINTHEAD & MOTORS | 5.0 to 8.0 VDC | |||
| PRINTHEAD CONTROL & SENSOR | 5 ± 0.25 VDC | |||
| MOTOR | FFC | |||
| PAPER DIMENSIONS | 57.5 ± 0.5 mm (W) x dia.80 mm | |||
| OPERATING TEMPERATURE | 0 to 50°C | |||
| MCBF | 15,000,000 lines | |||
| Printer life | 6,000,000 lines | |||
| OVERALL DIMENSIONS | 69.15mm (W) x 51.2mm (D) x 17.3mm (H) | |||
| WEIGHT | Approx. 70 g | |||
