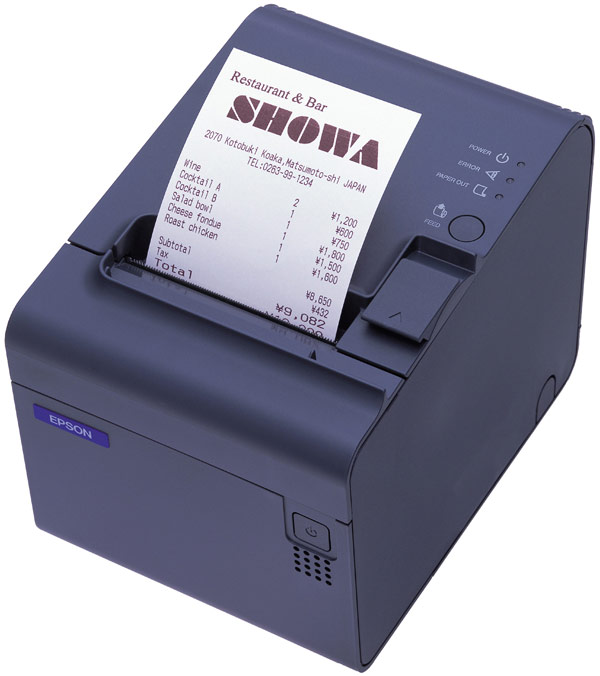

Back catalogue – Epson TM-T90
KEY FEATURES & BENEFITS
The Epson TM-T90 brings some exciting new features to an already strong line-up. Some of these features include:
The Epson TM-T90 brings some exciting new features to an already strong line-up. Some of these features include:
- TWO Colour printing
- High speed printing at 170 mm/sec
- Large paper rolls (100mm dia)
- Selectable paper widths (58, 60, 80mm)
- Use vertically or horizontally or wall mount using WH-10
- Available in two colours
- High reliability with a MCBF rating of 70 million lines
Developer Support
As with most of Epson's range of POS products, we provide a comprehensive suite of drivers and utilities, to reduce the costs of development and integration. Please contact us for more information on your application requirements.
ESC/POS is a registered trademark of Seiko Epson CORPORATION.
Epson is a member of OPOS committee
Thermal Receipt Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | Thermal line printing | |||||
| PRINT FONT | 9*17/12*24 | |||||
| COLUMN CAPACITY | 56/42 columns | |||||
| CHARACTER SIZE | 1.3(W)*2.4(H)/1.7(W)*3.4(H) mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 37 International characters, 128*11 Graphic characters | |||||
| CHARACTER PER INCH | 20 CPI / 15 CPI | |||||
| BARCODE | UPC-A, UPC-E, JAN8(EAN8), JAN13(EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR, PDF 417. | |||||
| PRINT SPEED | Max. 170mm/sec | |||||
| DATA BUFFER | 4K bytes / 45 bytes | |||||
| INTERFEERANCE | RS-232C / Bi-directional parallel / RS-485 / USB / 10 Base-T | |||||
| PAPER DIMENSIONS | Thermal roll paper: 79.5 ± 0.5*dia. 100.0mm | |||||
| POWER | 24 VDC±10% | |||||
| CURRENT CONSUMPTION | Approx. 1.7 A (at 24 VDC) | |||||
| D.K.D. FUNCTION | 2 drivers | |||||
| RELIABILITY | MTBF: 36*104 hours MCBF: 70*106 lines |
|||||
| EMC STANDARDS | VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B | |||||
| SAFETY STANDARDS | UL, C-UL, TÜV | |||||
| OVERALL DIMENSIONS | 140mm (W) x 201mm (D) x 148mm (H) | |||||
| WEIGHT | 1.8Kg | |||||
