KEY FEATURES
- Enhanced flexibility – the ELPEC01 attaches to the front of select Epson interchangeable lens projectors that do not have a built-in camera
- Attaches to select Epson UST lenses1 – providing access to camera assist functions
- Access the powerful tiling assist2 and stacking assist3 functions – via the Epson Projector Professional Tool (EPPT) application from Windows® or macOS®
- Powerful, time-saving features – the ELPEC01 helps speed up and simplify projector colour calibration, screen matching, geometric correction adjustment and remote monitoring4
- Fast installation – attach the ELPEC01 without tools or angle of view adjustment
- Remote monitoring capabilities – the ELPEC01 allows for image capture for remote monitoring and remote maintenance
- Easy, accurate colour matching – using a separate camera for each projector, automatically adjust the picture for seamless colour accuracy and brightness between multiple projectors, without the need for manual fine-tuning
- Install and adjust multiple projectors – easily install multiple projectors with incredible accuracy
- No need for external power source – the ELPEC01 draws its power directly from the projector’s 5V USB port reducing the need for extra cables and an external power source
1Built for use with ELPLX01S, ELPLX02S, lenses attached to the following projectors: EB-PU2010BNL, EB-PU2010WNL, EB-PU1008WNL, EB-PU1008BNL, EB-PU1007WNL. Additional projector models will be supported through future firmware release.
2Requires Epson external camera or built-in camera for each projector and the Epson Projector Professional Tool app.
3Requires Epson external camera or built-in camera for each projector and may, depending on your projector, require Epson Projector Professional Tool app.
4Using separate camera for each projector.

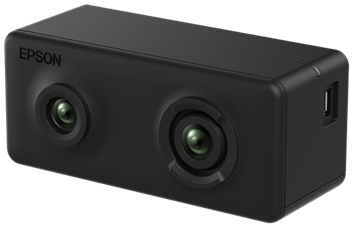

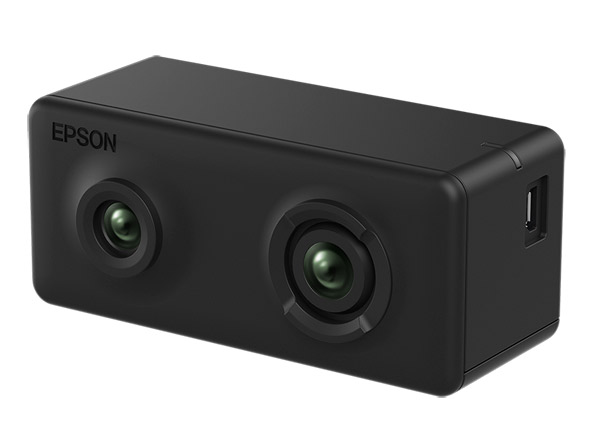

ELPEC01 external camera
The ELPEC01 is a camera module that can be easily integrated with select Epson projectors and lenses. The ELPEC01 provides access to powerful projection tools that help speed up and simplify projector colour calibration and geometric correction adjustment.
It enables the use of in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness - without using external computerware. This reduces the need for additional external equipment and their associated costs and makes achieving sophisticated projection applications easy.
Epson Projector Professional Tool Support
Users benefit from advanced control and automation tools to simplify and speed up the set-up. These powerful tools include geometry correction for stacking, multi-projector blending, and simple colour calibration.
Extensive product support
The ELPEC01 is compatible with Epson PU and select L Series projectors and ELPX01S/ELPX02S ultra-short-throw lenses, bringing the same advanced features and flexibility to a wider range of installations.

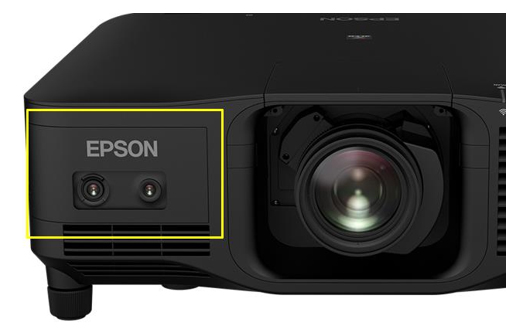

Simple integration
Installation is clean and simple thanks to USB connectivity and easy cable management.
Compatibility
Compatible main units |
EB-PU1008BNL
EB-PU1008WNL
EB-PU1007WNL
EB-PU2010BNL
EB-PU2010WNL
EB-PU2213B
EB-PU2216B
EB-PU2220B |
EB-L1490UNL*
EB-L1505UHNL*
EB-L1755UNL*
EB-L25000UNL*
EB-L12000QNL*
EB-L20000UNL*
EB-L30000UNL* |
|
Compatible main lens |
ELPX01S
ELPX02S |
|
*Firmware update required |

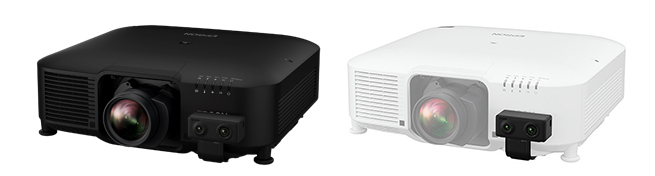

EB-PU Series with EC01 Camera

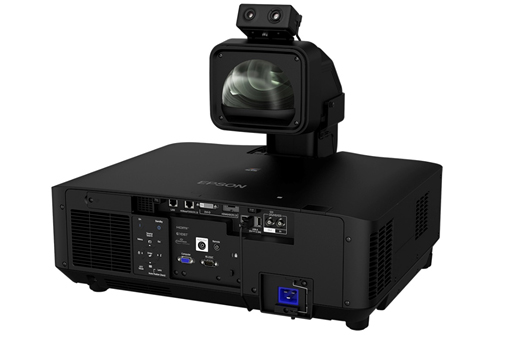

LX Lens Series with EC01 Camera
