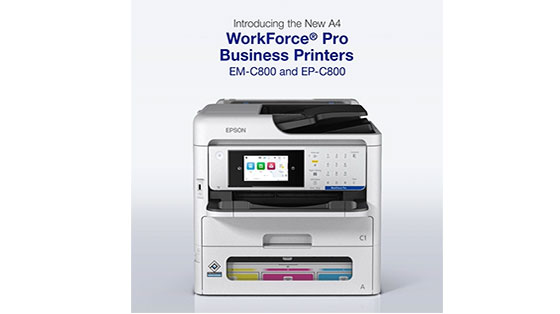

WorkForce Pro EM-C800

Print | Copy | Scan | Fax | Ethernet | Wi-Fi Direct | PCL/PS Powered by Heat-Free PrecisionCore delivering performance beyond laser for business

Printer
WorkForce Pro EM-C800 C11CK19501
Printing Method PrecisionCore 4S printhead 4 colour inkjet
Printer Language Epson ESC/P®- R, PCL 5 emulation1, PCL 6 emulation1, PostScript 3
Minimum Ink Droplet Volume 3 droplet sizes, as small as 3.8 picolitres
Duty Cycle Recommended monthly page volume: up to 5,000 pages
Resolution 4800 x 1200 optimised dpi
Print Speed
Mono—Single-sided Printing 25.0 ISO ppm2
Colour—Single-sided Printing 25.0 ISO ppm2
Mono—2-sided Printing 14.0 ISO ppm2
Colour—2-sided Printing 14.0 ISO ppm2
Paper Handling
Paper Sizes A4 (210 mm x 297 mm), A5 (148 mm x 210 mm), A6 (105 mm x 148 mm), B5, B6, C4 (envelope), C6 (envelope), DL (envelope), No. 10 (envelope), letter, legal, 90 x 130 mm, 100 x 150 mm, 130 x 180 mm, 16:9, HLT, EXE, user defined
Paper Hold Capacity Paper tray input capacity (standard): 250 sheet cassette (plus 80 sheet rear tray A4 plain paper (80 g/m2) / 10 envelopes). Optional 3 x 500 sheet cassette available (two can be added). Total 1,830 sheets with optional trays.
Output Tray Capacity 150 pages
Double-sided Printing Yes (internal)
Compatible Paper Weight 64 g/m2 ~ 256g/m2
Duplex Yes (Automatic)
Scan
Scanner Type Colour flatbed/Auto 2-sided ADF
Photoelectric Device Colour CIS line sensor
Optical Resolution 1200 dpi
Hardware Resolution 1200 x 2400 dpi
Maximum Resolution 9600 x 9600 dpi interpolated
Scanner Bit Depth 48-bit colour input / 24-bit colour output
Scan features Scan to PC via Document Capture Pro, scan to cloud, memory device, scan to network folder, password protected PDFs
Fax
Type of Fax Mono and colour capability
Fax Transmission Speed Up to 33.6 kbps / Approx 3 sec/page
Page Memory Up to 550 pages / 6 MB (ITU-T No.1 Chart)
Fax Speed Dials (Max) 200 names and numbers
Fax Functions PC-fax, fax to email, memory reception, auto redial, speed dial
Error Correction Mode CCITU/ITU Group3 fax with Error Correction Mode
General
Printer Drivers3 Windows 11®, Windows 10 (32-bit, 64-bit), Windows 8, 8.1 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Server® 2008, 20124, Mac®OS X® 10.9.5 – MacOS® 14.x5
Rated Voltage AC 100 – 240 V Universal (Automatic)
Rated Frequency 50 – 60 Hz
Power Consumption (approximate) Standalone copy printing: 30 W
Ready mode: 13.8 W
Sleep mode: 1.1 W
TEC rating: 0.18 kWh/week
Noise Level Power: 6.5 dB(A)
Pressure: 51 dB(A)
Dimensions (W x D x H) 425 mm x 535 mm x 513 mm
Weight 21.3 kg
Connectivity
Standard Connectivity High-speed USB—compatible with the USB 2.0 specification
Wireless LAN IEEE (802.11 b/g/n/a/ac/k/v/r)6
Wired ethernet (1000 Base-T/100 Base-TX/10 Base-T)
Wi-Fi Direct6
Network Protocols TCP/IP v4/v6
Network Printing Protocols IPP, LDP, Port 9100, WSD
Network Management Protocols SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, Ping, SLP, WSD, LLTD
Control Panel Colour 4.2" LCD display panel
WLAN Security WEP 64-bit, WEP 128-bit, WPA PSK (AES), WPS2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-SAE
Printer Software (Available on CD-ROM only)
Software Tools Epson Printer Driver
PCL 5 Driver1 emulation,
PCL 6 Driver1 emulation,
PostScript 3,
Epson Document Capture Pro
Warranty
Standard Warranty 12 Months—Please refer to Epson Warranty Terms and Conditions
Ink Packs & Yields
Ink Type DURABrite Ultra pigment ink (smudge, fade and water resistant)
Ink Pallette Cyan, Magenta, Yellow and Black
Ink Pack Configuration 4 individual ink packs
Fade Resistance/Print Longevity Up to 118 years7
Replacement Ink Packs8
XXL Ink Pack (Black) C13T12P100 (50,000 page yield)
XL Ink Pack (CMY) C13T12P200 / C13T12P300 / C13T12P400 (20,000-page yield)
L Ink Pack (Black) C13T12N100 (10,000-page yield)
Std Ink Pack (CMY) C13T12N200/ C13T12N300 / C13T12N400 (5,000-page yield)
  1. Not all media types are supported for PCL printing
  2. Mono and colour print speeds are based on ISO/IEC 24734 standards. Actual printing times may vary depending on system configuration, software, and the complexity of the page. For further details, please visit www.epson.com/printspeed.
  3. Drivers if available are downloadable from Tech Epson.
  4. Only printing is supported under Windows Server OS.
  5. Some applications and/or functions may not be supported under Mac OS X.
  6. Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.
  7. Display permanence is determined through accelerated testing of prints displayed under glass in indoor conditions, while album permanence is based on accelerated testing of prints stored in dark conditions. The actual stability of prints can vary depending on factors such as media type, printed image, display conditions, light intensity, temperature, humidity, and atmospheric conditions. Epson does not guarantee print longevity. To maximise print life, display prints under glass or a UV filter, or store them properly.
  8. Replacement ink pack yields are determined using ISO/IEC 24711 testing in default mode with continuous printing. Actual yields may vary significantly due to factors such as the images printed, print settings, temperature, and humidity. Yields may be lower with infrequent printing. Ink is utilised for both printing and routine printer maintenance, and must be installed for the printer to function. For more information, visit www.epson.com.au/ink-yield.
  9. Replacement ink pack yields are determined using ISO/IEC 24711 testing in default mode with continuous printing. Actual yields may vary significantly due to factors such as the images printed, print settings, temperature, and humidity. Yields may be lower with infrequent printing. Ink is utilised for both printing and routine printer maintenance, and must be installed for the printer to function. For more information, visit www.epson.co.nz/ink-yield.
