| PRODUCT NAME |

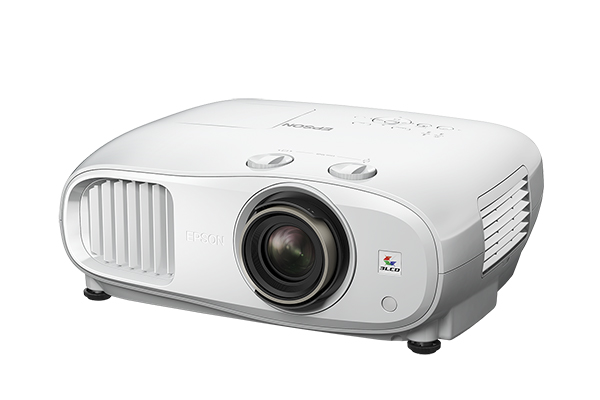

EH-TW7100 |
| PRODUCT CODE |
V11H959053 |
| WHAT'S IN THE BOX |
| |
EH-TW7100 Projector, Power Cable, Remote Control + Batteries, User Manual, Quick Start Guide |
| TECHNOLOGY |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.61-inch wide panel with MLA (C2 Fine, 10 bit) |
| Pixel Number |
2,073,600 dots
(1920 x 1080) |
| Resolution |
4K Enhancement*
1920 x 1080 x 2 |
| OPTICAL |
| Zoom |
1 - 1.62 (Optical) |
| Screen Size |
40" to 500" [1.16 to 14.87 m] (Zoom: Wide)
40" to 500" [1.89 to 24.01 m] (Zoom: Tele) |
| Projection Distance |
100" screen 2.95 - 4.77 m |
| Throw Ratio |
1.35 (Zoom: Wide), 2.15 (Zoom: Tele) |
| Projection Lens F Number |
1.49 - 1.77 |
| Projection Lens Focal Length |
18.2 mm - 29.2 mm |
| Focus Method |
Manual |
| Lens Shift (Manual) |
Vertical: -60% to +60%
Horizontal: -24% to +24% |
| IMAGE |
| Colour Light Output |
3,000 Lumens |
| White Light Output |
3,000 Lumens |
| Native Aspect Ratio |
16:9 |
| Contrast Ratio |
100,000:1 |
| Light Source |
Lamp |
| Lamp Type |
250 W UHE |
| Lamp Life |
3,500 h, 5,000 h (ECO) |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| 2D / 3D Frequency Image |
240 Hz / 480 Hz |
| 2D Vertical Refresh Rate |
192 Hz - 240 Hz |
| 3D Vertical Refresh Rate |
400 Hz - 480 Hz |
| CONNECTIVITY |
| Input: Digital |
2 x HDMI (1 x HDCP2.2) |
| Input: Opt. HDMI |
1 x USB A |
| Input: Control |
1 x RS232c |
| Input: Network I/O |
1 x USB Type A (for optional Wireless LAN unit) |
| Trigger Out |
3.5 mm mini-jack |
| Audio Out |
Stereo Mini |
| Wireless Connectivity |
Optional |
| Super Resolution |
Yes |
| High Dynamic Range - HDR10 |
Yes |
| Hybrid Log Gamma - HLG |
Yes |
| Image Enhancement |
Yes |
| Frame Interpolation |
Yes |
| 4K Enhancement |
Yes |
| 3D Formats |
Top-and-Bottom, Side-by-Side |
| Built In Speakers |
2 x 10 W |
| Direct Power On |
Yes |
| Security |
Kensington®-style lock provision |
| Aspect Modes |
Yes (Auto / Normal / Full / Zoom / Anamorphic / Wide / Horizontal Squeeze) |
| Colour Modes |
Dynamic, Bright Cinema, Natural, Cinema |
| GENERAL |
| Dimensions D x W x H (including feet) |
330 x 410 x 164 mm |
| Weight |
6.9 kg |
| Lamp Warranty |
1 Year or 750 Hours - Whichever comes first |
| Projector Warranty |
2 Years |
| Power Consumption: Lamp on |
406 W |
| Power Consumption: Standby |
2 W |
| Noise Level (Normal/Eco) |
35/24 dB |
| |
| * 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode. |
| PRODUCT OPTIONS |
| |
V13H010L85 |
ELPLP85 Replacement Lamp |
| |
V13H134A39 |
ELPAF39 Air Filter |
| |
V12H003B22 |
ELPMB22 Ceiling Mount (Standard) |
| |
V12H526040 |
ELPMB30 Ceiling Mount (Flush) |
| |
V12H003P13 |
ELPFP13 Suspension Adapter 450mm |
| |
V12H003P14 |
ELPFP14 Suspension Adapter 700mm |
