Back catalogue – Perfection V600 Photo

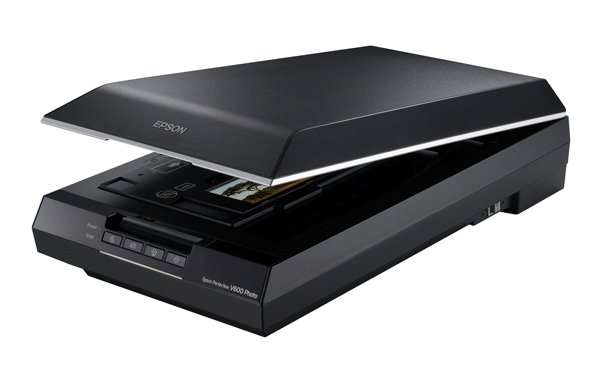

The Epson Perfection® V600 Photo delivers outstanding performance with 6400dpi resolution, 3.4Dmax and exceptionally high quality document and film scanning capabilities, with the ability toscan film as large as 6 x 22cms. In addition, the scanner features Epson's superior Matrix CCD Micro Lens technology, energy efficient ReadyScan® LED technology and fast scanning speeds of 6 seconds.



  • Outstanding photographic scan quality with 6400 x 9600 optical resolution
  • Versatile film scanning with the ability to scan 35mm filmstrips, 35mm mounted slides & up to 6 x 22cm medium format film
  • Powered with energy efficient ReadyScan® LED Technology
  • Featuring DIGITAL ICE Technologies for advanced dust and scratch removal
  • Fast scanning in as little as 6 seconds
  • 3.4 optical density for crisp scan definition and accurate colour tone capture
  • Matrix CCD with on chip micro lens technology
  • Easy to use with 4 push buttons for straightforward operation
  • Windows® and Mac® compatibility



Epson Perfection V600 Photo
SCANNER TYPE Flatbed A4 colour image scanner
OPTICAL RESOLUTION Main: 6400dpi x 9600dpi
DOCUMENT SIZE
PHOTOELECTRIC DEVICE 216x297mm (A4+Letter)
TRANSPARENCY 35mm strip film x 12 frames
35mm slides x 4 frames
6cm x 22cm medium format (120/220) x 1 frame
TRANSPARENCY UNIT MAXIMUM SCANNING SIZE 68.6 x 242.4mm
INTERFACE USB2.0 Hi-speed/USB1.1
CONFIGURATION
PHOTOELECTRIC DEVICE Matrix CCD (12 line with on chip micro lens)
LIGHT SOURCE White LED, IR LED
SUB-SCANNING METHOD Fixed document and moving carriage
PERFORMANCE
OUTPUT RESOLUTION 50 – 6400 (1dpi step), 9600, 12800dpi
COLOURS Internal 48 bit (281.5 trillion colours)
Output 48 bit (281.5 trillion colours)
24 bit (16.7 colours million)
16 bit (65,536 grayscale levels)
8 bit (256 grayscale levels)
1 bit Monochrome
SCANNING SPEED
REFLECTIVE SCANNING
MONOCHROME*1
24bit COLOUR*2		 A4 300dpi
A4 300dpi		 6 seconds
6 seconds
FILM SCANNING   Draft Mode Best Mode
35mm Positive film
35mm Negative film		 3200dpi
3200dpi		 51 sec
62 sec		 51 sec
62 sec
The thumbnail images below show the scanning patterns used to determine scanning speed specifications.

System Configuration of Scanning Speed
CPU: Intel Core™ 2 CPU 6700 @ 2.66Ghz
RAM: 2GB
I/F: USB2.0 Hi-Speed
OS: Windows XP Professional Edition
Soft: Adobe Photoshop 7.01E
Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting. However, documents and photos other than those pictured above can be substituted without significantly affecting test results.
FUNCTIONS
IMAGE QUALITY ENHANCER DIGITAL ICE for (Film and Print)
Grain Reduction
Dust Removal (Software for film and reflective/photo)
PRINT Image Matching II
ICC Profile Embedded
Backlight Correction
Color Restoration
Selectable tone for Auto Exposure
Unsharp Mask with Noise Reduction
De-Screening with Document Type Optimizer
Tone Curve Adjustment with Histogram
Color Palette
EASY SCANNING

Resizable preview window
4 Push Buttons with customisable job settings with Epson Event Manager
Multiple page scan to PDF feature
Scan to PDF feature
High compression PDF
Searchable PDF*
Text Enhancement
Auto Area Segmentation
Color Enhance and Dropout features
Correct Document Skew
User defined setting name
Stand-Alone Application and Scan to File Feature
Multi Document Auto Detection
Multi Document Auto Cropping
Auto Photo Orientation
Multi Marquee

*available with ABBYY FineReader PDF 15 Sprint
SUPPORTED PLATFORMS
USB1.1 & 2.0:
SCANNER DRIVERS Windows® 11/11x64/10/10x64/8/8x64/7/7x64/Vista/Vista64/XP/XPx64/2000, Mac® OS 10.3.9 or later (Universal Version). Although the Epson Scanner is compatible with Mac OS 10.7, bundled software included with this scanner is not compatible.
ENVIRONMENTAL CONDITIONS
TEMPERATURE 10°C to 35°C (Operating)
-25°C to 60°C (Storage)
HUMIDITY 10% to 80% without condensation (Operating)
ELECTRICAL SPECIFICATIONS
VOLTAGE AC220-240V   50-60Hz
POWER CONSUMPTION Approx. 16.5W (Operation)
Approx. 1.6W (Sleep Mode)
SOFTWARE*

Epson Scan 3.8

Epson Event Manager

ABBYY FineReader PDF 15 Sprint for Windows / ABBYY FineReader PDF 15 Sprint for Mac

*Bundled software packaged with this scanner may not be compatible with Mac 10.7.
WARRANTY
12 months return to base Standard
Epson Scanner Warranty
DIMENSIONS
WIDTH
DEPTH
HEIGHT
WEIGHT		 280mm
485mm
118mm
Approx. 4.1kg

Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.
