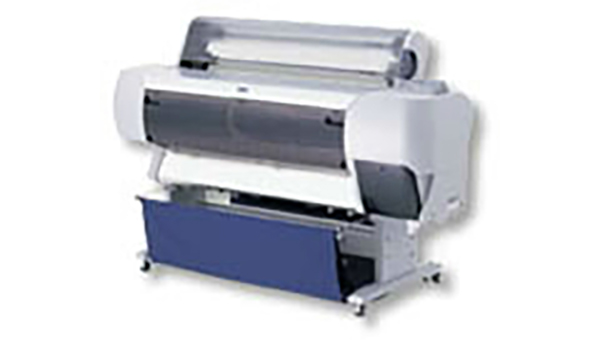

Back catalogue – Stylus Pro 10000CF
| MODEL NAME | Epson Stylus PRO 10000CF |
| PRINTER TYPE | |
|---|---|
| PRINTING METHOD | Drop-On-demand ink jet (piezoelectric) Technology |
| NOZZLE CONFIGURATION | 180 nozzles (Black), 900 nozzles (180 nozzles x 5 colours) |
| RESOLUTION | Max. 1440dpi x 720dpi |
| PRINT SPEED | Up to 20m2 (Plain paper / Speed mode) |
| A0 size | About 3.5 minutes (360 dpi x 360 dpi / Speed mode/Plain Paper) About 7 minutes (360 dpi x 720 dpi/ Speed mode/Premium Glossy Photo Paper) About 11 minutes (720 dpi x 720 dpi / Quality mode / Premium Glossy Photo Paper) About 20 minutes (1440 dpi x 720 dpi / Primium Glossy Photo Paper) |
| INK SYSTEM | Epson ColorFast™ Ink (individual 6 colour high capacity
ink cartridge 500ml/colour) (Black, Yellow, Magenta, Cyan, Light Magenta, Light Cyan) |
| PAPER HANDLING | |
| Roll Paper | Double rolls (1 roll should be less than 100mm/Outside diameter) / Single roll (1 roll should be less than 50mm/Outside diamater) |
| Cut Sheet | A single sheet |
| MEDIA CUTTER | |
| Standard | Auto media cutter |
| Option | Manual cutter unit |
| ROLL MEDIA CORE DIMENSIONS | Core diameter 2" or 3" |
| MEDIA | |
| Roll Media | Media width 210mm~ 1118mm / Media thickness 0.08mm~ 0.50mm |
| Cut Sheet | Media size A4~ BO+ / Media width 210mm~ 1118mm Media length 279mm~ 1580mm / Media thickness 0.08mm~ 0.50mm |
| Posterboard | Media width 515mm~ 1118mm / Media length 420mm~ 728mm / Media thickness up to 1.5mm |
| PRINT MARGINS | |
| Roll Media | 3mm (top, sides, bottom) / 15mm (top, bottom), 3mm (sides) / 15mm (top, sides, bottom) *Three modes are available |
| Cut Sheet | 3mm (top, sides), 14mm (bottom) |
| LINE ACCURACY | +/- 0.2% of specified page length |
| RAM | 128MB |
| LANGUAGES | ESC / P Raster |
| INTERFACES | |
| Standard | Centronics-type 8 bit Parallel interface (IEEE-1284 Nibble/ECP Mode), USB Series B |
| Option | Expansion slot: Type B Ethernet 10/100BaseT/TX Print Server, IEEE 1394l/F Card |
| TOTAL PRINT VOLUME | 20,000 pages (BO size) |
| ENVIRONMENTAL CONDITIONS | |
| Temperature | 10-35C (Operating) |
| Humidity | 20-80% RH (Operating) |
| ELECTRICAL SPECIFICATIONS | |
| Rated Voltage | AC 120V or 220V~240V |
| Rated Frequency | 50~60Hz |
| Power Consumption | Less than 131W (Operating) / Less than 30W (Sleep mode) |
| DIMENSIONS / WEIGHT | |
| Dimension | W 1865mm x D 1225mm x H 710mm |
| Weight | About 132kg (Including stand, not including ink cartridges) |
| STANDARD PRINTER DRIVERS (OS) | Macintosh 7.6.1 or later, Microsoft® Windows®98/95/NT4.0/2000/ME |
| WARRANTY | One year on site |
| STANDARD ACCESSORIES | Power cord x 1 / Roll feed spindle (2") x 2 Ink cartridges (one each BK, Y, M, C, LM, LC) x 1 set / Printer driver utilities x 1 set Roll paper sample (Double weight Matte Paper %m) x 1 roll / Paper basket x 1 set User's manuals x 1 set / Tools for assembly of stand and main unit x 1 set |
| RECOMMENDED ENVIRONMENT | |
| PC | CPU: Pentium II 400MHz or higher processor, Memory: 128 MB RAM or more, HDD: 500 MB or more free disk space |
| Macintosh | CPU: PowerPC G4 400MHz or more, System software: System 8.1 or later, Memory: 20MB or more of available memory, HDD: 500 MB or more free disk space |
Product Options
| Product Code | Description |
|---|---|
| Options | |
| C811122 | Roll Feed Spindle 3" High Tension |
| C811133 | Roll Feed Spindle 2" |
| C811134 | Roll Feed Spindle 2" High Tension |
| C815172 | Auto Take-Up Reel Unit |
| C815182 | Manual Cutter Unit |
| C815192 | Manual Cutter Blade |
