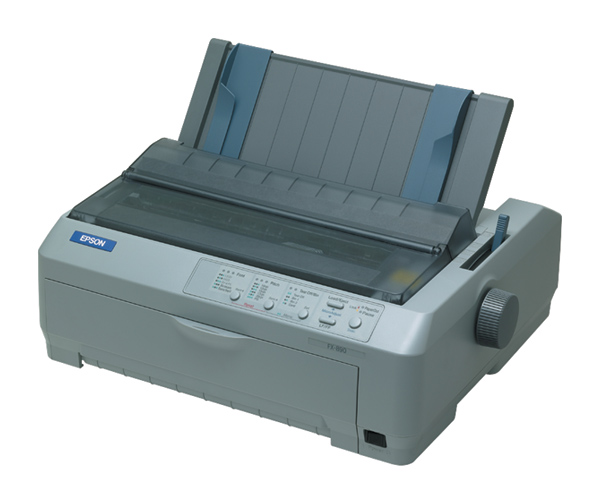

Back catalogue – FX-890
Rugged, 9-pin Dot Matrix printing. Perfect for back-office or front-office printing on multi-part stationery.
- High performance, 9-pin Print Head
- Rapid print speeds up to 680cps
- Up to 7-part forms printing capability (original + 6 copies)
- Flexible paper handling - load from rear, bottom or front
- User friendly control panel and setting selection
| PRINTER TYPE | Impact Dot Matrix | |||
|---|---|---|---|---|
| PRODUCT NAME | ||||
| PRODUCT CODE | ||||
| NUMBER OF PINS IN HEAD | 9 pins | |||
| PRINT DIRECTION | Bi-directional with logic seeking | |||
| PRINT SPEED | ||||
| ULTRA SPEED DRAFT | 10CPI | 566 cps | ||
| ULTRA SPEED DRAFT | 12CPI | 680 cps | ||
| HIGH SPEED DRAFT | 10CPI | 559 cps | ||
| HIGH SPEED DRAFT | 12CPI | 627 cps | ||
| HIGH SPEED DRAFT | 15CPI | 629 cps | ||
| HIGH SPEED DRAFT | 17CPI (Condensed) | 595 cps | ||
| HIGH SPEED DRAFT | 20CPI (Condensed) | 541 cps | ||
| DRAFT | 10CPI | 419 cps | ||
| DRAFT | 12CPI | 503 cps | ||
| DRAFT | 15CPI | 405 cps | ||
| DRAFT | 17CPI (Condensed) | 359 cps | ||
| DRAFT | 20CPI | 419 cps | ||
| DRAFT | 10CPI (Emphasised) | 209 cps | ||
| NLQ | 10CPI | 104.6 cps | ||
| NLQ | 12CPI | 125.9 cps | ||
| NLQ | 15CPI | 100.8 cps | ||
| NLQ | 17CPI | 89.7 cps | ||
| NLQ | 20CPI | 104.6 cps | ||
| PRINT CHARACTERISTICS | ||||
| CHARACTER SETS | 13 International character sets 13 character code tables (standard) Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASC II, Roman 8, ISO Latin 1, PC858, ISO 8859-15 |
|||
| BITMAP FONTS | Epson Draft, 10 CPI, 12 CPI, 15 CPI Epson Roman, 10 CPI, 12 CPI, 15 CPI Proportional Epson Sans Serif, 10 CPI, 12 CPI, 15 CPI Proportional |
|||
| BAR CODE | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet | |||
| PRINTABLE COLUMNS | (CHARACTERS PER LINE) | |||
| PITCH | FX-890 | |||
| 10CPI | 80 | |||
| 12CPI | 96 | |||
| 15CPI | 120 | |||
| 17CPI | 137 | |||
| 20CPI | 160 | |||
| PAPER HANDLING | ||||
| PAPER PATH | Manual Insertion : | (Front or rear in, top out) | ||
| Push Tractor : | (Front or rear in, top out) | |||
| Pull Tractor : | (Front or rear or bottom in, top out) | |||
| CUT SHEET FEEDER | Width | 100 - 257 mm | ||
| Length | 100 -364 mm | |||
| ENVELOPES | No.6, No.10 | |||
| CONTINUOUS PAPER SIZE | Width | 101.6 - 254 mm | ||
| Length | 101.6 - 558.8 mm | |||
| PAPER THICKNESS | ||||
| CUT SHEET | Single sheet | 0.065 - 0.14mm | ||
| Multi part | 0.12 - 0.46mm | |||
| ENVELOPES | 0.16 - 0.52 mm- 0.14mm | |||
| CONTINUOUS PAPER | (single sheet / multi part) | |||
| 0.065 - 0.46mm | (0.0025 - 0.018 inch) | |||
| Label Base Sheet | 0.07 - 0.09mm | (0.0028 - 0.0035 inch) | ||
| LABEL | Total Label | 0.16 - 0.19 mm | (0.0063 - 0.0075 inch) | |
| PAPER FEEDING | Standard | Friction | (rear in, top out) | |
| (front in, top out) | ||||
| Push Tractor | (rear in, top out) | |||
| (front in, top out) | ||||
| Pull Tractor | (rear in, top out) | |||
| (front in, top out) | ||||
| (bottom in, top out) | ||||
| Optional Feeder | Cut Sheet Feeder | (rear in, top out) | ||
| Push Tractor | (rear in, top out) | |||
| (front in, top out) | ||||
| INPUT DATA BUFFER | 96 K Byte | |||
| INTERFACE | ||||
| STANDARD | Bi-directional parallel interface (IEEE - 1284 nibble mode supported), USB (ver 1.1) I/F |
|||
| OPTION | Type B I/F level 2 | |||
| RIBBON CARTRIDGE | ||||
| COLOUR | Black | |||
| TYPE | Fabric | |||
| RIBBON LIFE | Approx. 7.5 million characters (Draft 10cpi, 14 dots/character) |
|||
| RELIABILITY | ||||
| (25% duty cycle) Mean Print Volume Between Failure (MVBF) | ||||
| 52 million lines (except print head) | ||||
| MTBF | 20000 POH | |||
| PRINT HEAD LIFE | 400 Million strokes / wire (Draft 10 cpi, 14 dots/character) |
|||
| CONTROL PANEL | ||||
| 6 Switches and 10 LEDs | ||||
| ENVIRONMENTAL CONDITIONS (OPERATING) | ||||
| TEMPERATURE | 5 - 35° C | |||
| HUMIDITY | 10 - 80% RH | |||
| ELECTRICAL SPECIFICATIONS | ||||
| RATED VOLTAGE | AC 220 - 240V | |||
| RATED FREQUENCY | 50 - 60Hz | |||
| POWER CONSUMPTION | Approx. 53W (ISO/IEC 10561 Letter Pattern) |
|||
| DIMENSIONS | ||||
| width | 414 mm | |||
| DEPTH | 350 mm | |||
| height | 167.5 mm | |||
| WEIGHT | Approx. 7.2Kg | |||
| PRINTER DRIVER / UTILITY | ||||
| OS | Microsoft® Windows® NT 4.0 / 95 / 98 / 2000 / Me / XP | |||
| UTILITY | Epson Status Monitor 3 (Microsoft® Windows® NT 4.0/95/98/2000/Me/XP environment only) | |||
| WARRANTY | ||||
| Standard Warranty | 12 months return to base | |||
| * For more information visit www.epson.com.au/warranty/ | ||||
| Options | |
|---|---|
| RIBBON CARTRIDGE (BLACK) | C13S015329 |
| HIGH CAPABILITY CUT SHEET FEEDER | C12C806382 |
| SINGLE BIN CUT SHEET FEEDER | C12C806372 |
| PULL TRACTOR UNIT | C12C800202 |
| SERIAL I/F CARD | C12C823061 |
| 32KB INTELLIGENT SERIAL I/F CARD | C12C823081 |
| EpsonNET 10/100 BASE TX INT. PRINT SERVER2 | C12C824352 |
