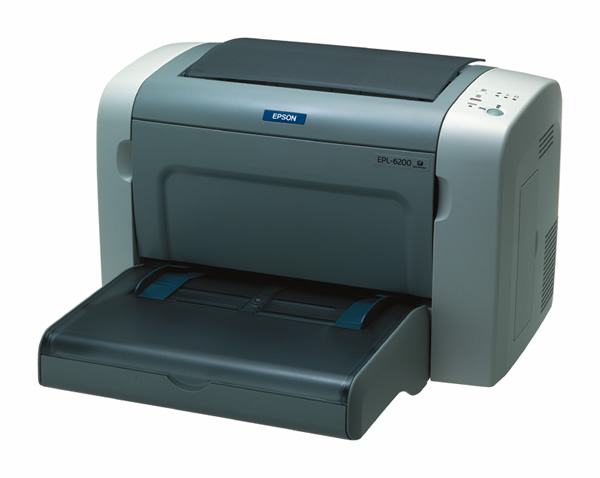

Back catalogue – EPL-6200
20ppm laser printer for small workgroup or power users. Superb print quality at up to true 1200dpi resolution. Highly versatile - options include duplex printing and network connectivity. High yield consumables and compact design for low maintenance and cost efficient printing. Postscript level 3 standard. PC and Macintosh drivers included.
| PRINTER TYPE | |
|---|---|
| PRODUCT NAME | |
| PRODUCT CODE | |
| PRINTING METHOD | Laser beam browse and one constituent dry electrophotographic printing |
| RESOLUTION | True 1200dpi x 1200dpi# 600 or 300dpi with BiRiTech (Bi Resolution Improvement Technology) 1200dpi Class with MicroGray 1200 |
| PRINTING SPEED | 20 ppm (A4, 600/300dpi) 10ppm (A4, 1200dpi)+ |
| FONTS | |
| LJ(PCL®) Mode | 80 Scalable Fonts + 7 Bitmap Fonts |
| ESC P2 Mode | 12 Scalable Fonts + 2 Bitmap Fonts |
| FX Mode | 8 Scalable Fonts + 2 Bitmap Fonts |
| IBM® Mode | 8 Scalable Fonts + 1 Bitmap Font |
| PS3 MODE | 17 Postscript Fonts |
| PAPER HANDLING | |
| PAPER FEED METHOD | Universal Cassette Type Paper Tray |
| Capacity: | 250 sheets (A4) |
| Paper Size: | A4, A5, B5, Legal, Letter, Half-Letter, Executive, Government Legal, Government Letter, F4, International B5 |
| Envelope Size: | Monarch, DL, Commercial 10, C5, C6 *Due to the variety of envelopes available Epson recommends the testing of envelope samples to ensure satisfactory printing results. |
| MANUAL FEED | |
| Capacity: | 1 sheet (Any size within feedable paper size) |
| 500-SHEET LOWER PAPER CASSETTE UNIT (Option) | |
| Capacity: | 500 sheets Paper Size: A4 |
| FEEDABLE PAPER DIMENSIONS | |
| Width: | 76mm-216mm |
| Length: | 127mm-356mm (Manual Feed 148mm-356mm) |
| Paper Thickness: | 60 - 163g/m2 (Manual Feed) |
| PAPER EJECT | Face down (maximum 100 sheets) |
| INTERFACES | |
| STANDARD | IEEE1284Bi-directional Parallel interface (with Compatibility mode, Nibble mode and ECP mode), Universal Serial Bus (USB) 1.1 compliant Type B Slot (1 slot) |
| MEMORY | |
| 16MB (expandable to 136MB by SDRAM SIMM)# | |
| WARM-UP TIME | |
| 21 seconds (from Power On) | |
| FIRST PRINT TIME | |
| less than 13 seconds (A4/Letter, 600dpi)+ | |
| ACOUSTIC NOISE | |
| STAND-BY | Below 39dB |
| DURING OPERATION | Below 54dB |
| CONTROL PANEL | |
| INDICATORS | 3 switches and 6 LED |
| DURABILITY | |
| Durability | 5 years or 180,000 sheets, which ever comes first |
| Monthly Print Volume | 15,000 pages maximum, 2,500 pages average |
| ENVIRONMENTAL CONDITIONS (OPERATING) | |
| TEMPERATURE | 10-35°C (50-95°F) |
| HUMIDITY | 15-85% RH |
| POWER REQUIREMENTS | |
| POWER SUPPLY/FREQUENCY | AC 220V-240V 50-60Hz ±3Hz |
| POWER CONSUMPTION | |
| Operation: | 372Wh average / 861W maximum |
| Standby Mode: | Below 7Wh |
| DIMENSIONS | |
| 407(W) x 436(D) x 261(H)mm | |
| WEIGHT | |
| 8.0kg (including the photoconductor unit and initial developer cartridge) | |
| SYSTEM REQUIREMENTS (RECOMMENDED) | |
| PC: | Pentium 100MHz [233MHz], 16MB [64MB], IEEE 1284 Parallel Interface Nibble & ECP or Standard USB (Windows® 98/Me/2000/XP) |
| OPERATING SYSTEM: | Windows® 95/98/2000/NT 4.0/XP |
| MAC: | PowerMac® G3 with standard USB or iMac™ or iBook™, 233MHz, 32MB [64MB], Std Internal USB, Mac™ OS 8.6 to 9.X and MAC OSX 10.1.2 or higher |
| PRINTER CONTROL LANGUAGE | |
| EMULATIONS | PCL® 5e, PCL® 6, Epson GL/2, FX, ESC/P2, IBM Mode Adobe® Postscript® 3™# |
| CONSUMABLES | |
| DEVELOPER CARTRIDGES | Lifespan: 3,000 sheets* C13S050167 6,000 sheets* C13S050166 Note: initial cartridge lifespan is 3,000 sheets* |
| PhotoCONDUCTOR UNIT | Lifespan: 20,000 sheets* C13S051099 |
| *Approximate number of sheets under conditions of continuous printing on A4/Letter size paper with 5 percent page coverage. | |
| CONFIGURATIONS | |
| EPL-6200 | EPL-6200 LASER PRINTER |
| EPL-6200N | EPL-6200 WITH 10/ 100 BASE TX INTERNAL PRINT SERVER |
| EPL-6200NDT | EPL-6200 WITH DUPLEX UNIT, ADDITIONAL PAPER CASSETTE, 10/ 100 BASE TX INTERNAL PRINT SERVER, NETWORK INTERFACE + 128MB |
| WARRANTY | |
| 12 Months Return to Base Warranty | Standard |
| * For more information visit www.epson.com.au/warranty/ | |
Product Options
| Product Code | Description |
|---|---|
| Media Handling Options | |
| C12C802042 | 500 SHEET LOWER PAPER CASSETTE UNIT A4 SIZE |
| C12C802051 | DUPLEX UNIT (requires paper cassette option) |
| Memories | |
| LSDP32MB | 32MB SDRAM |
| LSDP64MB | 64MB SDRAM |
| LSDP128MB | 128MB SDRAM |
| Options | |
| C12C824352 | 10/100 BaseTX Internal Print Server |
| Warranties | |
| 3YW6200 | (standard warranty is 12 months) |
