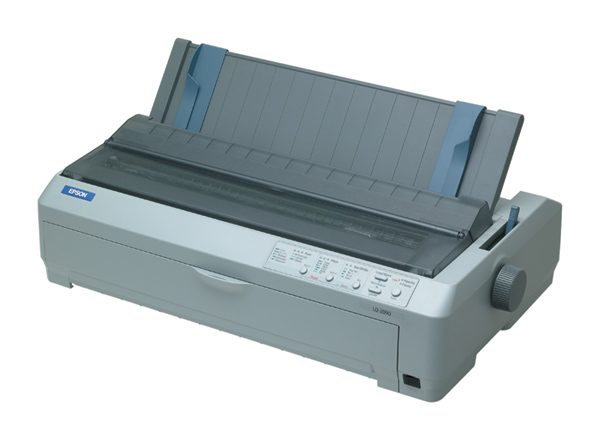

Back catalogue – LQ-2090
Efficient, Letter Quality, Dot Matrix Printing
- Letter Quality, 24-Pin Head
- Rapid print speeds up to 658 cps
- Up to 5-part forms printing capability (Original + 4 copies)
- Flexible paper handling - load from rear, bottom or front
- User friendly control panel and setting selection
- 136 columns. Also available in 80 column model (LQ-590)
| PRINTER TYPE | Impact Dot Matrix | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| NUMBER OF PINS IN HEAD | 24 pins | ||
| PRINT DIRECTION | Bi-directional with logic seeking | ||
| PRINT SPEED | |||
| HIGH SPEED DRAFT | 10CPI | 440 cps | |
| HIGH SPEED DRAFT | 12CPI | 529 cps | |
| DRAFT | 10CPI | 330 cps | |
| DRAFT | 12CPI | 396 cps | |
| DRAFT | 15CPI | 495 cps | |
| DRAFT | 17CPI (Condensed) | 559 cps | |
| DRAFT | 20CPI (Condensed) | 658 cps | |
| LQ | 10CPI | 110 cps | |
| LQ | 12CPI | 132 cps | |
| LQ | 15CPI | 165 cps | |
| LQ | 17CPI (Condensed) | 187 cps | |
| LQ | 20CPI (Condensed) | 220 cps | |
| PRINT CHARACTERISTICS | |||
| CHARACTER SETS | 14 international character sets 13 character code tables (Standard) Italic, PC437, PC850, PC860, PC861, PC863, PC865, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO 8859-15 |
||
| BITMAP FONTS | |||
| Epson Draft | 10, 12, 15 cpi | ||
| Epson Roman | 10, 12, 15 cpi, Proportional | ||
| Epson Sans Serif | 10, 12, 15 cpi, Proportional | ||
| Epson Courier | 10, 12, 15 cpi | ||
| Epson Prestige | 10, 12, cpi | ||
| Epson Script | 10, cpi | ||
| Epson OCR-B | 10, cpi | ||
| Epson Orator | 10, cpi | ||
| Epson Orator-S | 10, cpi | ||
| Epson Script C | Proportional | ||
| SCALABLE FONTS | |||
| Epson Roman | 10.5pt., 8pt. - 32pt. (every 2pt.) | ||
| Epson Sans Serif | 10.5pt., 8pt. - 32pt. (every 2pt.) | ||
| Epson Roman T | 10.5pt., 8pt. - 32pt. (every 2pt.) | ||
| Epson Sans Serif H | 10.5pt., 8pt. - 32pt. (every 2pt.) | ||
| BAR CODE | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet | ||
| PRINTABLE COLUMNS | |||
| PITCH (cpi) | Characters per line | ||
| 10 cpi | 136 | ||
| 12 cpi | 163 | ||
| 15 cpi | 204 | ||
| 17 cpi condensed | 233 | ||
| 20 cpi condensed | 272 | ||
| PAPER HANDLING | |||
| PAPER PATH | |||
| Manual Insertion : | (Front or rear in, top out) | ||
| Push Tractor : | (Front or rear in, top out) | ||
| Pull Tractor : | (Front or rear or bottom in, top out) | ||
| Cut Sheet Feeder | (Rear in, top out) | ||
| CUT SHEET SIZE | Width: 100 - 420mm (3.9 - 16.5") | ||
| Length: 100 - 420mm (3.9 - 16.5") | |||
| ENVELOPES | No.6, No.10 | ||
| CONTINUOUS PAPER SIZE | Width: 101.6 - 406.4 mm (4 - 16") | ||
| Length: 101.6 - 558.8 mm (4 - 22") | |||
| PAPER THICKNESS | |||
| CUT SHEET | 0.065 - 0.14mm (0.0025 - 0.0055") | ||
| MULTI-PART FORMS | 0.12 - 0.39mm | ||
| ENVELOPES | 0.16 - 0.52 mm | ||
| CONTINUOUS PAPER | single sheet / multi part forms 0.065 - 0.39mm (0.0025 - 0.0018") | ||
| LABEL BASE SHEET | 0.07 - 0.09mm (0.0028 - 0.0035 inch) | ||
| TOTAL SHEET | 0.16 - 0.19 mm (0.0063 - 0.0075 inch) | ||
| PAPER FEEDING | |||
| STANDARD FRICTION | (front in, top out) | ||
| PUSH TRACTOR | (rear in, top out)(front in, top out) | ||
| PULL TRACTOR | (rear in, top out)(front in, top out)(bottom in, top out) | ||
| OPTIONAL FEEDER | |||
| CUT SHEET FEEDER | (rear in, top out) | ||
| PUSH-PULL TRACTOR | (rear in, top out)(front in, top out) | ||
| COPIES | 1 Original + 4 copies always | ||
| ACCOUSTIC NOISE | 52db(A) (ISO7779 pattern) | ||
| LINE SPACING | 4.23mm (1/6") | ||
| INPUT DATA BUFFER | 128 KByte | ||
| INTERFACE | |||
| STANDARD | Bi-directional parallel interface (IEE - 1284 nibble mode supported), USB (ver 1.1) I/F |
||
| OPTION | Type B I/F level 2 | ||
| RIBBON CARTRIDGE | |||
| COLOUR | Black | ||
| TYPE | Fabric ribbon cartridge | ||
| RIBBON LIFE | Approx. 8 million characters | ||
| RELIABILITY | |||
| MEAN PRINT VOLUME | |||
| BETWEEN FAILURE (MVBF) | 40 million lines (except print head) | ||
| MTBF | 20,000 POH | ||
| PRINT HEAD LIFE | 400 Million strokes / wire | ||
| CONTROL PANEL | 6 Switches and 10 LED's | ||
| ENVIRONMENTAL CONDITIONS (OPERATING) | |||
| TEMPERATURE | 5 - 35° C | ||
| HUMIDITY | 10 - 80% RH | ||
| ELECTRICAL SPECIFICATIONS | |||
| RATED VOLTAGE | AC 220 - 240V | ||
| RATED FREQUENCY | 50 - 60Hz | ||
| POWER CONSUMPTION | Approx. 42W (ISO/IEC 10561 Letter Pattern) (AC 120V / AC 220 - 240V) Approx. 44W (ISO / IEC 10561 Letter Pattern) (UPS version) |
||
| DIMENSIONS | |||
| width | 589 mm | ||
| DEPTH | 350 mm | ||
| height | 167.5 mm | ||
| WEIGHT | Approx. 9.5 Kg | ||
| PRINTER DRIVER / UTILITY | |||
| OS | Microsoft® Windows® NT 4.0 / 95 / 98 / 2000 / Me / XP | ||
| UTILITY | Epson Status Monitor 3 (Microsoft® Windows® NT 4.0 / 95 / 98 / 2000 / Me / XP | ||
| Standard Warranty | 12 months return to base | ||
| * For more information visit www.epson.com.au/warranty/ | |||
Product Options
| Options | |
|---|---|
| RIBBON CARTRIDGE (BLACK) | C13S015336 |
| HIGH CAPABILITY CUT SHEET FEEDER | C12C806402 |
| SINGLE BIN CUT SHEET FEEDER | C12C806392 |
| PULL TRACTOR UNIT | C12C800212 |
| ROLL PAPER HOLDER | C12C811141 |
| I/F BUFFERED 32KB | C12C823102 |
| I/F SERIAL BOARD | C12C823061 |
| I/F 32KB SERIAL CARD | C12C823081 |
| I/F ETHERNET | C12C823623 |
