Back catalogue – Stylus Pro GS6000 - 64"

Stylus Pro GS6000 - 64

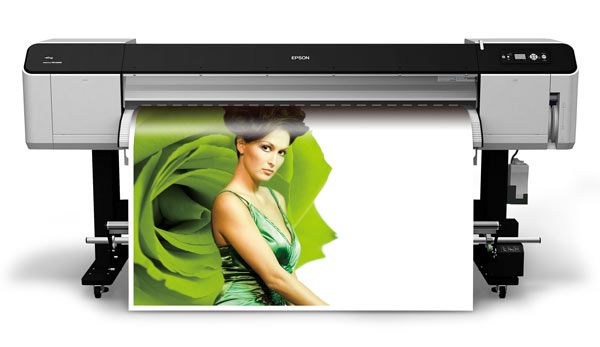

IF Product Design Award 2009 Introducing the Epson Stylus Pro GS6000 – the 64 – inch durable graphics printer designed to meet both outdoor and indoor display needs of printing professionals. Along with the new Epson UltraChrome GS solvent ink and dual eight-channel print heads, the Epson Stylus Pro GS6000 delivers a wide range of new and advanced technologies designed to set new quality and performance standards in the sign and display market.



SIZE 64 inch wide
INK MODE 8 colour
Print Technology
Print Head Epson Dual Array MicroPiezo Print Head
Nozzle Configuration 360 nozzles per colour
Print Direction Bi-directional printing, uni-directional printing
Print Resolution
Maximum resolution 1440dpi x 1440dpi with Epson Variable-sized Droplet Technology
Minimum Ink Droplet Size 3.7pl
INK SYSTEM
Ink Name Epson UltraChrome GS
Ink Type Epson Solvent Ink
Configuration 8-Colours (C, M, Y, LC, LM, K, O, G)
Ink Capacity 950ml
PRINTER SPEED
Vinyl- High Quality Mode 5.8m²/h (1440 x 720dpi)
Vinyl-Production Mode 9.2m²/h (540 x 720dpi)
Banner-Production Mode 25.2m²/h (720 x 360dpi)
PRINTER DRIVER Communication Driver Only
PAPER INPUT CAPABILITY
ROLL MEDIA Single roll 1 roll < 170mm / Outside diameter
  Media width 300mm -1626mm
  Maximum roll weight 30kg
  Maximum Media thickness 1.3mm
PAPER OUTPUT CAPABILITY Output bin, Automatic reel system
PRINTING AREA (WIDTH)
Maximum paper width 64"
Maximum print width 63.6"
MAINTENANCE PARTS
Maintenance kit C12C890611
Ink Cleaner C12C890621
Cleaning Cartridge C13T623000
Carrying Bar C12C890541
Heating System
Heaters Three Individual Heat Control Systems
Heater Locations Pre-Heater, Platen Heater, After -Heater
Heater Settable Temperature 30ºC-50ºC (Pre-Heater, Platen Heater, After-Heater)
ROLL Core diameter 2" or 3", Max. Outside Diameter Ø 150mm
MEMORY 320MB
LANGUAGES ESC / P2 Raster
INTERFACES (STANDARD)
  USB2.0 (Compatible with 1.1)
  Gigabit ethernet
VOLTAGE / CURRENT / FREQUENCY AC 100-120V / 220-240V
POWER CONSUMPTION
Operating with heater 680W
STANDBY with heater off 40W (100-120V), 48W(220-240V)
Sleep 24W
DIMENSIONS
  2698 x 943 x 1267 (mm)
Weight Printer:150kg
  Stand approx: 33kg
  Take-up reel: 19kg
CONSUMABLES
Black Ink Cartridge C13T624100
Cyan Ink Cartridge C13T624200
Magenta Ink Cartridge C13T624300
Yellow Ink Cartridge C13T624400
Light Cyan Ink Cartridge C13T624500
Light Magenta Ink Cartridge C13T624600
Green Ink Cartridge C13T624700
Orange Ink Cartridge C13T624800
WARRANTY
12 Months On-Site Warranty Standard
  Epson Warranty Details


PAPER & INK

‡ The printer ships with an initial set of ink cartridges and cleaning cartridges. Yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature.

When an ink cartridge needs replacing, you cannot continue copying or printing even if the other cartridges do not need replacing.

Leave the cartridge that needs replacing installed in the printer until you have obtained a replacement. Otherwise the ink remaining in the print head nozzles may dry out.

To ensure ongoing print quality and trouble-free operation, a variable amount of ink remains in the cartridge after the “Replace Cartridge” indicator comes on.

The Epson Intellidge™ Ink System is designed to work perfectly in harmony with the printer and your choice of media to ensure you get:
  • the very best of print quality every print, every time
  • and trouble-free, peace-of-mind printing every print, every time

The Epson Intellidge™ Ink System brings maximum benefits, maximum ink usage and the interchange of Epson cartridges suitable for this model. The Epson Intellidge™ Ink System gives you easy-to-see, readily available information about all your ink levels.
SIZE 64 inch wide
INK MODE 8 colour
Print Technology
Print Head Epson Dual Array MicroPiezo Print Head
Nozzle Configuration 360 nozzles per colour
Print Direction Bi-directional printing, uni-directional printing
Print Resolution
Maximum resolution 1440dpi x 1440dpi with Epson Variable-sized Droplet Technology
Minimum Ink Droplet Size 3.7pl
INK SYSTEM
Ink Name Epson UltraChrome GS
Ink Type Epson Solvent Ink
Configuration 8-Colours (C, M, Y, LC, LM, K, O, G)
Ink Capacity 950ml
PRINTER SPEED
Vinyl- High Quality Mode 5.8m²/h (1440 x 720dpi)
Vinyl-Production Mode 9.2m²/h (540 x 720dpi)
Banner-Production Mode 25.2m²/h (720 x 360dpi)
PRINTER DRIVER Communication Driver Only
PAPER INPUT CAPABILITY
ROLL MEDIA Single roll 1 roll < 170mm / Outside diameter
  Media width 300mm -1626mm
  Maximum roll weight 30kg
  Maximum Media thickness 1.3mm
PAPER OUTPUT CAPABILITY Output bin, Automatic reel system
PRINTING AREA (WIDTH)
Maximum paper width 64"
Maximum print width 63.6"
MAINTENANCE PARTS
Maintenance kit C12C890611
Ink Cleaner C12C890621
Cleaning Cartridge C13T623000
Carrying Bar C12C890541
Heating System
Heaters Three Individual Heat Control Systems
Heater Locations Pre-Heater, Platen Heater, After -Heater
Heater Settable Temperature 30ºC-50ºC (Pre-Heater, Platen Heater, After-Heater)
ROLL Core diameter 2" or 3", Max. Outside Diameter Ø 150mm
MEMORY 320MB
LANGUAGES ESC / P2 Raster
INTERFACES (STANDARD)
  USB2.0 (Compatible with 1.1)
  Gigabit ethernet
VOLTAGE / CURRENT / FREQUENCY AC 100-120V / 220-240V
POWER CONSUMPTION
Operating with heater 680W
STANDBY with heater off 40W (100-120V), 48W(220-240V)
Sleep 24W
DIMENSIONS
  2698 x 943 x 1267 (mm)
Weight Printer:150kg
  Stand approx: 33kg
  Take-up reel: 19kg
CONSUMABLES
Black Ink Cartridge C13T624100
Cyan Ink Cartridge C13T624200
Magenta Ink Cartridge C13T624300
Yellow Ink Cartridge C13T624400
Light Cyan Ink Cartridge C13T624500
Light Magenta Ink Cartridge C13T624600
Green Ink Cartridge C13T624700
Orange Ink Cartridge C13T624800
WARRANTY
12 Months On-Site Warranty Standard
  Epson Warranty Details


PAPER & INK

‡ The printer ships with an initial set of ink cartridges and cleaning cartridges. Yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature.

When an ink cartridge needs replacing, you cannot continue copying or printing even if the other cartridges do not need replacing.

Leave the cartridge that needs replacing installed in the printer until you have obtained a replacement. Otherwise the ink remaining in the print head nozzles may dry out.

To ensure ongoing print quality and trouble-free operation, a variable amount of ink remains in the cartridge after the “Replace Cartridge” indicator comes on.

The Epson Intellidge™ Ink System is designed to work perfectly in harmony with the printer and your choice of media to ensure you get:
  • the very best of print quality every print, every time
  • and trouble-free, peace-of-mind printing every print, every time

The Epson Intellidge™ Ink System brings maximum benefits, maximum ink usage and the interchange of Epson cartridges suitable for this model. The Epson Intellidge™ Ink System gives you easy-to-see, readily available information about all your ink levels.
