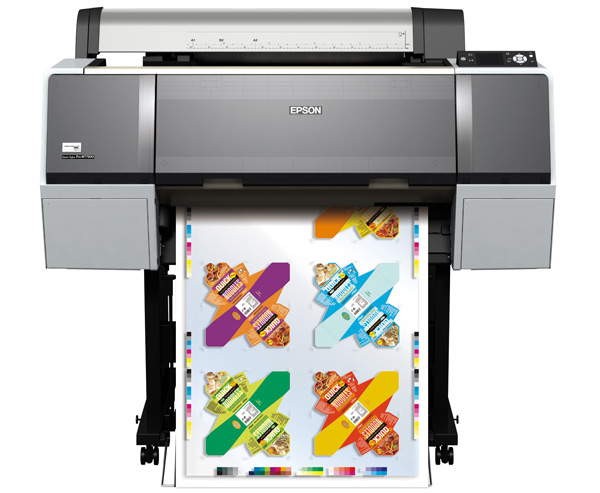

Back catalogue – Stylus Pro WT7900 - 24" A1
Introducing the world’s first water based white ink package proofer. The Epson Stylus Pro WT7900 is an affordable, low maintenance proofer that produces high quality, colour accurate package proofs on both clear and opaque substrates. This ground breaking package proofer utilises Epson’s patented water-based white ink technology and is supported by leading packaging software companies.
Using Epson’s innovative Micro Piezo TFP Print Head and Epson’s ClearProof Film™ this advanced inkjet proofer sets new standards in package proofing for graphic arts professionals and brand owners.
- Epson UltraChrome® HDR with White Ink technology
- Epson ClearProof Film™ with unique crystal clear coating technology
- Epson Micro Piezo TFP print head with advanced coating technology
- Professional media handling up to 24 inch wide
- 9 colour ink set with orange and green (available in 350 or 700 ml capacity)
- Direct to film in under 16 minutes (A2 size proof)
- 1440 x 1440 dpi maximum print resolution
- Easy to use with low maintenance
- Variable Sized Droplet Technology
- Ultra-Smooth colour and white gradations
- Supported by leading software companies for easy integration into existing packaging workflows
- USB2.0 and ethernet connections standard
- Epson Stylus Pro WT7900 Software Options - click here
| PRODUCT NAME: | Package Proofer | |
|---|---|---|
| PRODUCT CODE: | PROWT7900 | |
| SIZE | 24 inch wide | |
| INK MODE | 9 Colour - inc. Orange & Green (11 inks onboard) | |
| PRINT TECHNOLOGY | ||
| Print Head | MicroPiezo TFP (Thin Film Piezo) Print Head | |
| Automatic Head Alignment Technology | ||
| Nozzle Configuration | 360 nozzles per colour | |
| Automatic Nozzle Check Technology | ||
| Print Direction | Bi-directional printing, uni-directional printing | |
| PRINT RESOLUTION | ||
| Maximum Resolution | 1440dpi x 1440dpi with Epson Variable-Sized Droplet Technology | |
| Minimum Ink Droplet Size | 3.5pl | |
| INK SYSTEM | ||
| Ink Type | Epson UltraChrome HDR (High Dynamic Range) with White Ink | |
| Configuration | C, M, Y, PK, LC, LM, O, G, W, Cl with 11 slots | |
| Ink Cartridge | Individual high capacity, hot swappable ink cartridge | |
| Ink Capacity | 150ml (selected colours only), 350ml or 700ml | |
| PRINTER DRIVER | n.a. (RIP support only) - Windows® 7/7x64/Vista/Vista64/XP/XPx64/2000 | |
| PAPER INPUT CAPABILITY | ||
| ROLL MEDIA | Single Roll | 1 roll < 170mm / Outside diameter |
| Media width | 254mm - 610mm | |
| Maximum Media thickness | 0.08mm - 1.5mm | |
| PAPER OUTPUT CAPABILITY | Film stacker, Rotary cutter blade, single roll system | |
| PRINTING AREA (WIDTH) | ||
| Maximum paper width | Roll Paper 406mm - 610mm, 2 / 3 inch core Cut Sheet 210mm - 610mm |
|
| CONSUMABLE PARTS | Cutter blade, maintenance tank | |
| CONTROL PANEL | ||
| Colour | 2.5 inch LCD screen | |
| Size | 320 x 200 pixels | |
| ROLL DIMENSIONS | Core diameter 2" or 3", Max. Outside Diameter Ø 150mm | |
| MEMORY | ||
| Printer | 256MB | |
| Network | 64MB | |
| LANGUAGES | ESC / P2 Raster | |
| INTERFACES(STANDARD) | ||
| USB2.0 (Compatible with 1.1) 10Base-T 100 Base-TX |
||
| VOLTAGE / CURRENT | 100 - 120V / 220 - 240V | |
| POWER CONSUMPTION | ||
| Operating | 70W | |
| Sleep | <16W | |
| Standby | <1W | |
| Sleep | <16W | |
| DIMENSIONS | ||
| 1356mm x 667mm x 1218mm | ||
| WEIGHT | ||
| 84.5kg (includes stand) | ||
| WARRANTY | ||
| 12 Months On-Site Warranty | Standard | |
| ** Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson Australia or one of our Authorised Large Format Resellers if you have questions or concerns. | ||
