Back catalogue – Epson SurePress L-4033A

A Whole New Approach to Greater Profitability
It's never been easier to go digital — introducing Epson's new SurePress L-4033A, a breakthrough, short-run digital label press offered with pre-and post-press options that can be tailored to meet various needs and budgets.
Visit SurePress Microsite for more information
The Epson digital label press capitalizes on Epson's acclaimed MicroPiezo® ink jet technology to create output with smooth gradations and incredible colour quality. Its six-colour (Cyan, Magenta, Yellow, Black, Orange and Green), industrial-quality, water-based ink set produces a remarkable range of colours for impressive, professional and consistent results. Driving this best-in-class ink jet technology are the included RIP and colour management tools from Wasatch and X-Rite. The Wasatch SoftRIP provides intuitive workflow controls and the i1Pro bundle allows for the creation of custom ICC profiles per selected substrates, ensuring consistent and repeatable printing results.
The Epson SurePress also delivers on substrate versatility. With no pre-treatment or top coating required, a variety of standard off-the-shelf substrates can be used at variable web widths up to 13 inches wide. By working with industry-leading manufacturers on every aspect of digital label production, from colour management to media and finishing options, Epson offers a new, open approach that will make the adoption of digital short-run label printing easier and more profitable.
Visit SurePress Microsite for more information
SIZE | ||
---|---|---|
13 inches | ||
PRINT TECHNOLOGY | ||
Print Mechanism | 15 x Head Array with lateral scanning, anti-crash detection, auto nozzle check & clean | |
Head Mechanism | Epson MicroPiezo with 180 nozzles x 8 rows & VSDT | |
Max Resolution | 1440 x 2880 dpi max (720 x 1440 dpi Production) | |
Minimum Drop Size | 3.0 picolitres | |
INK SYSTEM | ||
Family | SurePress AQ | |
Type | Water-based, resin-coated pigment | |
Colours & Cart Loading | 2 x (Black, Uncoated Black, Cyan, Magenta, Yellow, Orange & Green) ![]() |
|
2 x Over Print 4 x Moisture Liquid |
||
Cartridge Size | 700ml ea. | |
PRINT PERFORMANCE | ||
Paper | 5.0 m/min 4pass @ 720 x 720 dpi (Fast Production) 3.6 m/min 6pass @ 720 x 1080 dpi (Normal Production) 2.8 m/min 8pass @ 720 x 1440 dpi (Quality Production) |
|
Film | 2.8 m/min 8pass @ 720 x 1440 dpi (Normal Production) 1.4 m/min 16pass @ 720 x 1440 dpi (Quality Production) |
|
Note: Print speeds are provided for comparison purposes only. They do not include image processing/ transfer times, are RIP dependant and not all print modes are compatible / recommended for all media types. | ||
SUBSTRATE SUPPORT | ||
Formats | Roll based with 3" core, 600mm max diameter (including core) 80-330.2mm wide, 1000m max length, 100kg max weight |
|
Thickness | 0.10 - 0.32 mm or 100 - 320 microns (4 - 12.6 mil) | |
Media Types | Standard self-adhesive label stock and film (no pre-coating required) Semi-gloss, gloss, and matte paper stock Coated paper, cast coated paper, uncoated paper, PP, BOPP, PET & Yupo |
|
Max Print Area | 315.2mm x 914.4mm per frame | |
Drying System | Platen Heater: 35° to 45°C adjustable (45°C recommended) Air Dryer: 50° to 75°C adjustable (75°C recommended) |
|
Output | Re-winder (optional) | |
OPERATION | ||
Control Panel | Touchscreen LCD | ![]() |
Networking | Ethernet 1000 Base-T | |

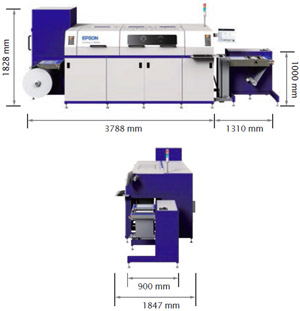

Dimensions (WxHxD) | Printer: 3788 x 1828 x 1847mm Rewinder: 1310 x 1000 x 900mm |
|
Weight | Printer: 1,750kg Rewinder: 180kg |
|
ENVIRONMENT | ||
Operating Temperature | 18° to 28°C (20-26°C recommended) | ![]() |
Operating Humidity | 35 to 55% (no condensation) | |
Power Supply | 200V AC (Three phase), 50-60Hz, 30A | |
Power Consumption | 6kW operating 4.8kW standby (1kW with heater off) |
|
Max Operating Noise | 75dB (excluding the alarm sound) | |

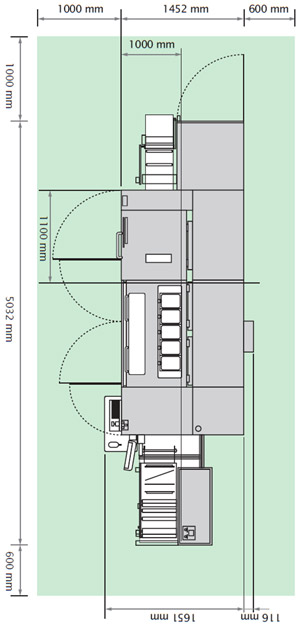

Operational Space (WxHxD) | 6.7 x 2.2 x 3.1m | |
Minimum Floor Stiffness | 400kg/m2 |
