Back catalogue – LQ-2190

When you need to deal with high volume data processing this 24-pin 136 column printer does the job quickly and efficiently.

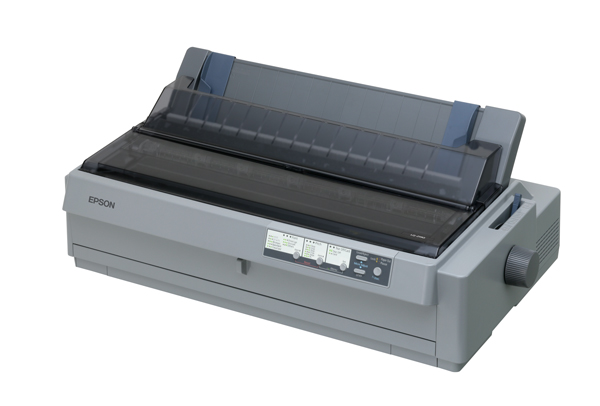

The Epson LQ-2190 is a 24-pin wide-format printer and like its predecessor – the LQ-2180 – it is a fast, flexible, cost-effective and highly reliable printing solution which combines large print volumes with high letter quality – ideal for applications such as invoices, delivery notes, inventory listings or even labels.
Key Features
- Robust and durable 24-pin wide format impact printer
- Very high print speed up to 480 cps (10 cpi)
- Equipped with ”Print Speed Enhancer” for even faster printing
- Highly reliable with an MTBF of 20,000 power-on hours
- Reliable print head life of 400 million strokes/wire
- Long-lasting ribbon, approx. 15 million characters
- Copy capability of 1 original + 5 copies
- Two tractor units as standard
- Versatile front, bottom and rear paper paths
- USB and parallel interfaces
- Low power consumption
Reliability
With MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.
Speed
Its high print speed of up to 480 cps (10 cpi) makes it an ideal solution for high volume applications. For those who demand even higher productivity especially for complex fonts like Arabic, the new unique Epson Print Speed Enhancer accelerates the print speed even further.
Flexibility
Flexible paper management allows insertion at the front, rear and bottom and dual tractor units allow you to load two sizes of paper at the same time, ready for use. The ability to print on 6-part stationery is useful for multipart forms. With the addition of USB interface, the LQ-2190 also provides flexible stand-alone connectivity.
High Ribbon Yield
At 15 million characters per ribbon, the LQ-2190 also offers a very long ribbon life. The benefits are long ribbon replacement intervals, low running costs and lower total cost of ownership.
Low Power Consumption
By improving the control, the power consumption has been significantly reduced, so LQ-2190 becomes more environmentally-friendly and reduces the effects on the environment.
PRINTER TYPE | Impact Dot Matrix | ||
---|---|---|---|
Product Name | |||
Product Code | |||
Number of Pins in Head | 24 pins | ||
Print Direction | Bi-directional with logic seeking | ||
Control Code | ESC/P2 and IBM PPDS emulation | ||
PRINT SPEED | |||
High speed draft 10 cpi | 480 cps | ||
High speed draft 12cpi | 576 cps | ||
Draft 10 cpi | 360 cps | ||
Draft 12 cpi | 432 cps | ||
Draft 15 cpi | 540 cps | ||
Draft 17 cpi (condensed) | 308 cps | ||
Draft 20 cpi (condensed) | 360 cps | ||
LQ 10 cpi | 120 cps | ||
LQ 12 cpi | 144 cps | ||
LQ 15 cpi | 180 cps | ||
LQ 17 cpi condensed | 180 cps | ||
LQ 20 cpi condensed | 240 cps | ||
cpi : characters per 25.4 mm (characters per inch) cps : characters per second |
|||
PRINT CHARACTERISTICS | |||
Character sets | 14 international character sets and one legal character sets. 1 Italic and 12 graphical character tables Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
||
Fonts | |||
Bitmap Fonts | Epson Draft 10, 12, 15cpi Epson Roman 10, 12, 15 cpi proportional Epson Sans Serif 10, 12, 15 cpi, proportional Epson Courier 10, 12, 15 cpi Epson Prestige 10, 12 cpi Epson Script 10 cpi Epson Script C Proportional Epson OCR-B 10 CPI Epson Orator 10 cpi Epson Orator-S 10 cpi |
||
Scalable Fonts | Epson Roman 8 to 32 points Epson Sans Serif 8 to 32 points Epson Roman T 8 to 32 points Epson Sans Serif H 8 to 32 points |
||
Bar Code Font | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A UPC-E, Code 39, Code 128, POSTNET Coda bar(NW-7), Industrial2 of 5, Matrix2 of 5 cpi : characters per 25.4 mm (characters per inch) |
||
PRINTABLE COLUMNS | |||
Characters per line | 10cpi 136 cpl 12cpi 163 cpl 15cpi 204 cpl 17cpi condensed 233 cpl 20cpi condensed 272 cpl cpi : characters per 25.4 mm (characters per inch), cpl : characters per line |
||
PAPER HANDLING | |||
Standard | Manual Insertion (Front or rear in, top out), Push Tractor (Front or rear in, top out), Pull Tractor (Front or rear or bottom in, top out) |
||
PAPER MEDIA | |||
Cut Sheet (Single sheet) Entry : Front Width Length Thickness |
100 - 420 mm (3.9 - 16.5 inch) 148 - 420 mm (5.8 - 16.5 inch) 0.065 - 0.14 mm (0.0025 - 0.0055 inch) |
||
Entry : Rear Width Length Thickness |
100 - 420 mm (3.9 - 16.5 inch) 100 - 420 mm (3.9 - 16.5 inch) 0.065 - 0.14 mm (0.0025 - 0.0055 inch) |
||
Cut Sheet (Multi part) Entry : Front Width Length Copies Thickness |
100 - 420 mm (3.9 - 16.5 inch) 148 - 420 mm (5.8 - 16.5 inch) 1 original + 5 copies 0.12 - 0.46 mm (0.0047 - 0.018 inch) |
||
Entry : Rear Width Length Copies Thickness |
100 - 420 mm (3.9 - 16.5 inch) 100 - 420 mm (3.9 - 16.5 inch) 1 original + 5 copies 0.12 - 0.46 mm (0.0047 - 0.018 inch) |
||
Continuous paper (Single sheet and Multi part) Entry : Front, Rear, Bottom Width Length Copies Thickness |
101.6 - 406.4 mm (4 - 16 inch) 101.6 - 558.8 mm (4 - 22 inch) 1 original + 5 copies 0.065 - 0.46 mm (0.0025 - 0.018 inch) |
||
Roll Paper Entry : Rear Width Length Diameter Thickness |
216 mm (8.5 inch) - 127 mm (5 inch) 0.07 - 0.09 mm (0.0028 - 0.035 inch) |
||
Envelope (NO.6) Entry : Rear Width Length Thickness |
165 mm (6.5 inch) 92 mm (3.6 inch) 0.16 - 0.52 mm (0.0063 - 0.020 inch) |
||
Envelope (NO.10) Entry : Rear Width Length Thickness |
241 mm (9.5 inch) 105 mm (4.1 inch) 0.16 - 0.52 mm (0.0063 - 0.020 inch) |
||
Label Entry : Bottom Base Sheet Width Base Sheet Length Total Thickness |
101.6 - 406.4 mm (4 - 16 inch) 101.6 - 558.8 mm (4 - 22 inch) 0.16 - 0.19 mm (0.0063 - 0.0075 inch) |
||
Card Entry : Front, Rear Width Length Thickness |
100 - 200 mm (3.9 - 7.8 inch) 148 - 200 mm (5.8 - 7.8 inch) 0.22 mm (0.0087 inch) |
||
Line Spacing | 4.23 mm (1/6 inch) or programmable in increments of 0.0706 mm (1/360 inch) | ||
INTERFACE | |||
Standard | Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Type B I/F level 2 (Option) | ||
INPUT DATA BUFFER | 128 KB | ||
RIBBON CARTRIDGE | |||
Colour | Black | ||
Type | Fabric Ribbon Cartridge | ||
Ribbon life | Approx.15 million characters | ||
RELIABILITY | |||
Mean Print Volume Between Failure | 40 million lines (except print head) | ||
Mean Time Between Failure | 20,000 Power on Hours (25% duty cycle) | ||
Print Head Life | 400 million strokes/wire | ||
CONTROL PANEL | |||
6 switches and 10 LEDs are located on the panel | |||
ENVIRONMENTAL CONDITIONS (operating) | |||
Temperature | 5° to 35° C | ||
Humidity | 10 to 80% RH | ||
ELECTRICAL SPECIFICATIONS | |||
Rated Voltage | 220V~240V | ||
Rated frequency | 50 to 60 Hz | ||
Power consumption | 46W (ISO 10561 Letter pattern) Approx. 3 W in sleep mode 0 W in powered off mode |
||
DIMENSIONS | |||
Width | 639 mm | ||
Depth | 402 mm | ||
Height | 256 mm | ||
Weight | Approx. 13 kg | ||
Acoustic Noise | 54 dB | ||
PRINTER DRIVER / UTILITY | |||
Operating System EPSON Status Monitor 3 EPSON Printer Setting |
Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® Microsoft® Windows®2000 / XP / 7, Microsoft® Windows Vista® Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
||
Standard Warranty | 12 months return to base) | ||
* For more information visit www.epson.com.au/warranty/ |
Product Options
Product Code | Description |
---|---|
Media Handling Options | |
C12C811141 | Roll Paper holder |
C12C800322 | Pull tractor |
Interfaces | |
C12C824432 | Type B serial interface |
Options | |
C12C824352 | 10/100 BaseTX Internal Print Server |
