Back catalogue – TM-H6000III
Multifunction transaction printer, allowing automation of a manual process

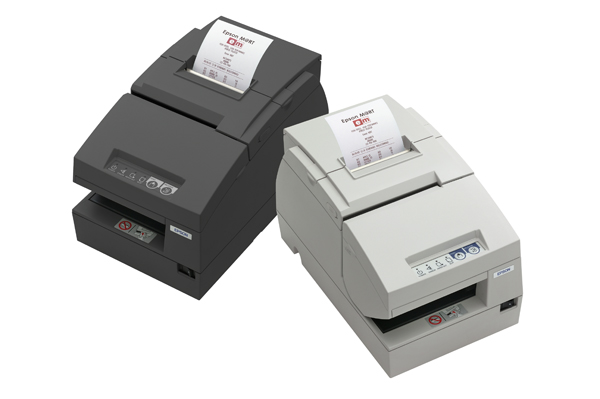

The TM-H6000 Series is Epson's market leading versatile printer with a high speed thermal receipt printer and impact dot matrix slip printer, offering optional functions including endorsement printing and slip image scanner. The latest upgrade to the TM-H6000 Series enables customer ID scanning at the point of sale.
Identification can be scanned at the Point of Sale as part of a transaction. Data captured can be used at the POS or stored in a database. This is applicable to industries that require identification, such as Proof of Age or Proof of Identity at the transaction point.
Outstanding Features
- Two Colour receipt printing
- High speed printing at 200 mm/sec (63 LPS)
- Single pass reading, scanning, endorsing & printing of cheques
- Model configurations now include image scanner and Photo ID scanner
- Drop in paper load
- High speed graphics printing
- DM-D Customer Display connectivity
- High reliability with a MCBF rating of 72 million lines for receipts, 18 million lines for slips, cutter life of 1.5 million cuts, ribbon life of 6 million characters
Developer Support
As with all of Epson's range of POS products, we provide a comprehensive suite of drivers and utilities, to reduce the costs of development and integration. Please contact us for more information on your application requirements.
ESC/POS is a registered trademark of Seiko Epson CORPORATION.
Epson is a member of the OPOS committee| Receipt | Slip | Endorsement Printer | |
| Print Method | Thermal line printing | 9-pin serial impact dot matrix | 8-pin shuttle impact dot matrix |
| Print Font | 9*17 / 12*24 | 5*9 / 7*9 | 5*7 |
| Column capacity | 56 / 42 columns | 45 / 60 columns | 40 columns |
| Character size | 0.99 (W) * 2.4 (H) mm | 1.24 (W) * 3.1 (H) mm | 1.1 (W) * 2.52 (H) mm |
| Character set | 95 Alphanumeric | ||
| 37 International | |||
| 128 * 8 Graphic | 128 * 8 Graphic | - | |
| Print Speed | 140 mm/s (44LPS,1/8conversion) |
Approx. 4.6 LPS (40 columns, 17.8CPI) |
Approx. 1.9 LPS |
| Data Buffer | 45 or 4K bytes | ||
| Interface | RS-232C / Bi-directional parallel / RS-485 / USB / Others* | ||
| Paper Dimensions | 79.5 ± 0.5*dia. 83.0 mm | 70 (W) * 150 (L) to 148 (W) * 210 (L) mm | 70 (W) * 150 (L) to 148 (W) * 210 (L) mm |
| Paper Thickness | 0.06 to 0.09 mm | 0.09 to 0.31 mm | 0.09 to 0.2 mm |
| Copy Capability | One original and two copies | One original single-ply | |
| Inked Ribbon | ERC-32 (Purple) | ERC-41 (Purple) | |
| Ribbon Life | 6 106 characters | 1 106 characters | |
| Supply voltage | 24 VDC ± 10 % | ||
| Current Consumption | Approx. 1.8 A (mean) | ||
| D.K.D. Function | 2 drivers | ||
| Reliability | MTBF: 36*104 hours | MTBF: 18*104 hours | |
| MCBF: 52*106 lines | MCBF: 18*106 lines | ||
| Overall Dimensions | 186 (W) * 298 (D) * 185 (H) mm | ||
| Weight | Approx. 5.8 kg | ||
| Factory options | MICR device, Endorsement Printer | ||
| EMI Standards | VCCI class A, FCC class A, CE marking | ||
| Safety Standards | UL, C-UL, TÜV | ||
