Back catalogue – Epson TM-T88V-i Intelligent Printer

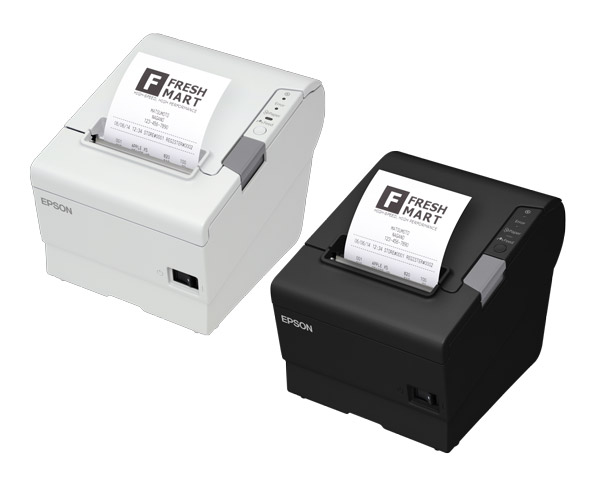

TM-T88V-i Intelligent POS Printer
The Epson TM-T88V-i provides users with a straightforward and elegant printing solution, with no need for drivers. Ideal for use with tablet PCs or mobile phones, the TM-T88V-i is simple to use and maintain, with the ability to print from any device running an HTML 5 compatible web browser. In addition, the TM-T88V-i has greyscale printing for the addition of logos and images to receipts.

KEY FEATURES
  • Supports printing from virtually any mobile / tablet device
  • Print via browsers : Print directly from HTML 5 browsers
  • No drivers needed : No drivers to install or update
  • Enables Cloud services without the need for legacy POS integration
  • Multi peripheral connectivity with up to 4 USB ports and 1 serial port
  • Controls peripherals from any mobile / tablet device
  • XML compatible : responds to web application commands
  • Fast print speed up to 300mm/sec and features print options to reduce paper usage
  • Industry-leading four-year warranty

Thermal Receipt Printers
ALL THE FEATURES YOU NEED
  • Printer with intelligent interface and built-in web server
  • Supports printing from virtually any mobile device
  • Enables cloud services without need for legacy POS integration
  • Offers 4 USB ports and 1 serial port to connect up to 5 peripherals
  • Controls peripherals from any mobile device
  • Fast print speeds up to 300mm/sec
PRINTER
MODEL NAME TM-T88V-i
PRINT METHOD Thermal line printing
PRINT FONT 9 x 17 / 12 x 24
COLUMN CAPACITY 56 / 42
CHARACTER SIZE (mm) 0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H)
CHARACTER SET 95 Alphanumeric, 16set International, 128 × 43 Graphic
CHARACTER PER INCH 20 CPI / 15 CPI
DATA BUFFER 4K bytes / 45 bytes
PRINT SPEED Max. 300mm/sec
PAPER DIMENSIONS (mm) Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0
PAPER THICKNESS (mm) 0.06 to 0.07
RELIABILITY
MTBF 360,000 hours (Printer) / 180,000 (Intelligent Interface)
MCBF 70,000,000 lines
AUTO CUTTER LIFE 2 million cuts (when using OJI Paper PD150R or PD160R)
GENERAL INFORMATION
PROCESSOR ARM9 Processor (400Mhz)
SYSTEM MEMORY 256MB
OS Embedded Linux
SOFTWARE WebPOS Configuration, ePOS-Device, Server Direct Print
INTERFACE Ethernet Inteface (100 Base-TX / 10 Base-T), USB 2.0 Type A (x4), USB 2.0 Micro-AB, Serial x 1 (D-Sub 9 Pin)
WEB SERVICE ePOS-Print Service
WEB SERVER Apache HTTP Server
UTILITY Epson TMNet WebConfig
– Register devices to be controlled using ePOS-Device
– Register settings for Web contents
– Setting for the server direct print and status notifications
– Network settings
– Various management functions
CONTROL OF OTHER EPSON PRINTERS Supported printers (Ethernet/Wireless) up to 20 units: TM-T88V, TM-T70II, TM-T70, TM-T90, TM-L90, TM-T82II, TM-P60II, TM-P80
SUPPORTED DEVICES POS printer, Cash drawer (Drawer supported by the TM-T88V), Customer display (DM-D110 USB), Standard HID devices (Barcode Scanner, Keyboard), Serial device
SAFETY STANDARDS EEMI AS / NZS CISPR22 class A
POWER 24 VDC ± 7%
POWER SUPPLY Dedicated AC-DC supply - In: AC100-240V / Out: DC24V (for TM), DC5V (for intelligent board)
D.K.D FUNCTION 2 drivers
OVERALL DIMENSIONS 145mm (W) x 195mm (D) x 148mm (H)
WEIGHT 1.6 kg
COLOUR Epson Black / Epson White
WARRANTY 4 year RTB warranty
OPTIONS Customer Display (DM-D110) USB i/f
Wireless LAN: OT-WL01 (802.11 b/g/n)


Epson OT-WL01 (732):
Wireless LAN set for Epson TM-i



Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.
