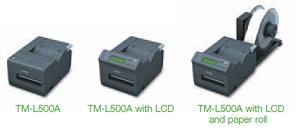

Back catalogue – Epson TM-L500A
Epson’s TM-L500A printer is the cost-effective solution for printing boarding passes and bag tags. It features high-speed printing, the reliability you need and support for AEA 2009 and Windows® print commands.
KEY FEATURES & BENEFITS
|
|
The features you need
Get the same functionality as an expensive proprietary printer at a low cost of ownership with Epson’s TM-L500A. It offers fast printing of boarding passes and bag tags at check-in counters, kiosks or gates at up to 200mm per second. It features an advanced paper path with a damper and guides to greatly reduces jams and can use large fan-fold or roll media. And it can print 2D barcodes PDF417, QR Code, Aztec and Datamatrix.
Supports industry standard
The TM-L500A supports industry standards including AEA 2009 and Windows print commands and is IATA CUSS/CUPPS compliant so it can be used with existing airline applications and new open platform solutions.
Reliability you can count on
The rugged TM-L500A is easy to use, easy to maintain and is extremely reliable.
Worldwide service and support programs available
Available on all Epson Airline Operations products through a global network of Epson service centres and authorised service providers.
Easy system integration
With its support of industry standards and USB, serial and Ethernet interfaces, the TM-L500A is a drop-in replacement for most current proprietary printers.
And Epson’s expert integration team ensures installation is trouble free.
Backed by the leader
Epson printers are at work in over 200 million systems worldwide and are renowned for their quality and reliability. The TM-L500A is no exception. It offers you superior features, high reliability, low cost of ownership and a path to open platform applications.
Airline Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| MODEL NAME | TM-L500A with LCD Panel | |||||
| GLOBAL CODE | C31CB49011 | |||||
| PRINT METHOD | Thermal line | |||||
| PRINT RESOLUTION | 203 x 203 dpi | |||||
| PRINT FONT | 12 x 24 | |||||
| COLUMN PITCH | 1.5mm | |||||
| CHARACTER SIZE | 1.25mm (W) x 3.0mm (H) | |||||
| CHARACTER SET | AEA, 95 Alphanumeric, 37 International, 128 x 11 Graphic | |||||
| BARCODE | EAN 13, Interleaved 2 of 5, Industrial 2 of 5, Code 39, Code 128 | |||||
| TWO-DIMENSIONAL CODE | PDF417, QR Code, Aztec, Datamatrix | |||||
| INTERFACES | USB plus serial, 25-pin serial, Ethernet | |||||
| PRINT SPEEDS | ||||||
| PAPER SPEED FEED | 250 mm/sec maximum | |||||
| ROLL PAPER | 200mm/ sec maximum | |||||
| BOARDING PASS | 150mm/sec depending on media quality | |||||
| BAGGAGE TAG | 200mm/sec depending on media quality | |||||
| PAPER | ||||||
| FAN-FOLD PAPER WIDTH | 54.0 ± 0.5mm, 79.5 ± 0.5mm, 82.5 ± 0.5mm | |||||
| ROLL PAPER WIDTH & ROLL DIA. | 54.0 ± 0.5mm x diameter 184.2mm, 79.5 ± 0.5mm x diameter 184.2mm, 82.5 ± 0.5mm x diameter 184.2mm | |||||
| POWER | 24 VDC ± 2.4 V | |||||
| POWER CONSUMPTION | Approx. 2.0A | |||||
| OPERATING TEMPERATURE | 5 to 45°C (storage -25 to 50°C) | |||||
| RELIABILITY | ||||||
| ROLL PAPER WIDTH & ROLL DIA. | 100 km paper feeding or 5 years, whichever comes first | |||||
| BOARDING PASS PRINTING | 300,000 boarding passes (print head) | |||||
| BAGGAGE TAG PRINTING | 100,000 tags (print head) | |||||
| MTBF | 360,000 hours | |||||
| OVERALL DIMENSIONS - NON LCD MODEL |
156mm (W) x 122mm (D) x 230mm(H) with optional roll holder 169mm (W ) x 490mm (D) x 218mm (H) | |||||
| OVERALL DIMENSIONS - LCD MODEL |
156mm (W) x 148mm (D) x 235mm(H) with optional roll holder 169mm (W ) x 496mm (D) x 218mm (H) | |||||
| WEIGHT | Approximately 2.8Kg Approximately 4.6kg with optional roll holder and no media |
|||||
| OTHER | ||||||
| POWER SUPPLY | AC adapter (PS-180) included | |||||

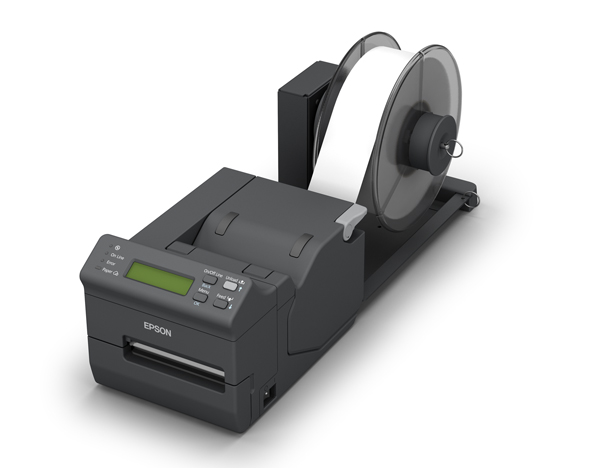

| FACTORY OPTION | Optional Roll holder - Global Code C32C811311 | |||||
| ACCESSORIES | AC adapter, user’s guide, setup guide - included | |||||
| WARRANTY | 1 Year - Return to Base | |||||
| EMC STANDARDS | FCC class A | |||||
| Safety STANDARDS | UL / CSA / EN / TÜV / GOST-R | |||||
| dpi: dots per 25.4mm (dots per inch) | ||||||
 |
||||||
| Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
