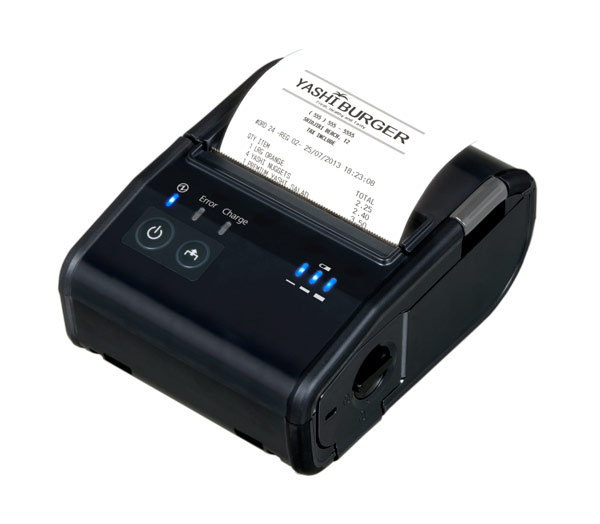

Back catalogue – Epson TM-P80
- Compatible with iOS, Android and Windows mobile devices
- Industry-leading operational battery life up to 46 hours
- 4-foot drop rating and IP54 environmental certified
- High printing speed of up to 100 mm/sec
- NFC fast pairing technology
- Supports 802.11 a/b/g/n with 2.4 GHz / 5 GHz compatibility and Bluetooth® 2.1 + EDR
- Offers paper-saving of up to 23%
- CPCL emulations available
- Industry-leading two-year warranty
| PRINTER | ||
|---|---|---|
| Model Name | TM-P80 | |
| Print Method | Thermal line printing | |
| Print Font | 48 cpl mode: Font A: 12 x 24 48cpl (default), Font B: 9 x 17 64cpl 42 cpl mode: Font A: 13 x 24 42cpl, Font B: 9 x 17 60cpl |
|
| Column Capacity (columns) | 58mm paper, Font A/B/C, 35/42/52 columns; 60mm paper, Font A/B/C, 36/43/54 columns |
|
| Character Size (mm) | 1.5 × 3.0 / 1.25 × 3.0 / 1.0 × 2.0 mm (W x H) | |
| Character Set | 95 Alphanumeric, 48 International, 128 × 10 Graphic Bar Code: : 1D: EAN-8, EAN-13, UPC-A, UPC-E, JAN13, JAN8, Code 39, Code 93, Code 128, ITF, CODEBAR, GS-1-128, GS1 DataBar, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded. 2D: QR Code, Maxi Code, PDF417, Composite, Data Matrix, RSS/GS1 and Aztec |
|
| Character Per Inch | 16/22 cpi (15/22 cpi: 42 cpl mode) | |
| Print Speed | Receipt mode 100mm/sec | |
| Resolution | 203 DPI × 203 DPI | |
| Paper width | 79.5mm | |
| Paper Diameter (max.) | 51mm | |
| Reliability | 10 million printing lines | |
| Paper Thickness (mm) possible for the manual cutter | 80μm or less | |
| GENERAL INFORMATION | ||
| Interfaces | 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 2.1 + EDR | |
| Supported mobile operating systems | WiFi (802.11): iOS, Android and Windows (Security Level WEP, WPA, WPA2-Enterprise) Bluetooth: iOS, Android and Windows |
|
| Data Buffer | 4096 bytes | |
| Audible alert | Programmable buzzer | |
| Sensors | Paper out | |
| LED Indicators | Green LED : Power (ON=Power on, OFF=Power off) Orange LED : Only shown when power is ON Error, Paper end, Cover open, Battery level low (printer does not operate) Blue LED : Four battery level indicators: 3 LED ON = approx. 100%–60% 2 LED ON = approx. 60%–20% 1 LED ON = approx. 20%–10% 1 LED Flashing = approx. 10%–1% |
|
| Software | TM-P80 Utility, EpsonNet Config, EpsonNet Simple Viewer, TM-P80 Remote Configuration Tool, TM Bluetooth Connector, Built-In Configuration Page | |
| Power | Custom Lithium-Ion battery pack, AC adapter (option) | |
| Battery Life | Up to 25 hours with 802.11n, up to 46 hours with Bluetooth 2.1 + EDR* without roll paper & belt clip | |
| Operating Temperature | 0° C to 45° C | |
| Drop rating | 4 feet (1.2m), IP54 environmental certified | |
| Overall Dimensions (mm) | 103 x 159 x 65 mm | |
| Weight (Approx) | 500g without roll paper & belt clip battery, belt clip | |
| Colour | Epson Black (EBCK) | |
| Power Supply (option) | PS-11 | |
| Warranty | Standard two year RTB warranty | |
| Option | Battery (Model: OT-BY60II), Power Supply (PS-11) | |
| * The TM-P80 battery life can last up to 25 hours for WiFi and up to 46 hours for Bluetooth. Battery life can vary significantly depending on usage. | ||
| Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
