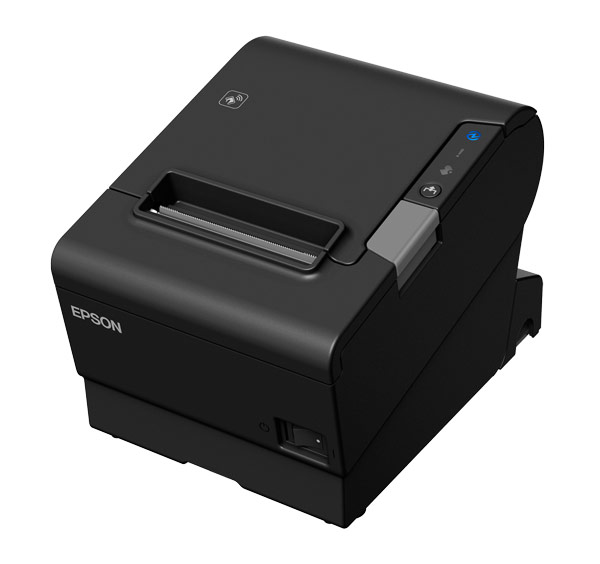

Back catalogue – Epson TM-T88VI
- Connect to multiple devices simultaneously – printer can be dynamically shared by legacy POS terminals, tablets and mobile devices, as well as cloud servers
- Triple-interface connectivity to future-proof growing businesses – maximum flexibility with three options, including built-in USB and Ethernet
- Print from web-based applications – incorporates Epson's ePOS Print Technology
- Distributed proximity-based printing – through Epson's beacon support using BLE (Bluetooth Low Energy)
- Easy printing from mobile devices – NFC (Near Field Communication) technology for easy pairing with your device
- Ultra fast transaction times – print speeds up to 350 mm/sec, plus a high-speed auto cutter
- Advanced paper-saving functions – top-margin and character-height reduction features help reduce paper usage by up to 49 percent
- Reliability you can count on – printhead life of 200 km, plus an auto cutter life of 3 million cuts
- Low total power consumption – operating power of 1.8 A and standby power of 0.5 W
| PRINTER | ||
|---|---|---|
| MODEL NAME | TM-T88VI | |
| PRINTING TECHNOLOGY | Thermal line printing | |
| PRINT RESOLUTION | 180 dpi | |
| PRINT SPEED | 350 mm/sec (max), 300mm/sec (default) | |
| PRINT FONTS | Font A (default): 12 x 24 Font B: 9 x 17 |
|
| COLUMN CAPACITY | 80mm: 42/48/56 columns 58mm model: 30/36/40 columns |
|
| CHARACTER SIZE (mm) | Font A (default): 12 x 24 Font B: 9 x 17 |
|
| CHARACTER SET | 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page). Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean |
|
| BARCODE | UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded | |
| MEDIA HANDLING | ||
| THICKNESS | 48 – 80 µm | |
| MEDIA DIMENSIONS | 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27") 58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27") |
|
| STANDARD CONNECTIVITY | Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB) Bluetooth 2.1+EDR (dedicated model) Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) or OT-WL02 (802.11 b/g/n) Beacon (using Bluetooth Low Energy): Beacon dongle (Epson-approved dongle: Laird model BT820) |
|
| PRINTER DISCOVERY | NFC (Near Field Communication), Simple AP (wireless network) | |
| COMMUNICATION PROTOCOLS | ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless) | |
| PRINTING FROM A MOBILE DEVICE | WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows | |
| GENERAL | ||
| OPERATING SYSTEMS | Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) Mac OS X® Linux (CUPS, JavaPOS) Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK) |
|
| DIMENSIONS | 145 x 195 x 148mm (W x D x H) | |
| WEIGHT | 1.6kg | |
| SECURITY | Security: WEP, WPA-PSK, WPA2-PSK/EAP WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS Port open/close setting IP address filtering |
|
| SAFETY APPROVALS | RCM: AS/NZS CISPR 32 Class A | |
| CASE COLOR | Epson Black (EBCK), Epson White (ENN8.5) | |
| RELIABILITY | ||
| MTBF | 360,000 hours | |
| MCBF | 70,000,000 lines | |
| THERMAL HEAD LIFE | 200km | |
| AUTO CUTTER LIFE | 3 million cuts | |
| WARRANTY | 48 months | |
| DATA BUFFER | ||
| RECEIVE | 45 bytes or 4KB, selectable | |
| USER-DEFINED | 12KB | |
| MACRO | 2KB | |
| NV GRAPHICS | 384KB | |
| NV USER | 1KB | |
| SOFTWARE INCLUDED | ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise ePOS-Display Server Collaboration: Server Direct Print, Status notification PHP/Sqlite3 Backup/Restore: TM Utlity (Win) |
|
| OPTIONS | Power supply cover PS-180 AC adapter one wall hanging bracket affixing tape and Connect-It interfaces |
|
| POWER | ||
| POWER SUPPLY VOLTAGE | 24VDC ± 7% | |
| POWER CONSUMPTION | Operating: 27.6W Stand-by: 0.5W |
|
| POWER SOURCE | 24VDC ± 7% | |
| CONFIG BUILDS | ||
| C31CE94241 | TM-T88VI-241 Built-in Ethernet USB, Serial, dark grey | |
| C31CE94243 | TM-T88VI-243 Built-in Ethernet USB, Parallel, dark grey | |
| C31CE94581 | TM-T88VI-581 Built-in Ethernet USB, BT iOS, dark grey | |
| OPTIONS | ||
| C32C890739 | Wireless LAN adapter 2.4GHz for TM-T88VI | |
| C32C845040 | Wall Hanging Bracket - use with TM-T88VI, TM-T88V, TM-T88IV, TM-T90, TM-L90, TM-U220 & TM-U230 | |
| C32C814596 | Power supply cover for TM-T88VI | |
| COVERPLUS SERVICE PACK (OPTIONAL) | ||
| 1YWT88VI | Coverplus 1yr Service Pack TM-T88VI | |
