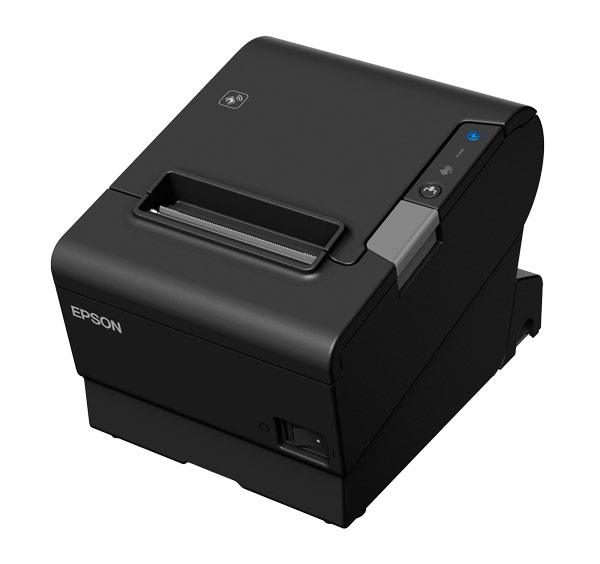

Back catalogue – Epson TM-T88VI-iHUB
The TM-T88VI-iHub adds intelligent hub functionality to Epson's new state-of-the-art receipt printer, designed to work with both traditional PC-based POS systems and increasingly popular web and tablet solutions. The range of peripheral and wireless connectivity options make it ideal for shop, bar and restaurant owners who want to develop effective new ways of interacting with customers.
KEY FEATURES & BENEFITS- Versatile – The versatile TM-T88VI-iHub offers retailers, restaurants, bars and other commercial businesses the chance to explore web and mobile POS solutions without losing the functionality of a traditional PC-based system, as both can be run in parallel. This co-existence means users can migrate at the speed they want, run both systems at once, or just stick to a traditional setup.
- High performance and low running costs – As well as flexibility, the TM-T88VI-iHub gives outstanding performance, with print speeds of up to 350mm/s, and excellent reliability. A backwards paper-feeding function helps save paper without affecting performance, reducing running costs and paper waste.
- Flexible – The TM-T88VI-iHub offers the user a wide range of connectivity options, including four USB-A connections, one of which can charge a tablet, as well as USB-B, serial and Wi-Fi. This allows the connection of a wide range of peripherals, including barcode scanners, displays and mobile devices.
- Flexible connectivity – Server Direct Print functionality allows the TM-T88VI iHub to print direct from a web server. It also supports beacons, to help mobile devices identify the nearest printer, making it ideal for POS environments with multiple printer installations, while NFC support makes it easy to pair tablets, smartphones and other mobile devices.
| PRINTER | ||
|---|---|---|
| MODEL NAME | TM-T88VI-iHUB | |
| PRINTING TECHNOLOGY | Thermal line printing | |
| PRINT RESOLUTION | 180 dpi | |
| PRINT SPEED | 350 mm/sec (max), 300mm/sec (default) | |
| PRINT FONTS | Font A (default): 12 x 24 Font B: 9 x 17 |
|
| COLUMN CAPACITY | 80mm: 42/48/56 columns 58mm model: 30/36/40 columns |
|
| CHARACTER SIZE (mm) | Font A (default): 12 x 24 Font B: 9 x 17 |
|
| CHARACTER SET | 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page). Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean |
|
| BARCODE | UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited | |
| MEDIA HANDLING | ||
| THICKNESS | 48 – 80 µm | |
| MEDIA DIMENSIONS | 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27") 58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27") |
|
| STANDARD CONNECTIVITY | Built-in USB, Serial, Ethernet (10/100Base-T/TX) Connector Type: USB Type A Connector x1, USB Type B Connector x4, RJ45 x1, DB9 Male x1, DKx1, 3 Pin Mini Din Female X1 Wireless (Requires USB wireless dongle) OT-WL05 (802.11 a/b/g/n, 2.4G/5G) or OT-WL02 (802.11 b/g/n, 2.4G) Beacon (Requires Bluetooth Low Energy dongle) Beacon dongle3 (Epson-approved dongle: Laird model BT820) |
|
| PRINTER DISCOVERY | NFC (Near Field Communication), Simple AP (wireless network) | |
| COMMUNICATION PROTOCOLS | ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless) | |
| PRINTING FROM A MOBILE DEVICE | WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows |
|
| GENERAL | ||
| OPERATING SYSTEMS | Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) Mac OS X® Linux (CUPS, JavaPOS) Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK) |
|
| DIMENSIONS | 145 x 195 x 148mm (W x D x H) | |
| WEIGHT | 1.6kg | |
| SECURITY | Security: WEP, WPA-PSK, WPA2-PSK/EAP WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS Port open/close setting IP address filtering |
|
| SAFETY APPROVALS | RCM: AS/NZS CISPR 32 Class A | |
| CASE COLOR | Epson Black (EBCK) | |
| SERVER SYSTEMS | ||
| TYPE | Type: Embedded CPU:Arm-Cortex-A5 384MHz Embedded Linux: lighttpd |
|
| RELIABILITY | ||
| MTBF | 180,000 hours | |
| MCBF | 70,000,000 lines | |
| THERMAL HEAD LIFE | 200km | |
| AUTO CUTTER LIFE | 3 million cuts | |
| WARRANTY | 48 months | |
| DATA BUFFER | ||
| RECEIVE | 45 bytes or 4KB, selectable | |
| USER-DEFINED | 12KB | |
| MACRO | 2KB | |
| NV GRAPHICS | 384KB | |
| DOWNLOAD GRAPHICS AREA | 208KB | |
| NV USER | 1KB | |
| WEB CONTENT AREA | 100MB | |
| SOFTWARE INCLUDED | ePOS-Print (XML over HTTP) ePOS-Device ePOS-Display WebConfig Server Collaboration: Server Direct Print and XML base printing PHP/Sqlite3 Backup/Restore: TM Utility (Win) |
|
| OPTIONS | Power supply cover PS-180 AC adapter one wall hanging bracket affixing tape and Connect-It interfaces |
|
| POWER | ||
| POWER SUPPLY VOLTAGE | 24VDC ± 7% | |
| POWER CONSUMPTION | Operating: 27.4W Stand-by: 1.5W |
|
| POWER SOURCE | 24VDC ± 7% | |
| CONFIG BUILDS | ||
| C31CE94791 | TM-T88VI-iHUB | |
| COVERPLUS SERVICE PACK (OPTIONAL) | ||
| 1YWT88VI-iHUB | CoverPlus 1 year Service Pack TM-T88VI-iHUB | |
Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.
