Back catalogue – TM-m30II-H

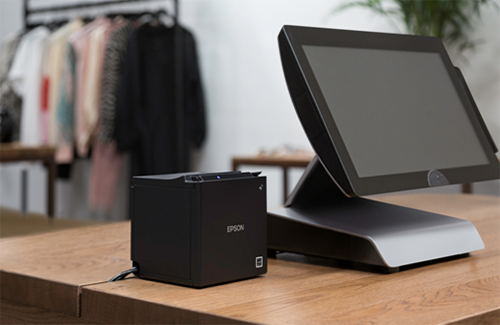

Sleek, stylish and compact – The ideal solution for tablet POS environments
The TM-m30II-H is an mPOS solution for specialist shops, boutique outlets, small restaurants, bars, coffee shops, delis and food trucks. It features enhanced functionality and ‘Sync and Charge’ for tablet device connection, that allows the user to power1 the tablet2 and print data over a single cable.
- Sleek, compact and stylish design with a very small footprint
- Flexible placement –– place horizontally or vertically
- NFC & Barcode pairing
- Advanced Hub functionality with tablet charging1
- ePOS print allows direct printing from ANY mobile device without the need to install or update drivers
- Print speed of up to 250mm/sec
- Paper width max 80mm
- High-quality receipt printouts
- Prints 1D and 2D barcodes
1 TM-m30II-H can supply 5.1V at 2.1A max (10w). It is possible some tablets may have higher power requirements to charge.
2 Supported tablets include Apple iPad and Android OS tablets for USB charging. The Tablet and USB cable shown in the product image are for illustrative purposes, and needs to be purchased separately.
Thermal Receipt Printers |
|||
| PRINTER | |||
|---|---|---|---|
| PRINT METHOD | Direct thermal line printing | ||
| PRINT RESOLUTION | 203 x 203 dpi | ||
| PRINT FONTS (True Type) | Font A: 12 x 24 dots Font B: 10 x 17 dots Font C: 9 x 17 dots |
||
| COLUMN CAPACITY | 80mm: 48 col (font A), 57 col (font B), 64 col (font C) 58mm: 35 col (font A), 42 col (font B), 46 col (font C) |
||
| CHARACTER SIZE | Font A: 1.25 x 3.00 mm Font B: 1.13 x 3.00 mm Font C: 0.88 x 2.13 mm |
||
| CHARACTER SET | 95 Alphanumeric 18 International 128x43 pages extended graphics Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar Two dimensional code: PDF417, QR Code, MaxiCode, Data Matrix, Aztec, 2D GS1 DataBar, Composite Symbology |
||
| PRINT SPEED | Max. 250mm/sec | ||
| CONNECTIVITY | Ethernet, Bluetooth, Wi-Fi (USB connectivity available on Ethernet and Bluetooth models) USB Charging# | ||
| PAPER SPECIFICATION | |||
| DIMENSIONS | 79.5 + 0.5 / -1.0mm (paper width 80mm) 57.5 + 0.5 / -1.0mm (paper width 58mm) |
||
| PAPER ROLL | Drop in | ||
| SENSORS | Paper end | ||
| POWER SPECIFICATION | |||
| POWER CONSUMPTION | Approx. 32.8W (operating) Approx. 1.5W (standby) |
||
| POWER | 100 – 230V AC, 50 to 60 Hz | ||
| POWER SUPPLY | PS-180 | ||
| RELIABILITY | |||
| MTBF | 360,000 hours | ||
| MCBF | 65 million lines | ||
| AUTOCUTTER | 1.5 million cuts | ||
| PRINTER OPTIONS | |||
| COLOUR | Epson Black, Epson Ultra White | ||
| EMI STANDARD | AS/NZS CISPR22 Class A, AS/NZS 4268 | ||
| OVERALL DIMENSIONS | 127mm (W) x 127mm (D) x 127mm (H) | ||
| WEIGHT | 1.3Kg | ||
| WHAT'S IN THE BOX | Printer, roll paper, AC adaptor, AC cable, spacer for 58mm paper, power switch cover | ||
| CONFIGURATION BUILDS | |||
| Code | Model | Connectivity* | Colour |
| C31CH92212 | TM-M30II - H212 | Built-in USB, Ethernet, Bluetooth, USB Charging (Colour Black) | Black |
| C31CH92211 | TM-M30II - H211 | Built-in USB, Ethernet, Bluetooth, USB Charging (Colour Black) | White |
| OPTIONS | |||
| C32C881017 | Wall Hanging Bracket for TM-m30 / TM-m30II | ||
| COVERPLUS | |||
| 1YWM30II | Coverplus 1yr Service Pack TM-m30II | ||
| 2YWM30II | Coverplus 2yr Service Pack TM-m30II | ||
| Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
